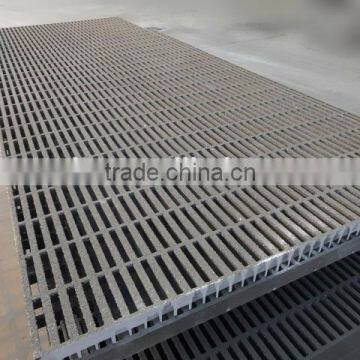

FRP Composite Plastic Water Drain Grating Cover

FOB Price

USD $10 - $70 / Piece

1 Piece(Min.Order)

Supply Ability 30000 Ton / Tons per Month
Port Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Get lowest price Inquiry Basket

You May Like

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	DRS	Model Number:	DRS-MF-RC
Application:	Construction	Surface Treatment:	Smooth	Technique:	Molded
Dimensions:	Customizable

Product Description

Product Description

FRP Composite Plastic Water Drain Grating Cover

Parameters
Type	Molded FRP Grating
Material	Fiberglass + Resin base (ORTHO,ISO,VE)+Filler(ATH,CAO)
Size	383838mm，404040mm, etc. can be customized
Color	Yellow, Orange, Blue, Green, Grey, etc. can be cutomized
Surface	concave, smooth, top covered, gritted, etc.

Properties
Light Weight, High Strength	Low Density (about 1.8), 1/4 of steel ,2/3 of aluminum.Specific strength is superior to ordinary carbon steel. Anti-creeping. Impact endurance.
Safety	Good performance of electric insulation. 10KV no voltage breakdown. No electro-magnetic behavior. No electric spark. Oxygen index≥32, Anti-fire and Pass test of ASTM-E84.
Anti-Corrosion	No rust, resistance to acid, alkali, organic dissolvent and other gas and liquid mixture. It has predominant advantages in anti-corrosion field.
Anti-skid	Different process mode on surface, concave, gritted, increase friction factor. Have good anti-skid function.
Anti-aging	Have more than 20 years effective service life under normal outdoor working condition.
Anti-fatigue	Moderate flexibility reduces the workers` pressure on legs and waist which is more comfortable
Attractive appearance & easy maintenance	have alternative and bright colors. Non-fading. Easily for clean.
Excellent economic benifits	Excellent comprehensive economic benefits

Specifications

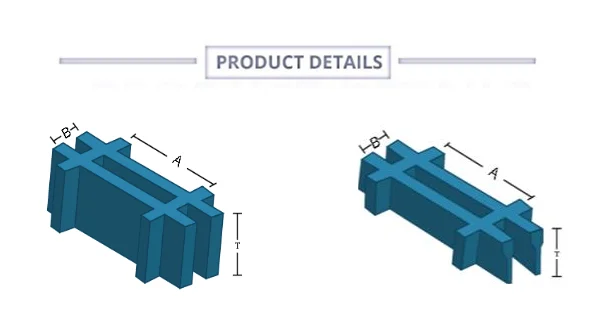

Mesh Size(mm)	Thickness (mm)	Bar Thickness(mm)	Standard Panel Size(mm)	Weight(kg/㎡)
25x50	38	11.0/9.0	1220x1835	30.7
25x50	50	12.0/9.0	1220x1835	41.8
25x100	25	7.0/5.0	1220x3660,915x3050	13.83
25x100	38 T-Shape	15.0/5.0	1220x3660,1225x4170	21
100x25	25	7.0/5.5	1007x3007,1007x4007,1500x4028	13.0
	25	9.5/8.0	1220x3660,1220x2440,915x3050	19.5
	30	7.0/5.5	1007x3007,1007x4007	15.6
	38	8.0/6.0	1220x3660	22.8
38x100	38	8.0/6.0	1226x3665,1530x4047,921x3050	16.4
25x152	38	8.0/6.5	1220x3660,1220x2440,1220x4124,921x3050	22.8
35x100	38	7.0/5.0	1407x4277,2407x2982	15
38x152	38	8.0/6.0	1220x3660,1220x2440,915x3050	15.92
38x152	38 T-Shape	15.0/8.0	1500x3660	19
60x223	40	6.3/5.0	1788x2238,1788x4250	9.0

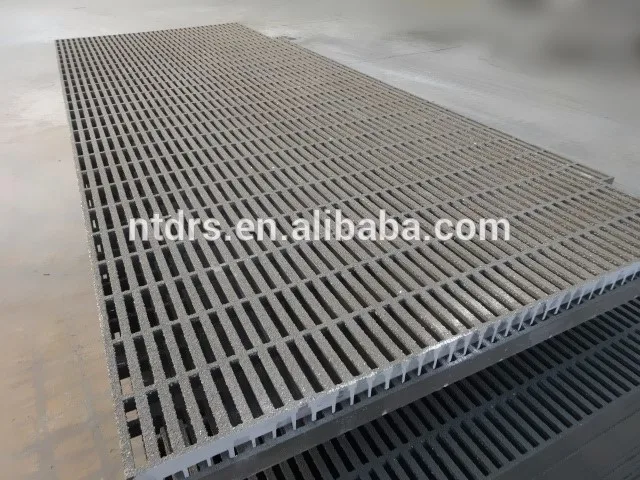

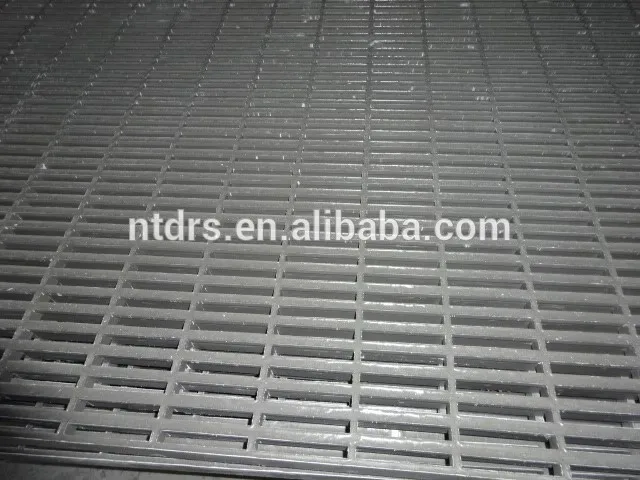

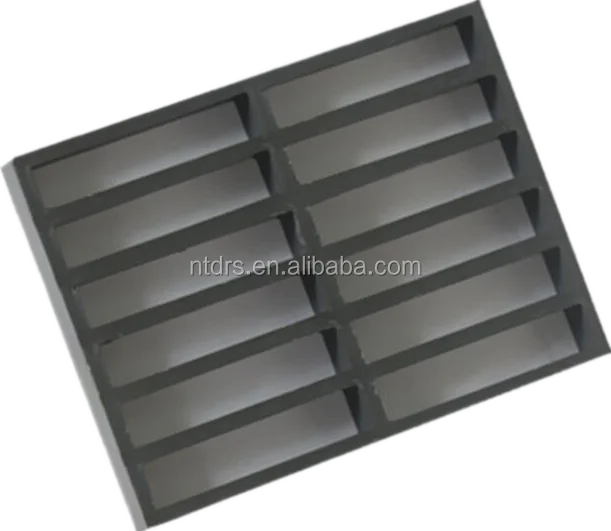

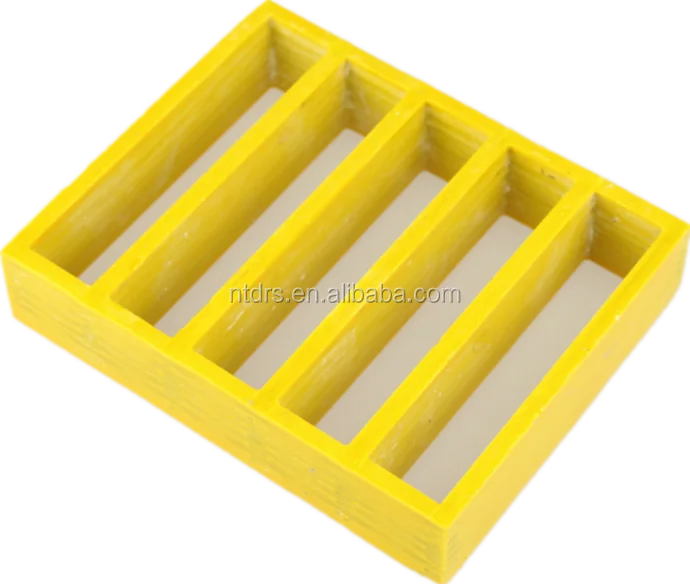

Various FRP Grating

Process Flow

From Raw Material to the Products, we have strict process and quality control, our factory has the ISO9001:2008 and CE certificate. Welcome to visit our factory!

Applications

FRP/GRP products can be applied to many industries, such as Water treatment platform, Car wash platform, Chemical plant, Oil industry, Ocean Food Processing Industry, Transportation and so on.

Packing & Delivery

Usually Package: Packed with Wooden/Iron Pallets.

Usually Lead Time: 7 days for 20" Container, 15 days for 40" Container.
