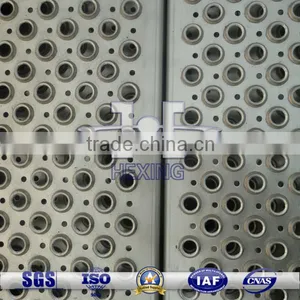

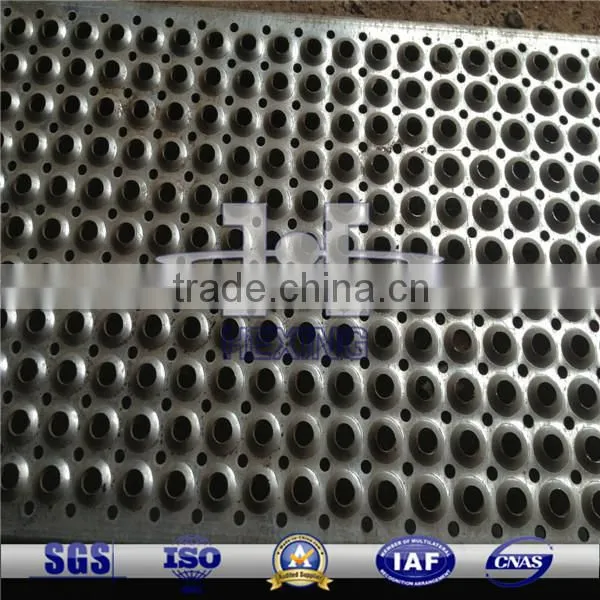

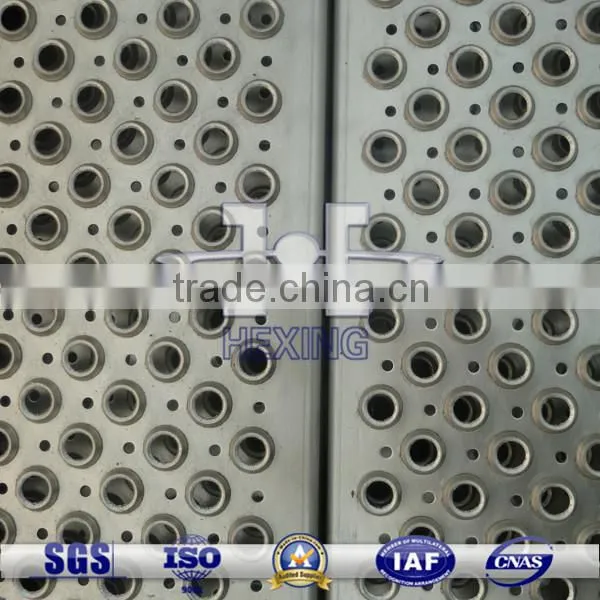

stainless steel antiskid plate/ antiskid steel floor

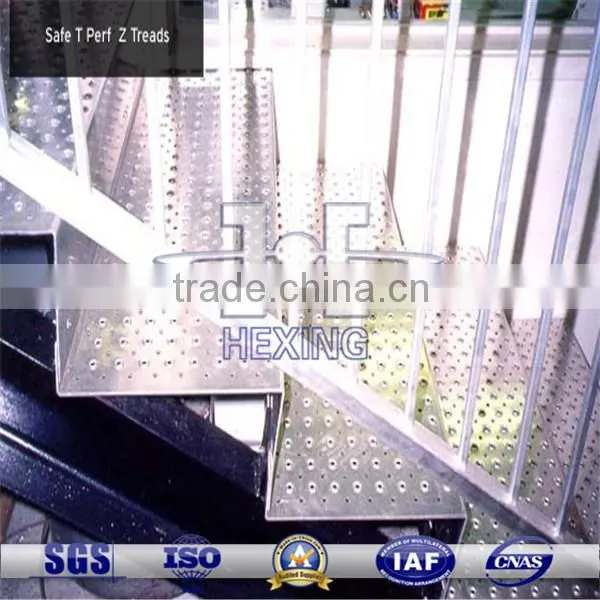

supply antiskid plate/antiskid plates with factory direct price Emboss Perforated Antiskid Plate for staires (all kinds of hole shape) ed traction buttons provide superior slip resistance in all directions and in all weather conditions.
Large debossed holes provide maximum drainage of debris and allow up to 50% free air opening depending on channel width.
Self-cleaning due to resilience of walking surface.
One-piece metal construction complete with a full 5" toe-board height on each side of the walking surface.
Lightweight design provides high strength to weight ratio.
Long life span requiring little maintenance.
Simple and economical installation as walkways are self-framing.
Adaptable to cost effective custom fabrication.
-
Materials:
• steel - 14 gauge or 12 gauge;
Z275 galvanized (H.R.P.O. or hot dipped galvanized by
special order).• aluminum - 0.080" thickness from 4-3/4" to 11-3/4",
18-3/4"; 0.100" thickness; alloy 5052 H32• stainless steel - type 304 or 316 specifications:
Shape:long square hole, square hole, round hole,triangle hole, hexagonal hole, the plum blossom hole, ichthyosisthe hole,scale hole and other different kinds of hole,The company can process the different kinds of type accroding the customer order.
Hole |
Hole |
Pitch |
Number of Hole |
Open Area |
In. No. |
In MM |
In MM |
Per Sq.Inch |
In % |
3.00 |
0.50 |
1.09 |
627.02 |
19.09 |
3.25 |
0.55 |
1.25 |
476.00 |
17.50 |
3.50 |
0.60 |
1.25 |
471.00 |
20.90 |
3.75 |
0.70 |
1.35 |
408.00 |
24.39 |
4.00 |
0.80 |
1.39 |
385.57 |
30.05 |
4.50 |
0.90 |
1.39 |
385.57 |
38.04 |
5.00 |
1.00 |
1.67 |
267.12 |
32.53 |
5.25 |
1.10 |
1.67 |
267.12 |
39.36 |
5.50 |
1.20 |
2.00 |
186.24 |
32.66 |
5.75 |
1.30 |
2.25 |
147.15 |
30.29 |
6.00 |
1.40 |
2.50 |
119.19 |
28.45 |
Perforated Metal is one of the most versatile products on the market today.
Widely used in the architectural, engineering, building, agricultural, nuclear power, food processing, and petrochemical industries.
It can be made in a range of round, square, slotted or decorative patterns.
The round hole perforation is the most popular type of perforated pattern used and is manufactured in coils or sheets.
We have a full and comprehensive finishing service
Features: It is punched to meshes, wide range of open area, economical, winding-resisting, ageing-resisting, flat and smooth surface, it is strong and wear-resisting.
Materials:low carbon steel plate, stainless steel plate, aluminum plate, Al-Mg alloy plate, etc.
Applications:Filters ,Guards ,Grills ,Baskets,Racks, Screens,Diffusers,Vents,Ornamental Uses ,Light Fixtures,Acoustical Panels,Enclosures,Sorting ,Ceiling,Strainers ,Litter Bins.
Galvanized Perforated Metal

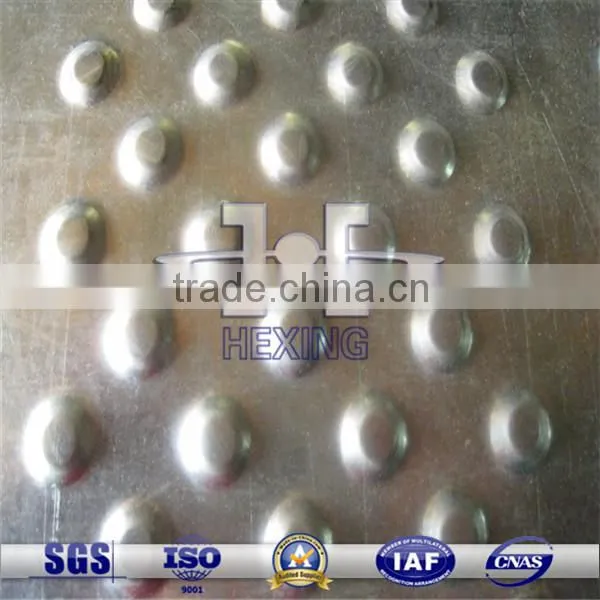

Anti-Skid Perforated Plate, Embossed perforated Metal
Besides crocodilian mouth or alligator mouth anti-skid plates, our range of Anti-Skid Perforated Plate mesh also have Embossed perforated Metal sheets and raise perforated plates with seires of patterns such as round hole,square hole,slot holes and other holes that according to you specifications drawings.
Materials: iron, zinc plates, stainless steel, aluminum, etc.
Features of anti-skid perforated plate is Light-weigh;High strength; Corrosion-resistance ; Anti-skidding;Anti-aging;Long service life;Resistance to cutting and other benefits.
Application:
Landing areas; Piers & pontoons,Disabled access ramps; Working platforms,equipment platforms; stairways pedal, covering, bridge, walkways;filter sheet and filling support in the industries.
Purpose: the production company anti-skid plate materials, including iron, aluminum, and so on, the thickness of 1mm-3mm, can be divided into the pass-flanging, crocodile-mouth, from drum-type and so on. As the board has a good anti-skid and anti-aesthetics, the industrial plant, production and transportation facilities have a wide range of uses for the passage of public places, workshops, the venue. Slippery road surface to reduce the inconvenience to protect the personal safety of staff, in order to facilitate construction. In special circumstances play an effective role in the protection.
