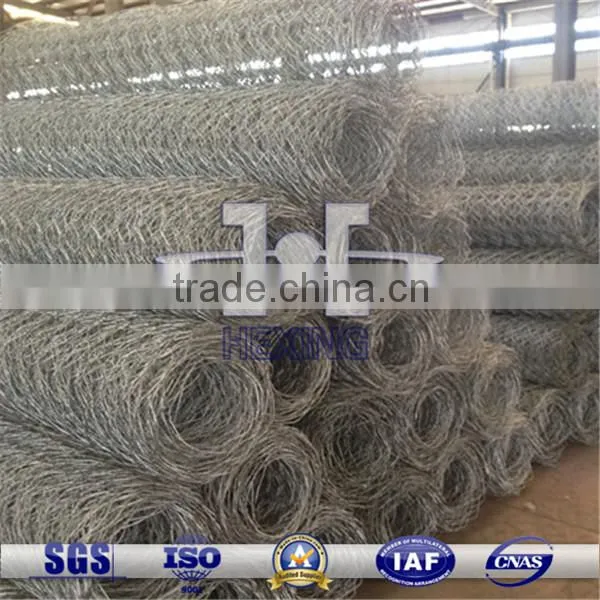

Gabion Mesh Packed in Rolls/ Sheets
1. Aperture: 60x80mm 80x100mm 80x120mm 100x120mm 120x150mm
2. Wire Diameter:
(1) Mesh wire diameter range: 2mm-4mm (2) Edge wire diameter range: 0.5mm-1mm (3) Binding wire diameter range less than mesh wire, in 2.2mm generally.
3. Wire tensile strength: not less than 38kg/m2, 380N/mm.
4. Surface Treatment:
(1) Electro galvanized, zinc coating is Max. 10g/m2, with bad performance of anti-corrosion
(2) Hot-dip galvanized Zinc coating is Max. up to 300g/m2, with better performance of anti-corrosion
(3) Galan (zinc-aluminium alloy), including zinc-5% Al mixed rare earth alloy wire and Zinc-10% Al mixed rare earth alloy wire, the best performance of anti-corrosion
(4) PVC coated, PVC coating is 1.0mm generally.
5. Diaphragm: 1 diaphragm every 1 meter is located in the direction of length of gabions.
6. Dimensions: 2mx1mx1m, 3mx1mx1m, 4mx1mx1m, 2mx1mx0.5m, 4mx1mx0.5m,offer sizes as per clients' requirements.
7. Characteristics: economy, easily to be installed, A strong performance of withstanding natural damage, corrosion resistance, good permeability, stacked to save transportation cost.
|
Mesh opening (mm) |
Wire diameter (metal wire) (mm) |
Wire diameter (PVC coated Inner and Outer wire) (mm) |
Strands
|
Size LengthxWidthxHeight (m) |
|
60X80
|
φ2.0-2.8
|
φ2.0/3.0-2.5/3.5
|
3 |
1. 2mx1mx0.5 m; 2. 2mx1mx1 m; 3. 3mx1mx1m; 4. 4mx1mx1m; 5. 4mx1mx0.5m. |
|
80X100
|
φ2.0-3.2
|
φ2.0/3.0-2.8/3.8
|
3 |
|
|
80X120
|
φ2.0-3.2
|
φ2.0/3.0-2.8/3.8
|
3 |
|
|
100X120
|
φ2.0-3.4
|
φ2.0/3.0-2.8/3.8
|
3 |
|
|
100X150
|
φ2.0-3.4
|
φ2.0/3.0-2.8/3.8
|
3 |
|
|
120X150
|
φ2.0-4.0
|
φ2.0/3.0-3.0/4.0
|
3 |
Gabion Mesh Specification | ||||||
Nominal Dimensions |
Number of Cells |
Capacity (m³) |
Units/Bundle |
|||
|
Length (m) |
Width (m) |
Height (m) |
Zinc |
PVC |
||
1,0 |
1,0 |
1,0 |
1 |
1,0 |
74 |
64 |
1,5 |
1,0 |
1,0 |
1 |
1,5 |
74 |
62 |
2,0 |
1,0 |
1,0 |
2 |
2,0 |
44 |
38 |
3,0 |
1,0 |
1,0 |
3 |
3,0 |
32 |
26 |
4,0 |
1,0 |
1,0 |
4 |
4,0 |
24 |
20 |
2,0 |
0,5 |
0,5 |
2 |
0,5 |
100 |
80 |
2,0 |
1,0 |
0,5 |
2 |
1,0 |
60 |
50 |
3,0 |
1,0 |
0,5 |
3 |
1,5 |
40 |
34 |
4,0 |
1,0 |
0,5 |
4 |
2,0 |
32 |
30 |
Binding Wire: Sufficient wire is supplied for lacing and bracing operations. | ||||||
Tolerances: Height, Width : ±5%; Length : ±10% | ||||||
