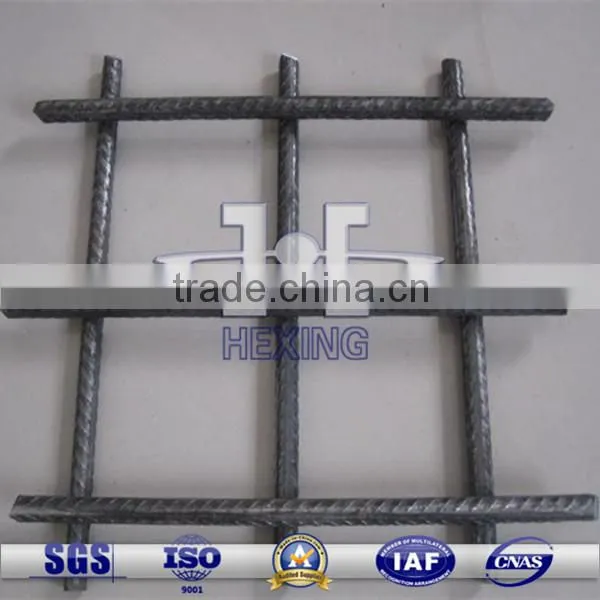

Hot Dipped Galvanized Ribbed Steel Reinforced Welded Mesh

Specifications

Reinforced Welded Mesh
Wire diameter: 5mm-16mm
Opening: 75mm-300mm
Panel length: 100cm-1200cm
Panel width: 100 -340cm



Hot Dipped Galvanized Ribbed Steel Reinforced Welded Mesh



We offer heavy type welded wire mesh panels including reinforced welded wire mesh.
Type: Ribbed, smooth surface; hot dipped galvanized, PVC coated
Wire diameter: for reinforced welded mesh panels ranges from 5mm to 16mm.
Opening: 75mm to 300mm (400mm). Used in sprayed concrete, steel bar spacing is between 150mm and 300mm, adopt to the combination of 150mm×150mm, 200mm×200mm, 200mm×250mm, 250mm×300mm, 300mm×300mm. Steel bar spacing should not be less than 30 diameter.
Panel length: 100cm to 1200cm.
Panel width: 100cm to 340cm.

Applications: Reinforced welded mesh is widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.



Product Category
1. Straight, Ribbed, Cold Rolled Steel Bar



Grade	Steel Bar Diam(mm)	Specified Length (m)	Unspecified Length (m)
CRB550	4,5,5.5,6,7,8,9,10,10.5,11,12	6,9,12	1-12
CRB650	6,8,10,12	6,9,12	1-12

2. Reinforced Welded Mesh (spacings below can be randomly combined, steel grade: CRB550 HPB235 HRB335 HRB400)



Steel Bar Diam(mm)	Longitudinal Reinforcement Spacing (mm)	Transverse Reinforcement Spacing (mm)
5-16	100,125,150,175,200	50-300(400)
