4.0 MP H.264/H.265 HD 1520P PTZ IP Camera POE PTZ Fiexed Lens 12mm

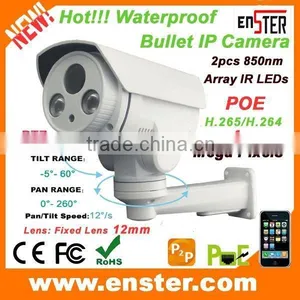

4.0 MP H.264/H.265 HD 1520P PTZ IP Camera POE PTZ Fiexed Lens 12mm thumbnail-1
4.0 MP H.264/H.265 HD 1520P PTZ IP Camera POE PTZ Fiexed Lens 12mm thumbnail-2
4.0 MP H.264/H.265 HD 1520P PTZ IP Camera POE PTZ Fiexed Lens 12mm photo-1
4.0 MP H.264/H.265 HD 1520P PTZ IP Camera POE PTZ Fiexed Lens 12mm photo-2
US$ 78 - 80 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Enster, ENSTER
Model Number:
EST-IPH5814-F
Contact Supplier Request Quote Chat Now
Shenzhen Enster Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Enster, ENSTER
Model Number EST-IPH5814-F
Type IP Camera
Style Bullet Camera
Sensor CMOS
Technology Other, Pan / Tilt / Zoom, Pan / Tilt / Zoom
Special Features Other, Waterproof / Weatherproof, Waterproof / Weatherproof

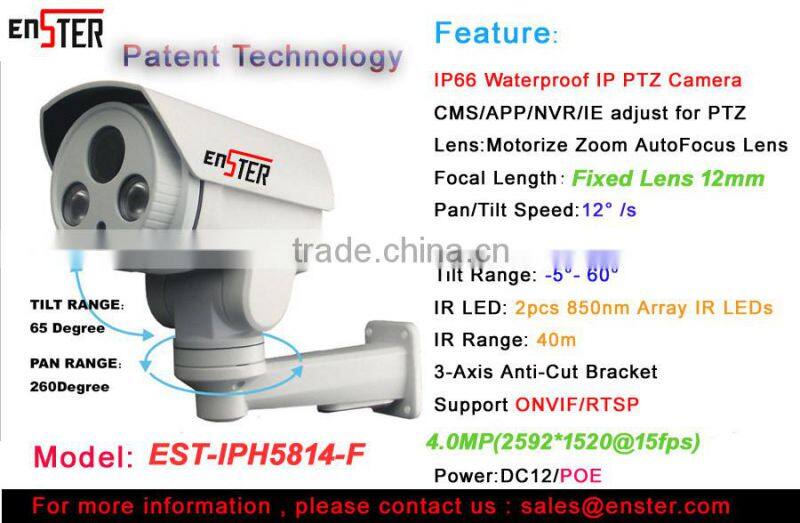

Feature:



* IP66 Waterproof Bullet Camera
* Lens:Fixed Lens12mm
* Pan Range: 0°- 260°

* Tilt Range: -5°- 60°

* Pan/Tilt Speed:12° /s
* IR LED: 2pcs 850nm Array IR LEDs
* IR Range: 40m
* 3-Axial Anti-Cut Bracket
* CMS/APP/NVR/IE adjust for Pan/Tilt/Zoom



Specifications:



Model No.

EST-IPH5814-F

Camera Type

                                                                            IP Camera

    System

Embedded RTOS design

















Camera



Effective Pixels

4.0 Mega Pixels

Main stream: 2592*1520



Frames Rates

PAL:25fps(2592*1520)

NTSC:30fps(2592*1520)/

Image Sensor

1/3" OV CMOS sensor

DSP

Dual core   32-bit DSP

(Hi3516)

Min. Illumination

Color   0.01Lux/F1.2

B/W   0.001 Lux/F1.2

Adjust Parameters

DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.





Video

Compression

H.264/H.265 Main profile

Stream

support dual stream,AVI format

Bit Rate

support 0.1M ~8Mpbs bit rate adjustable

Frame Rates

support 1~30fps adjust



Audio

Input and output

1ch   input( micphone),1ch   output( Speaker&micphone) Optional

Compression

G.711 compression,support two-way audio intercom,support audio and video synchronized   output

Alarm

Types

Motion Detection, Video Blind , Video Loss









Network

WEB Browser

Support   WEB   remote   config( IE, Safari, Google Chrome, Firefox etc.)

Smart Phone

mobile remote Monitoring ( iPhone , Android, Windows Mobile, BlackBerry, Symbian )

CMS Software

Uniform CMS Software(multiple   devices   management   system)

Cloud P2P

,MYEYE platform and other program,Offer SDK

Network

1   *   RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP

ONVIF

Support (ONVIF 2.0)

POE

Support(optional)

WIFI

N/A





















General

Language

20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai,   S-Chinese, T-Chinese and Turkish

IR Cut Filter

Set of double light switch IR-CUT filter

Lens Mount

Motorize Zoom AutoFocus Lens 2.8 -12mm(2MP)

Infrared Luminary

2 pcs Array IR Leds

Infrared Wavelength

850 nm

Illuminate Distance

More than   40 M

Waterproof Criterion

IP 66

I/O Connector

1*DC Connector ,1* RJ45(10/100M Network),1*BNC connector( CVBS,Option )

Supplied Voltage

DC12V/PoE(802.3af/820.3at)

Power Consumption

IR On: 600mA max., IR Off: Less than 200mA

Working Enviroment

-10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )

Dimensions

200*100*85mm

Weight

1.4 kg

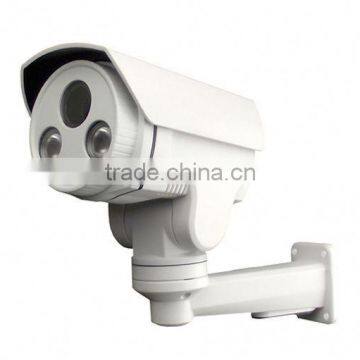

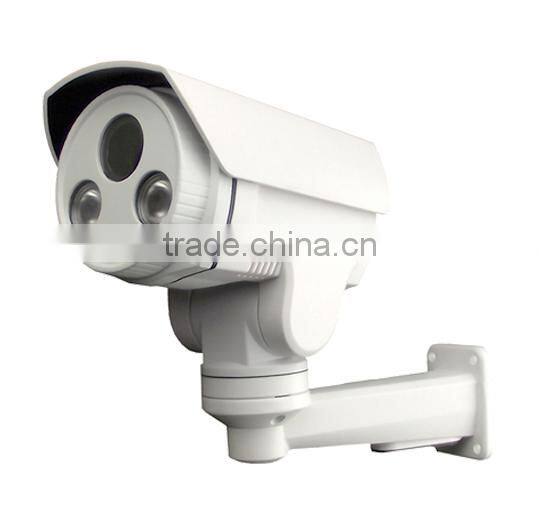

Production Picture Show:

4.0 MP H.264/H.265 HD 1520P PTZ IP Camera POE PTZ Fiexed Lens 12mm4.0 MP H.264/H.265 HD 1520P PTZ IP Camera POE PTZ Fiexed Lens 12mm

About us:

4.0 MP H.264/H.265 HD 1520P PTZ IP Camera POE PTZ Fiexed Lens 12mm



Shipping:

4.0 MP H.264/H.265 HD 1520P PTZ IP Camera POE PTZ Fiexed Lens 12mm



 We will provide our best products and service to you no matter where you are.



 Special Service:



Quick Professional Reply !

 Your inquiry will be replyed  within 24 hours(Except weekends or holiday in China)

OEM&ODM

  Any of your idea about camera products,we can help you make it true with our mutual efforts

Delivery Time

  3-7 working days,7-15 working days for bulk quantity.

  We are all ready to serve you.

MOQ

 Lower MOQ,and we strongly suggest our partners could test  our sample firstly.

 Sample order is welcome

Warranty

 2 years warranty & life long technical support.All products    have been passed through strict quality control.

Payment

 We accept Paypal,Western Union or T/T before production.

 If buyers have any question about payment, please contact us at any time you like.
