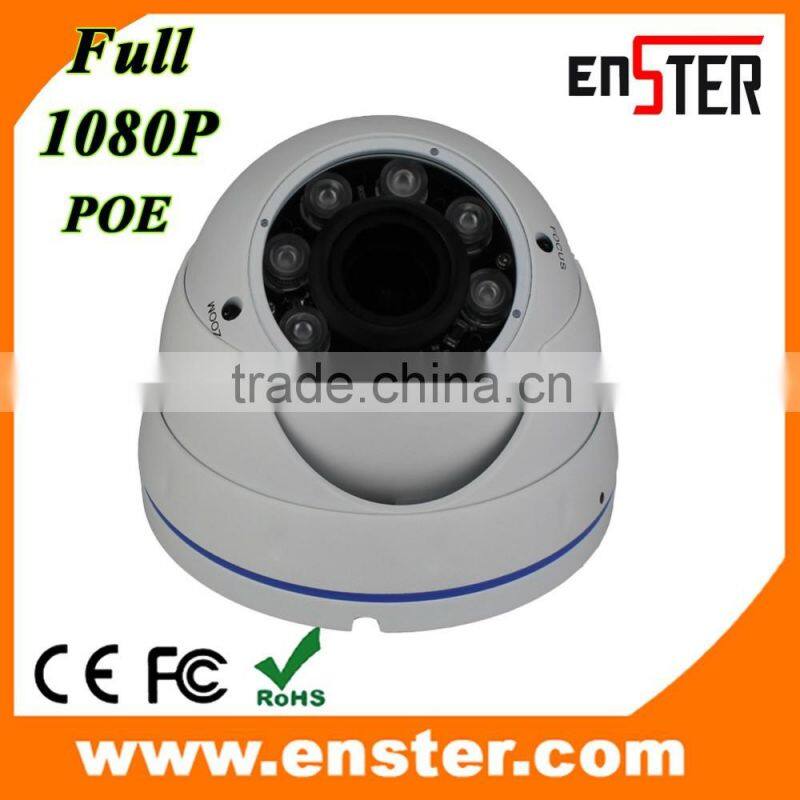

6pcs Array IR leds Onvif IP Dome Camera
Feature:
Waterproof IP Dome Camera
Externally adjust for Zoom&Focus
Frame Rate:NTSC:30fps PAL:25fps
Lens:Varifocal lens
IR Led: 6pcs Array IR LED
IR Range: 25m
Power: DC12V.
Support more than 20 languages
& Mobile Phone View&Free CMS
& DDNS&Motion Detection
Specification
Model No. |
NST-IPH3472 |
|
Camera Type |
IP Camera |
|
System |
Embedded RTOS design |
|
Camera |
Effective Pixels |
2.0 Mega Pixels |
Main stream:1920*1080;1280*720 | ||
Sub stream:704*576 | ||
Frames Rates |
PAL:25fps(1920*1080)/(1280*720) |
|
NTSC:30fps(1920*1080)/(1280*720) | ||
Image Sensor |
1/2.8" SONY Exmor IMX122 CMOS Sensor |
|
2.48 megapixel resolution (2000H*1241V) | ||
DSP |
Dual core 32-bit DSP |
|
(Hi3516) | ||
Min. Illumination |
Color 0.01Lux/F1.2 |
|
B/W 0.001 Lux/F1.2 | ||
Adjust Parameters |
DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc. |
|
Video |
Compression |
H.264 Main profile |
Stream |
support dual stream,AVI format |
|
Bit Rate |
support 0.1M ~8Mpbs bit rate adjustable |
|
Frame Rates |
support 1~30fps adjust |
|
Audio |
Input and output |
1ch input( micphone),1ch output( Speaker&micphone) Optional |
Compression |
G.711 compression,support two-way audio intercom,support audio and video synchronized output |
|
Alarm |
Types |
Motion Detection, Video Blind , Video Loss |
Network |
WEB Browser |
Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.) |
Smart Phone |
mobile remote Monitoring (iPhone,Android,Windows Mobile,BlackBerry,Symbian) |
|
CMS Software |
Uniform CMS Software(multiple devices management system) |
|
Cloud P2P |
,MYEYE platform and other program,Offer SDK |
|
Network |
1 * RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP |
|
ONVIF |
Support (ONVIF 2.0) |
|
POE |
Support(optional) |
|
WIFI |
NA |
|
General |
Language |
20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish |
IR Cut Filter |
Set of double light switch IR-CUT filter |
|
Lens Mount |
Varifocal Lens 2.8 -12mm(2MP) |
|
Infrared Luminary |
36 pieces IR-LED |
|
Infrared Wavelength |
850 nm |
|
Illuminate Distance |
More than 25M |
|
Waterproof Criterion |
IP 66 |
|
I/O Connector |
1*DC Connector ,1* RJ45(10/100M Network),1*BNC connector( CVBS,Option ) |
|
Supplied Voltage |
DC12V/PoE(802.3af/820.3at) |
|
Power Consumption |
IR On: 600mA max., IR Off: Less than 200mA |
|
Working Enviroment |
-10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° ) |
|
Dimensions |
110*85mm |
|
Weight |
0.8kg |
|

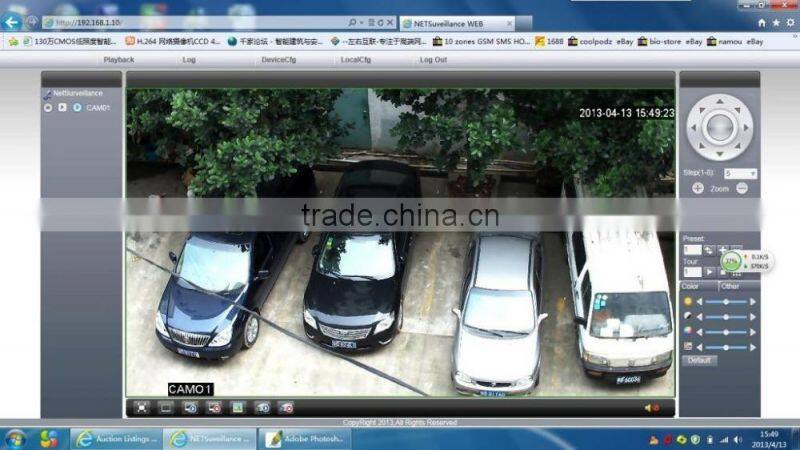

IE View

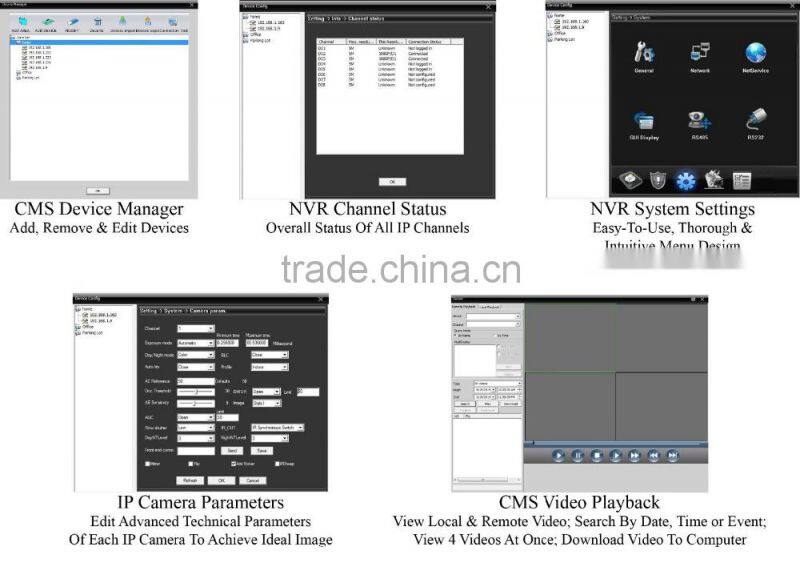

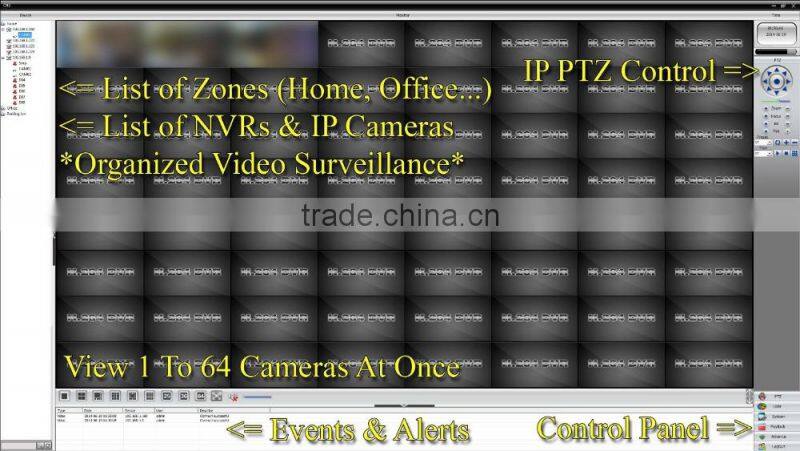

CMS
Mobile View
Specification
Our Service
1.Any inquiries will be replied within 24 hours
2.Professional manufacturer. Welcome to visit our website: www.enster.com
3.OEM/ODM available:
1).Silk print logo on the camera;
2). Customized camera housing;
3).Customized Color box
4).Any your idea on camera we can help you to design and put it into production
4.High quality, fashion designs ,reasonable & competitive price, fast lead time .
5.After-Sale Service:
1). All products will have been strictly Quality Checked in house before packing
2). All products will be well packed before shipping.
3).All our products have 2 year warranty,And we sure the product will be free from maintenance within warranty period.
6.Faster delivery:
Sample order in stock ,and 3--7days for bulk production
7.Payment:
You can pay for the order via :T/T,Western Union ,Paypal & MoneyGram .
8.Shipping
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS , China Air Post.
You also can choose your own shipping forwarder.
Shpping Way
