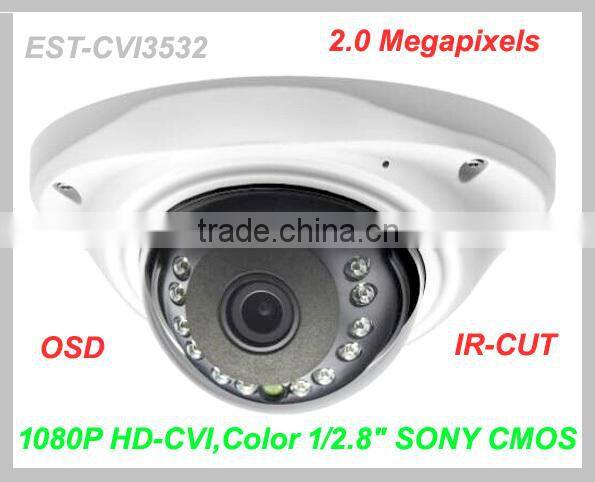

Hot!!! High Definition 1080P IP66 Housing VandalProof HD-CVI Dome Camera

Model No.

I EST-CVI3532

 EST-CVI3532E

EST-CVI3531

Camera Type

HD CVI Camera

Effective Pixels

2.0 Mega Pixels
1080P(25/30fps)

2.0 Megapixels
1080P(25/30fps)

1.0 Mega Pixels
720P(25/30fps)

Image Sensor

1/2.8" SONY Exmor CMOS Sensor

1/3" CMOS Sensor

1/3" CMOS Sensor

DSP

dahua 9801

dahua 9801

dahua 9801

Min. Illumination

Color   0.01Lux/F1.2

Color   0.01Lux/F1.2

Color   0.01Lux/F1.2

  B/W   0.001 Lux/F1.2

  B/W   0.001 Lux/F1.2

  B/W   0.01 Lux/F1.2

Signal System

PAL/NTSC or CVI

On Screen Display

Yes, DVRControl

Yes, Cable Control

N/A

OSD Function

Manual/DC Lens, Shutter/AGC/WB, Pict Adjust,Mirror, Day/Night ,DNR,BLC/HLC,Motion Detect, Privacy Zone

IR Cut Filter

IR LED synchronous switching double filter

Lens Mount

Varicoal Lens 2.8-12mm

Infrared Luminary

36  pieces IR-LEDs

Infrared Wavelength

850 nm

Illuminate Distance

More than   25 M

Waterproof Criterion

IP 66

I/O Connector

1*DC Power Connector ,1* BNC Video Connector

Supplied Voltage

DC12V

Power Consumption

IR On: 600mA max., IR Off: Less than 200mA

Working Environment

-10°C~+60°C, 10%~90% ( Built in Heater being optional added for environment lower than -20° )

Dimensions

200*100*85mm

Weight

0.9 kg
