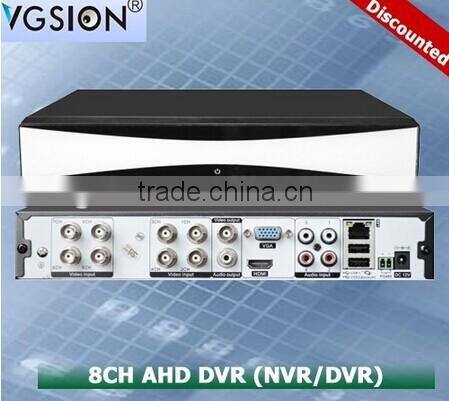

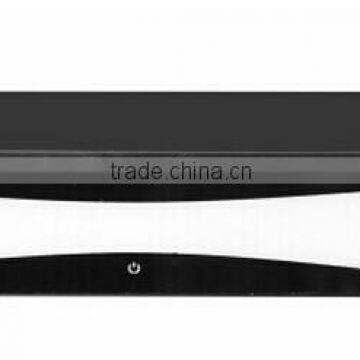

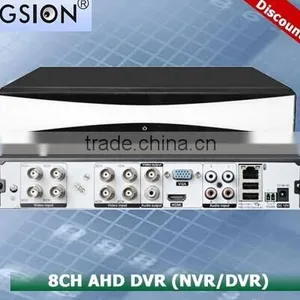

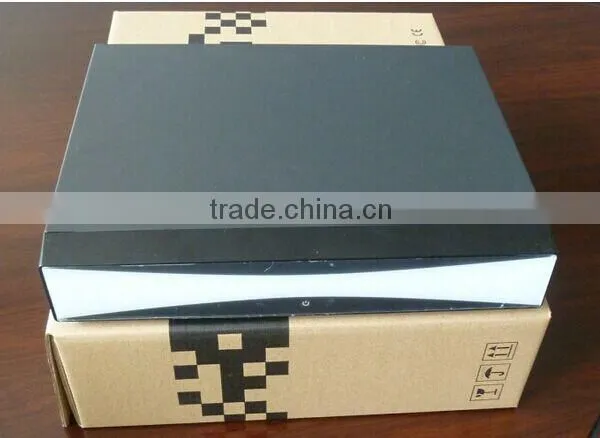

8 channel 720p AHD DVR /NVR/DVR
Outstanding features:AHD= Economical= Great Compatibility
1. Work with AHD Camera perfectly
2. Work with Common 960H Analog Camera perfectly
3. Work with IP Camera perfectly
Technical data
| Video compression | H.264 |
| Analog video input | 8PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω) |
| Audio compression | ADPCM |
| Audio input | 4PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ) |
| Two-way audio input | 1PCS RCA Port( line level , impedance : 1kΩ) |
| Video/Audio output | |
| Multi-mode switch | AHD: 8CH*720P |
| Analog: 8CH*960H | |
| AHD+Analog:4CH*720P+4CH*960H | |
| IPC: 8CH*720P | |
| HDMI/VGA output | 1024x768,1280*720,1280x1024 |
| CVBS output | 1PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω) |
| Encording resolution | D1/CIF/720P/960P |
| Frame rate | NTSC:1~30FPS/S;PAL:1~25FPS/S |
| Video bit rate | 256KB/384KB/512KB/640KB/768KB/1MB/1.5MB/2MB/2.5MB/3MB/4MB/5MB/6MB/8MB |
| Audio output | 1PCS RCA Port( line level , impedance : 1kΩ) |
| Audio bit rate | 16kpbs |
| Dual-stream | YES |
| Stream type | combine streams/ video stream |
| Playback resolution | 4CH AHD 720P@100fps |
| 8ch D1@200/240fps | |
| Synchronous palyback | D1/CIF/720P/960P |
| Hard disk | |
| SATA | 1*SATA |
| eSATA | No |
| Capacity | each port support max 4TB HDD |
| External interface | |
| Network interface | 1PCS RJ45 10M / 100M adaptive Ethernet port |
| Serial interface | 1PCS RS485 |
| USB interface | 2*USB2.0 |
| Alarm in/out | NO |
| General | |
| Power supply | DC12V |
| Comsumption | ≤18W |
| Working temperature | -10℃--+55℃ |
| Working humidity | 10%--90% |
| Chassis | 0.8U |
| Dmensions(W×D×H) | 255*215*45mm |
| Weight | 0.86kg |
Outstanding Function
H.264 Compress format: Make data bandwidth lower but better image quality

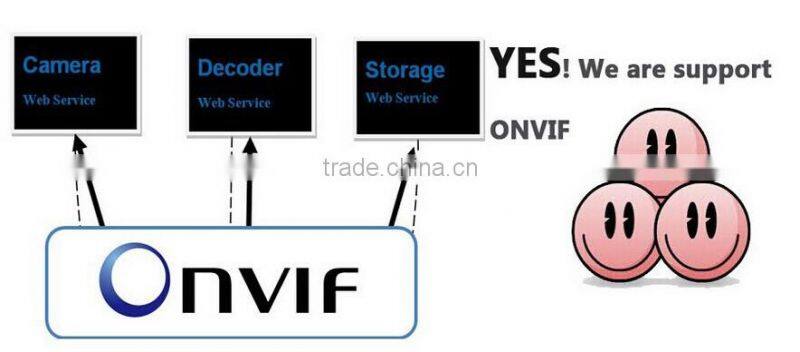

ONVIF: Support
1. You can choose payment ways for T/T, West Union, Paypal;
2. Sample: 3-7 working days, Volume Order: 7-15 working days.
If have stock we can delivery it to you within 3 days;
3.We support to ship via Sea, Air, Express(DHL, UPS, FedEx, TNT, EMS).when the goods delivery,we will track it for you until arrive you hand.
Order
We could offer OEM and ODM services for our clients.Customer LOGO can be stuck / printed on goods color box upon confirmed.
Warranty
We will replace a new item within 3 months. We will repair well within 2 years. We provide lifetime maintenance.
After-sales service
A. All goods will be inspected and tested before shipped.
B. Customers satisfaction is most important to us.If you have any problem or questions regarding our transaction.Please contact us by TradeManager or email.It will be responded with 24hours.
C. We will provide best pre-sale and after-sale service.
VG (Shenzhen) High Tech Ltd( Hereafter called VGSION”) is a surveillance equipment manufacturer, exporter and importer who have over 8 years experience in surveillance solution with export and import license. Right now we have two brands “VGSION” and “Beable”.
Q1: How to order ?
A1: Tell us which models, Quantities you want to order,then We will make PI for you.When you confirm the PI , we will arrange the production ASAP when payment received and Will take photos for you to confirm and deliver the goods soon.At last we will Send the tracking number to you and track the goods until you get it.
Q2: Are you a factory or trading company?
A2: We are a factory ,anytime welcome you visit.
Q3: Does it support ONVIF?
A3:Please rest assured that our CCTV Product support Onvif, and welcome to contact us through Trade Manager,we will recommend according to your requirement. If during closing time or weekend,Please send mail to us,we will response within 24 hours.
