Chemical powder pulverizer1 CE High Effective Pulverizer
2 Spindle Rotating Speed 3400-4500 rpm
3 Capacity 60-500kg/h
Chemical powder pulverizer grinding machine
1. Description:
Main Application:
The macine is widely applied for the material crushing by the industries of pharmaceutics, chemical and foodstuff, etc.
Characteristics:
he crushing chamber is equipped with the wind wheel type high-speed rotating cutters, so that the airflow in the chamber is strong enough to eliminate any heat in the chamber. It possesses the merits of smooth operating, dismantling and assembling, low noise and good crushing efficiency.
Working Method:
The machine uses the wind wheel type high-speed rotating cuters and the fixed cutters to crush, mill and shear raw material, which is accompanied by strong airflow inside of the chamber to bring out the heat with the finished products through the screen. The size of granules can be achieved by changing of the screen. The dust will be collected and recycled via cloth bag or filter of the dust box.
2. Products: This line can be used to mill sugar, spice etc.
3. Capacity: 60--800kg/h
4. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
5. Machines Materials: All the machines are made by stainless steel
6. Technical Parameter
Model |
150B |
250B |
350B |
Capacitykg/h |
20-80 |
30-200 |
50-300 |
Size of input granules (mm |
<10 |
<10 |
<10 |
Size of output granules (mm) |
12-120 |
12-120 |
12-120 |
Crushing powe (kw) |
2.2 |
5.5 |
7.5 |
Dust absorption power (kw) |
1.5 |
1.5 |
1.5 |
Speed of principal axis (r/min) |
3000 |
2900 |
2900 |
Weight (kg) |
250 |
350 |
420 |
Overall size L×W×H(mm) |
1280×600×1450 |
1280×600×1550 |
1300×600×1650 |

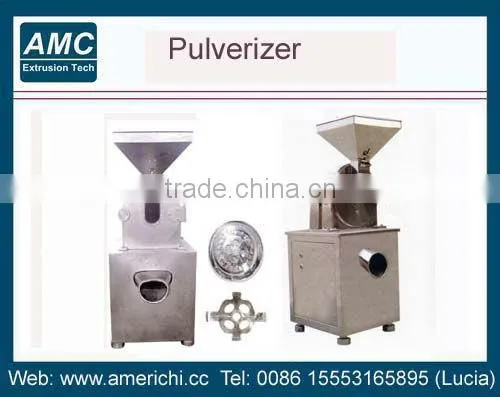

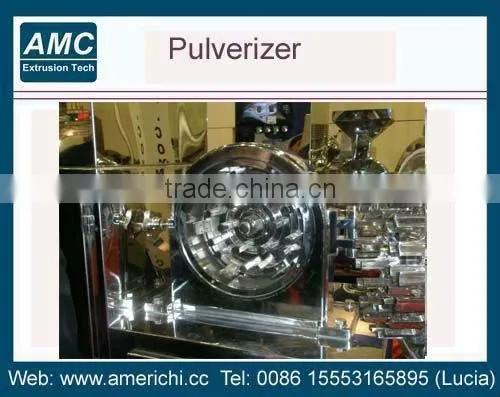

7. Pictures:
