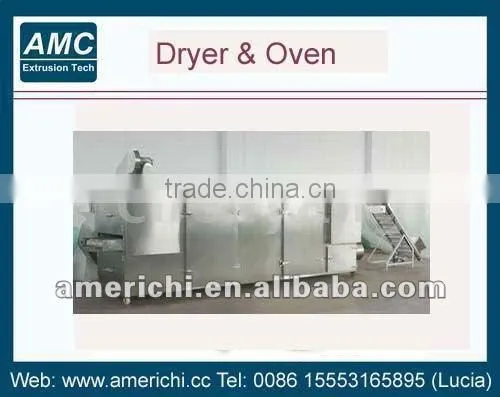

Electricity Oven
1. Description:
Electricity oven compact in frame, facilitated in operation, low occupation of space, light in weight, steady in performance, large drying area, and more heating efficient. The belt and the heat preservation use the stainless steel. Asbestos plates are available for avoiding losing heat. A fan with 3.0KW is on the top of oven to removing moisture.
A frequency converter can adjust the drying time for the product speed.
Variable speed of the belt is available. Electricity heating is heated by infrared heating pipe
by electricity.
There is a convenient set for spraying lubricating oil to the bearings.
For using gas or diesel oil as energy resource, we use International Brand Burner, BALTUR S.P.A.
It is in good quality and safe.
2. Products: This machine can be used to produce soya nuggets, cereal, snacks
3. Capacity: 240kg/h, 500kg/h, 1ton/h
4. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
5. Machines materials: All the machines are made by stainless steel
8. Technical Parameters
Driver (kw) |
0.55 |
Width for belt (mm): |
98mm |
Heating power (kw) |
27.0 |
Belt type |
S weaving |
Liquefied petroleum gas Consumption |
4---6 m3/h |
Effective length (mm): |
25000 |
Diesel oil consumption |
6---8L/h |
Speed for belt: |
300mm—4000mm |
Driver for removing moisture |
3.0kw |
Time for covering belt: |
7—75minutes |
Insulation |
Asbestos plate |
Range for Temperature |
80°C--180°C |

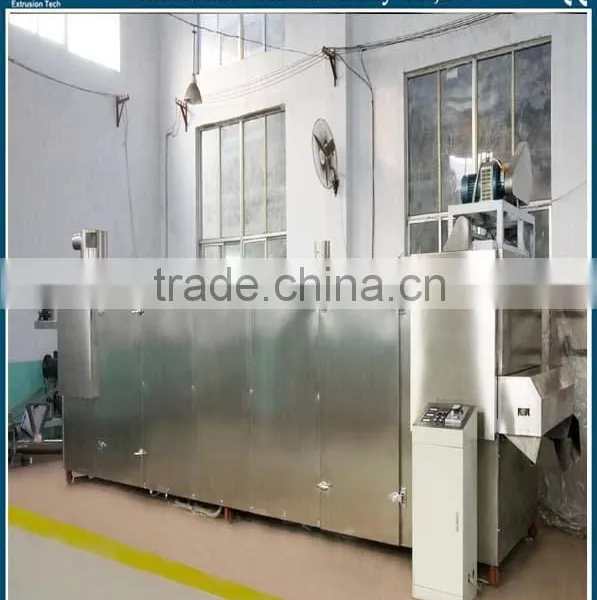

9. Sample pictures
