Waterproof Portable GPS Tracker

Waterproof Portable GPS Tracker thumbnail-1
Waterproof Portable GPS Tracker thumbnail-2
Waterproof Portable GPS Tracker thumbnail-3
Waterproof Portable GPS Tracker thumbnail-4
Waterproof Portable GPS Tracker photo-1
Waterproof Portable GPS Tracker photo-2
Waterproof Portable GPS Tracker photo-3
Waterproof Portable GPS Tracker photo-4
US$ 32 - 39 MOQ: 500 Sets
Key Specifications
Get Latest Price
Type:
Other, for GPS Tracking system
Use:
Automotive
Screen Size:
Other, 2.4 inch
Contact Supplier Request Quote Chat Now
Xiamen Jiayin Technical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, for GPS Tracking system
Use Automotive
Screen Size Other, 2.4 inch
Function Other, for Car camera with Radar detector, for GPS Tracking system
Place of Origin Fujian, China
Brand Name CONQUEROR

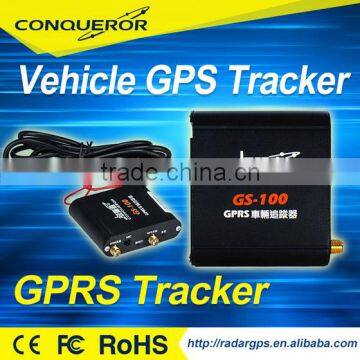

Model Number GS100 for GPS Tracking system
Warranty 1 Years



GS100 for GPS tracking system Product feature:
• Support alarm, have 3 preset phone number
• Support single location and continuous tracking
• Support GSM 850/900/1800/1900 MHz. Works worldwide!

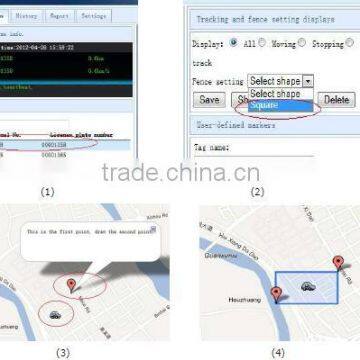

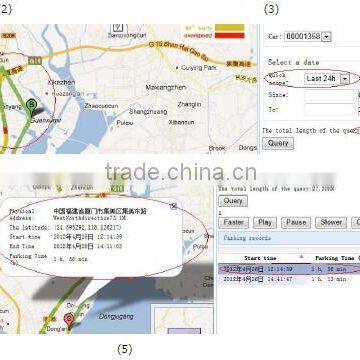

• Support check location and real-time and historical trajectory by SMS or Internet
• Support cut-off electricity and oil function and recovery command
• Reports can be sent as an automated email to an address determined by you.

• View a latest 3 month’s worth of driver activity information, including the number,

duration and type of journeys, as well as the distance traveled and any idle time that occurred.

 Product Specifications
Hardware GSM 850/900/1800/1900 MHz
GPRS Class 12, TCP/IP build in GSM Module
GPS 1.57542GHz±1.023MHz
Channels 51
Tracking sensitivity -159dBm
Capturing sensitivity -144dBm
Locating time Hot start<2sec(open sky)
Warns start<15sec
Cool start<36sec (open sky)
Build in antenna GSM antenna, GPS antenna
LED indicator 2 LED indicators: GPS/GSM
Power 12-24 DC from vehicle power supply
Size 63 L×53.5(w)×17(H)mm
Application sensitivity Working temperature -25℃ to +80℃
Storage temperature -30℃ to +85℃
Working humility  45% to 80% RH
Storage humility 30% to 90% RH
GPS antenna specification
GPS
antenna
Hardware		 Frequency 1575.42MHz
Bandwidth >5MHz
Beamwidth >120 deg
Supply voltage 3.3V
Polarization RHCP or Linear
Gain: Passive :0dBi minimum
Active:15dB
Impedance : 50fi
VSWR: C2
Noise figure: <3
Frequency GSM850: 824MHz to 894MHz
EGSM900: 880MHz to 960MHz
DCS1800: 1710MHz to 1885MHz
PCS1900: 1850MHz to 1990MHz;
Direction Omni–direction
Gain: Passive: >0dBi
Impedance: 50fi
VSWR: <4
Efficient GSM850: >40%;
EGSM900: >40%;
DCS1800: >30%;
PCS1900: >30%;



View more , you will get more >>>
