Fluorescent Light Fixture t8 4x20w

FOB Price

US$ 13 - 25 / Piece

1 Piece(Min. Order)

Port Shanghai Ningbo Guangzhou Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Light Source	Fluorescent	Input Voltage(V)	110-240V
Lamp Power(W)	36	Lamp Luminous Flux(lm)	2880
Lamp Luminous Efficiency(lm/w)	80	Color Temperature(CCT)	Cool White
Working Temperature(℃)	-40, 50	Working Lifetime(Hour)	10000
Lamp Body Material	Aluminum	IP Rating	IP65
Certification	CCC, CE, CQC, GS	Base Type	G13
Place of Origin	Jiangsu, China	Brand Name	SREGM or OEM
Model Number	YZ/SDD fluorescent light fixture t8 4x20w

Product Description

Specifications

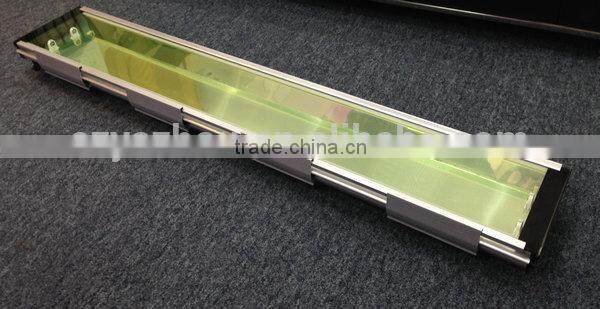

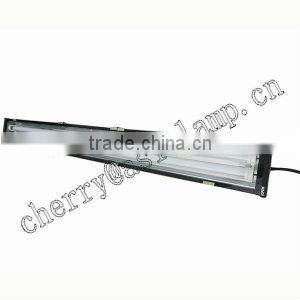

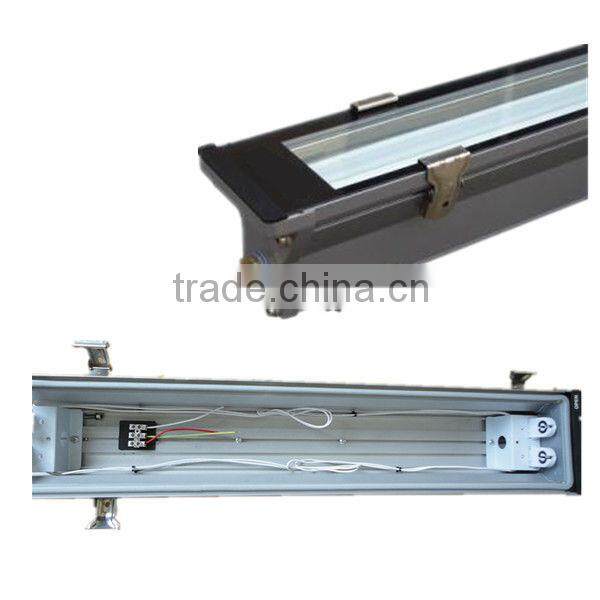

fluorescent light fixture t8 4x20w
5MM tempered glass

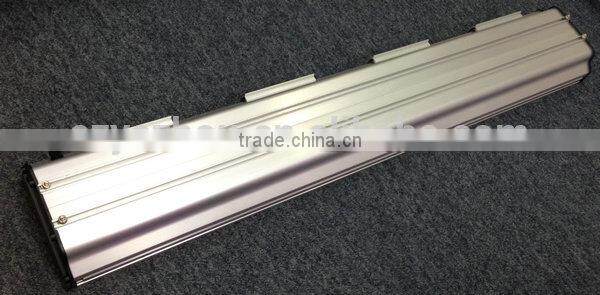

aluminum housing
mirror reflector
led or fluorescent tubes

Aluminum Lighting Fixture

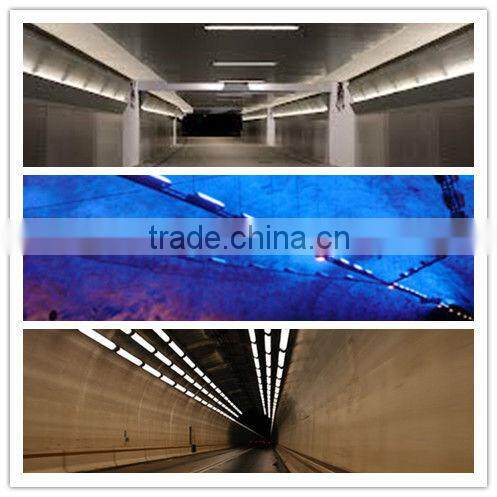

Applicaton

Highway tunnel
subway
city railway
underground parking
and other places of lighting required.

Features

Tunnel luminaire for surface-mounting, suspended mounting or fixing to tunnel substructure

Highly specular reflector, direct symmetrical distribution

Aluminum housing with mounting straps and cover catches of stainless steel sealing on one level

Frameless cover of toughened safety glass

Specification

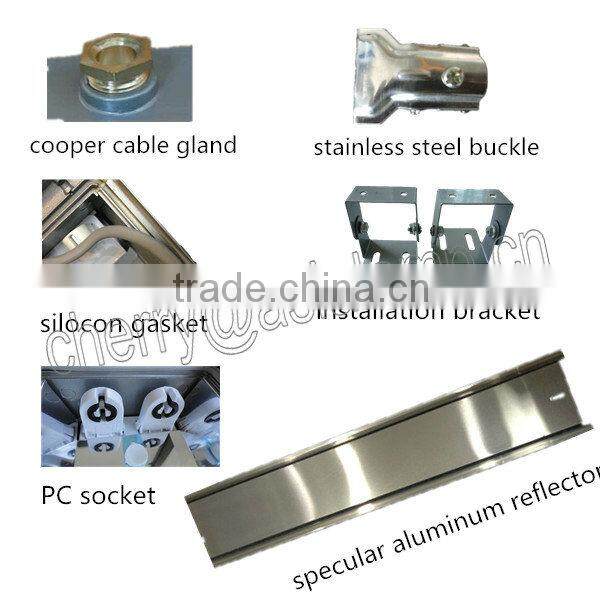

Description
Housing	Aluminum Alloy
Diffuser	5mm toughened glass
Clips	Stainless steel
Specular reflector	vacuum coating
Rated Voltage	100-240V AC
IP rating	IP65
light holder	G13, PC
Gasket	Natural silicon
Cable gland	D10mm, copper
Bracket	Stainless steel
Accessary	4 screws, 4 bushings and 4 washers
Insulation class	I
Mounting:	Ceiling surface or wall mounted

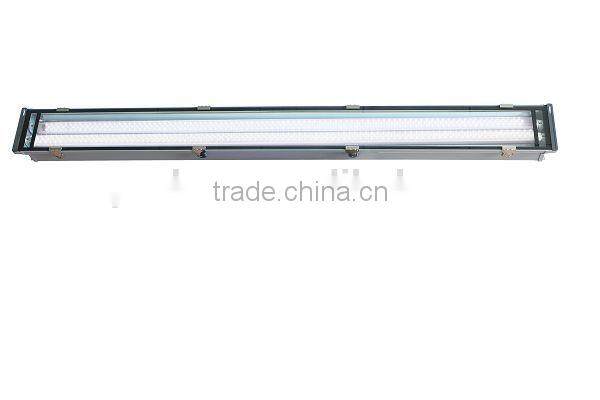

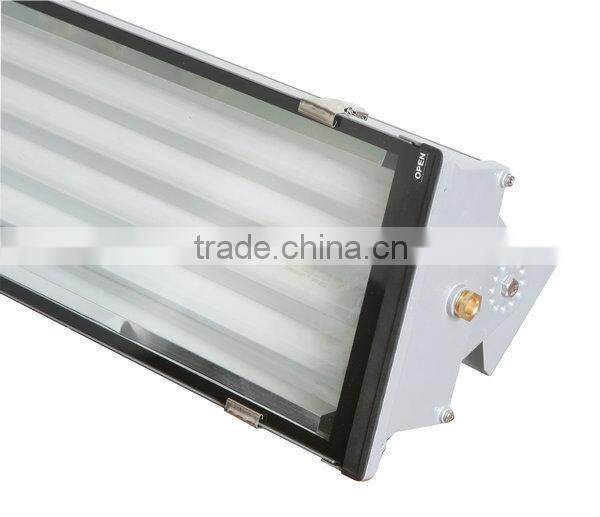

Fluorescent lighting fixture 1-2 tubes

Fluorescent lighting fixture 3-4 tubes

Dimentions:

T8 Fluorescent light
Item No.	Power	Lumen (lm)	No. of clips	Demension (mm)	Packing size (mm)	pcs/ctn
YZ8118E	1X18W	1400	4	670x90x90	740x305x210	6
YZ8218E	2X18W	2800	4	670x125x90	740x290x210	4
YZ8136E	1X36W	2800	8	1270x90x90	1340x305x210	6
YZ8236E	2X36W	5600	8	1270x125x90	1340x290x210	4
YZ8158E	1X58W	4600	10	1570x90x90	1640x305x210	6
YZ8258E	2X58W	9200	10	1570x125x90	1640x290x210	4
T5 Fluorescent light
Item No.	Power	Lumen (lm)	No. of clips	Demension (mm)	Packing size (mm)	pcs/ctn
YZ5114E	1X14W	1000	4	630x90x90	740x305x210	6
YZ5214E	2X14W	2000	4	630x125x90	740x290x210	4
YZ5128E	1X28W	2300	8	1220x90x90	1340x305x210	6
YZ5228E	2X28W	4500	8	1220x125x90	1340x290x210	4
YZ5135E	1X35W	2800	10	1520x90x90	1640x305x210	6
YZ5235E	2X35W	5600	10	1520x125x90	1640x290x210	4

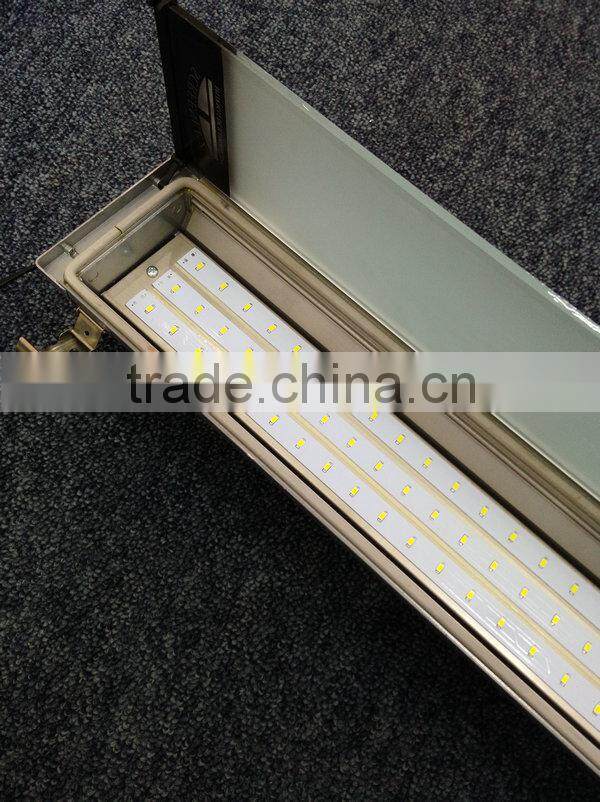

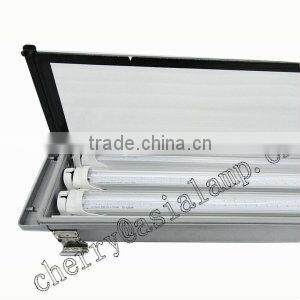

LED strips and LED tube FIXTURE

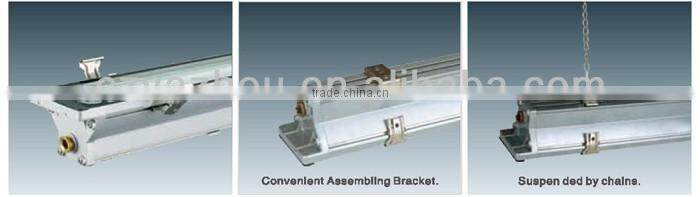

Installation ways

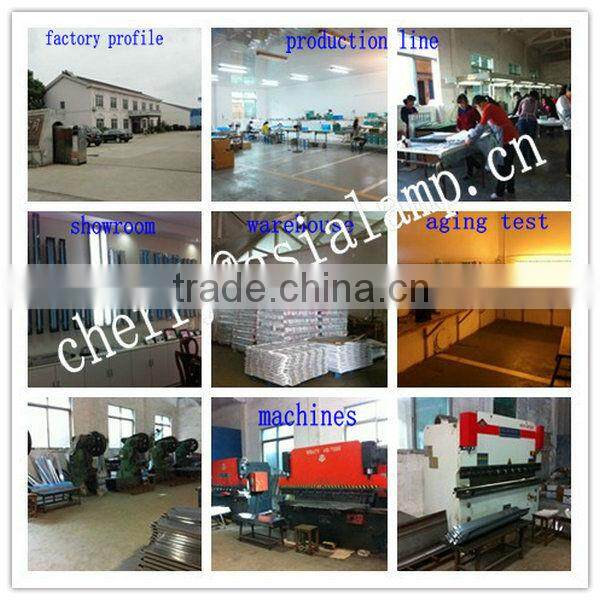

Company overview

Welcome to contact me

Cherry Liu

Sales of fluorescent light fixture t8 4x20w

Changzhou Asia Lamp & Lantern CO.,LTD.

TEL:+86-519-86358802

MP:+86-13915050971

Skype: cherryasialamp
