Home > Lights & Lighting > Bulb & Lamp > Fluorescent Light > Waterproof IP65 LED and Fluorescent Lighting Fixture/ Tunnel Light

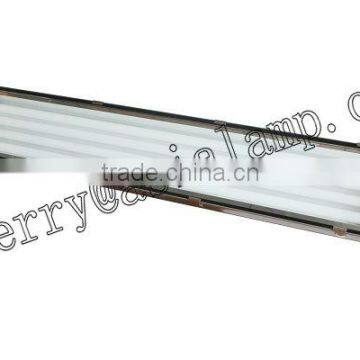

Waterproof IP65 LED and Fluorescent Lighting Fixture/ Tunnel Light
US$ 13 - 25
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
SREGM Fluorescent lighting fixture
Model Number:
YZ-WL Fluorescent lighting fixture
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Projector Light TunnelUS$ 28 - 65MOQ: 50 Pieces -
t5 Fluorescent Aluminum FixtureUS$ 13 - 25MOQ: 1 Piece
-
Aluminum Tunnel Lighting 4ft 1200mm Aluminum Light Fixture With t8 Led Tunnel Lamp 40w/60w/80wUS$ 28 - 65MOQ: 1 Piece
-
Led Flood Tunnel Light With LED Tubes 2*20W High Quality ManufacturerUS$ 20 - 60MOQ: 50 Sets
-
T8 Tunnel Light 1.2m 4Feet Coal Mine Tunnel LightingUS$ 20 - 60MOQ: 50 Sets
Place of Origin
Jiangsu, China
Brand Name
SREGM Fluorescent lighting fixture
Model Number
YZ-WL Fluorescent lighting fixture
Principle
CFL
Shape
Straight
Specifications
Waterproof IP65 LED and Fluorescent lighting fixturefor Tunnel Light
aluminum and toughen glass
IP Rating: IP65
Waterproof IP65 LED and Fluorescent lighting fixture/ Tunnel Light

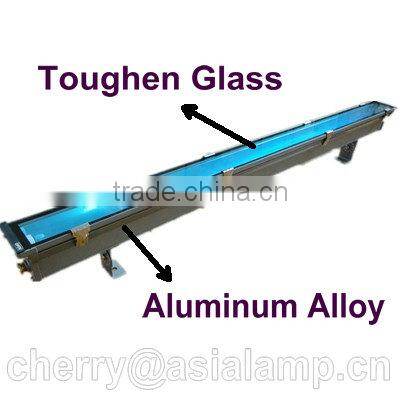

Product Composition
Applicaton
- Highway tunnel
- subway
- city railway
- underground parking
- and other places of lighting required.
Features
- waterproof luminaire for surface-mounting, suspended mounting or fixing to tunnel substructure
- Highly specular reflector, direct symmetrical distribution
- Aluminum housing with mounting straps and cover catches of stainless steel sealing
- Frameless cover of toughened safety glass
Specification
| Housing:Aluminum |
| Diffuser: 5mm toughened glass |
| Buckles: Stainless steel |
| Specular reflector: vacuum coating |
| Rated Voltage: 100-240V AC |
| IP rating: IP65 |
| Light holder: G13, PC |
| Gasket: Natural silicon |
| Cable gland: D10mm copper |
| Bracket:Powder coated steel |
| Accessary: screws, bushings and washers |

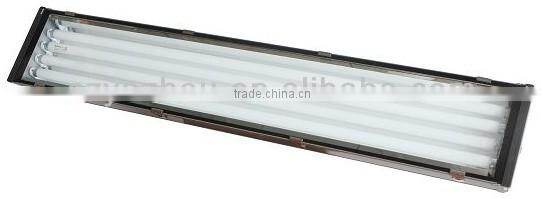

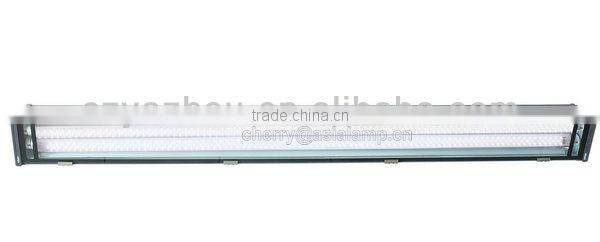

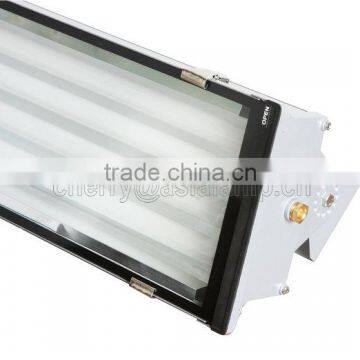

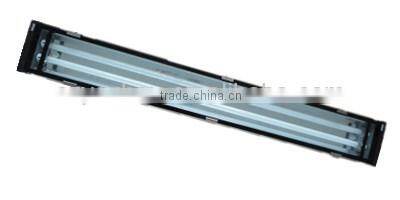

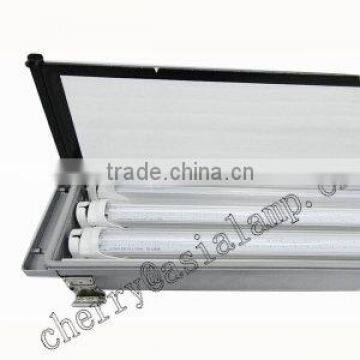

Detail Photoes
Dimentions
| T8 Fluorescent light | ||||||
| Item No. | Power | Lumen (lm) | No. of clips | Demension (mm) | Packing size (mm) | pcs/ctn |
| YZ8118E | 1X18W | 1200 | 4 | 670x90x90 | 740x305x210 | 6 |
| YZ8218E | 2X18W | 2400 | 4 | 670x125x90 | 740x290x210 | 4 |
| YZ8136E | 1X36W | 2400 | 8 | 1270x90x90 | 1340x305x210 | 6 |
| YZ8236E | 2X36W | 4800 | 8 | 1270x125x90 | 1340x290x210 | 4 |
| YZ8158E | 1X58W | 4000 | 10 | 1570x90x90 | 1640x305x210 | 6 |
| YZ8258E | 2X58W | 8000 | 10 | 1570x125x90 | 1640x290x210 | 4 |
| T5 Fluorescent light | ||||||
| Item No. | Power | Lumen (lm) | No. of clips | Demension (mm) | Packing size (mm) | pcs/ctn |
| YZ5114E | 1X14W | 900 | 4 | 630x90x90 | 740x305x210 | 6 |
| YZ5214E | 2X14W | 1800 | 4 | 630x125x90 | 740x290x210 | 4 |
| YZ5128E | 1X28W | 1800 | 8 | 1220x90x90 | 1340x305x210 | 6 |
| YZ5228E | 2X28W | 3600 | 8 | 1230x125x90 | 1340x290x210 | 4 |
| YZ5135E | 1X35W | 2400 | 10 | 1520x90x90 | 1640x305x210 | 6 |
| YZ5235E | 2X35W | 4800 | 10 | 1520x125x90 | 1640x290x210 | 4 |

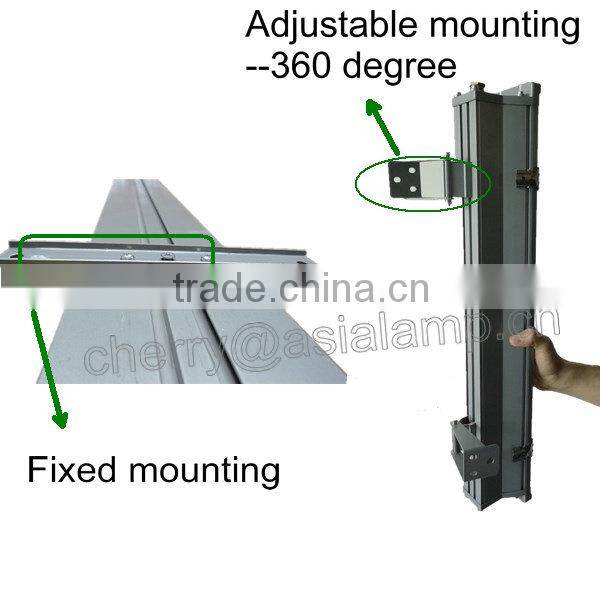

Installation
Fixed mounting & Adjustable mounting
Quality Control
Company overview
Factory and Production line
Showrm, warehouse, and test room
Machines
Certification

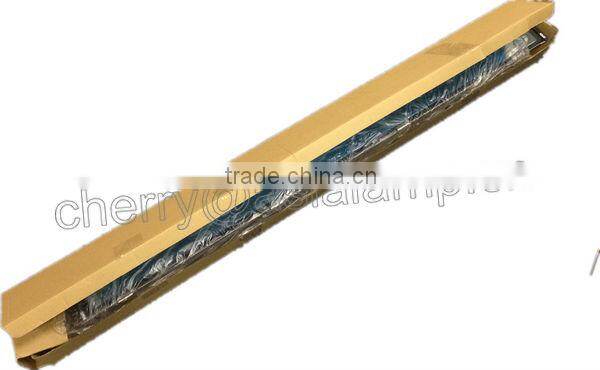

Packing
