Home > Metallurgy, Mineral & Energy > Refractory Material > Special Refractory Material > Kiln Car Top Brick Plate Brick, Tunnel Kiln Brick, Extrusion Brick

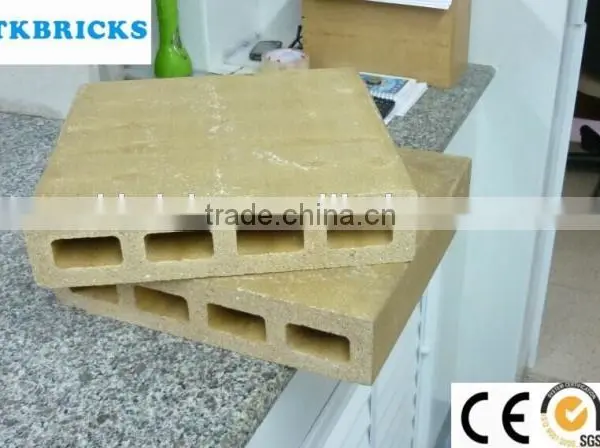

Kiln Car Top Brick Plate Brick, Tunnel Kiln Brick, Extrusion Brick

Zibo TK Bricks Co., Ltd.
Kiln Car Top Brick Plate Brick, Tunnel Kiln Brick, Extrusion Brick thumbnail-1
Kiln Car Top Brick Plate Brick, Tunnel Kiln Brick, Extrusion Brick photo-1
US$ 5 - 15 MOQ: 1 Strand
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Shape:
Brick
Material:
Alumina Block
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Shape Brick
Material Alumina Block
Al2O3 Content (%) 43-78
Model Number TK-T
Brand Name TKBRICKS

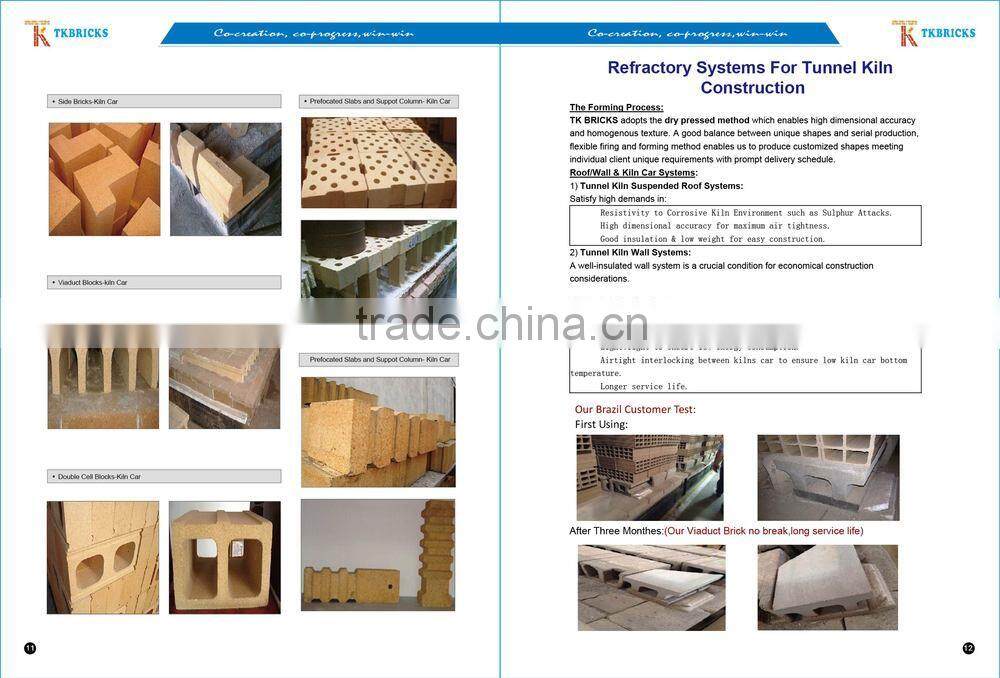

Refractory Systems For Tunnel Kiln Construction



Refractory Systems For Tunnel Kiln Construction

The Forming Process:

TK adopts the dry pressed method which enables high dimensional accuracy and homogenous texture. A good balance between unique shapes and serial production, flexible firing and forming method enables us to produce customized shapes meeting individual client unique requirements with prompt delivery schedule.

Roof/Wall & Kiln Car Systems:

1) Tunnel Kiln Suspended Roof Systems:
Satisfy high demands in:

  • Resistivity to Corrosive Kiln Environment such as Sulphur Attacks.
  • High dimensional accuracy for maximum air tightness.
  • Good insulation & low weight for easy construction.

2) Tunnel Kiln Wall Systems:

A well-insulated wall system is a crucial condition for economical construction considerations.

3) Tunnel Kiln Car Systems:
Our kiln car refractory system takes in account of the severe stress due to the continual heating and cooling cycles with the following objectives:

  • Lightweight to ensure low energy consumption.
  • Airtight interlocking between kilns car to ensure low kiln car bottom temperature.
  • Longer service life.

Selection of Refractory Materials:

TK offers Fireclay, High Alumina and Cordierite Materials customized to different

 Item  Brand

FC35

HL45

CS45



FIRE CLAY

HIGH ALUMINA

CORDIERITE

Chemical % wt















AL203,>

35.00

45.00

38.00

SIO2,<

2.00

2.00

53.00









Physical Properties















Bulk Density(g/cc),>

2.15

2.25

2.2

Refractoriness ~degree C,>

1,500

1,650

1,550





























About our company:



Our company is the specialized manufacturer and exporter of refractory materials and insulation materials in China. Our products mainly include Fire clay brick,High alumina brick,Insulation brick,Refractory castable,Refractory raw materials,Primarily export to East Asia, Southeast Asia, Europe, The americas, Middle East, Australia and Africa etc.

Kiln Car Top Brick plate brick, Tunnel Kiln Brick, Extrusion Brick

Kiln Car Top Brick plate brick, Tunnel Kiln Brick, Extrusion BrickKiln Car Top Brick plate brick, Tunnel Kiln Brick, Extrusion BrickKiln Car Top Brick plate brick, Tunnel Kiln Brick, Extrusion BrickKiln Car Top Brick plate brick, Tunnel Kiln Brick, Extrusion Brick
