profile tube bending machine

FOB Price

USD $17,800 - $20,000 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port any port in china
Payment Terms:T/T L/C D/P D/A Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Jiangsu, China	Brand Name:	haiwei
Model Number:	W24s series	Machine Type:	Pipe and Tube Bending Machine	Raw Material:	Pipe
Power:	Hydraulic	Automation:	Automatic	Extra Services:	Machining
Certification:	ISO 9001:2000	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

used tube bending machines for sale

Place of Origin:	Jiangsu China (Mainland)	Brand Name:	Haiwei	Model Number:	W24s
Machine Type:	Section bendng machine	Raw Material:	Sections /Rolling	Material / Metal Processed:	Carbon Steel/S.S/M.s
Power:	Hydraulic	Automation:	Automatic	Certification:	ISO 9001:2000.SGS.BV
Extra Services:	End Forming	Exported to Countries:	Russia,Agentina,india and soon	Color:	on request
Control system:	CNC/NC/PLC	Electric:	SIEMENS	Bearing:	NOK
USE1:	pre-bending	USE2:	arc-rolling	USE3:	record process
PLC:	Ormon	Touch Screem:	Delta

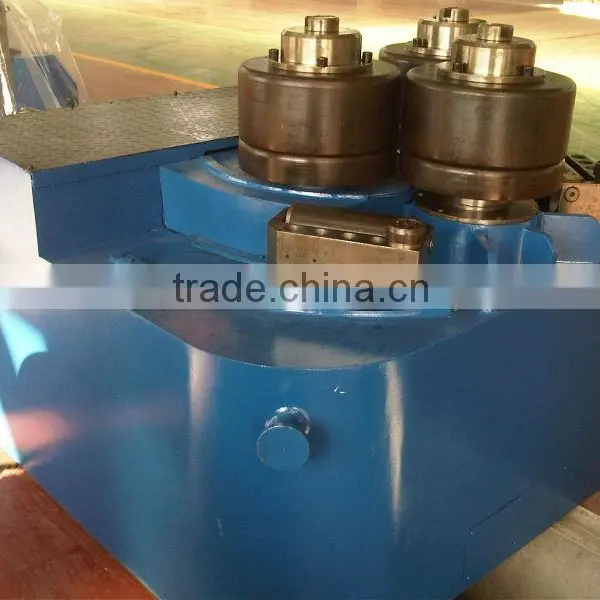

This machine can be expected to complete the pre-bending, roll round and round school process. The two machines under the main drive roller, can also work in three main drive roller roller, the roller position is fixed, the two side rollers rotating arc movement around a fixed center movements, hydraulic control, displacement of liquid crystal display, showing accuracy of 0.1mm. It is conducive to forming process control; both sides of the device has a roller, which will help to ensure that non-symmetrical cross-section happen. advanced technology, feature-wide, also can put horizontally and vertically.

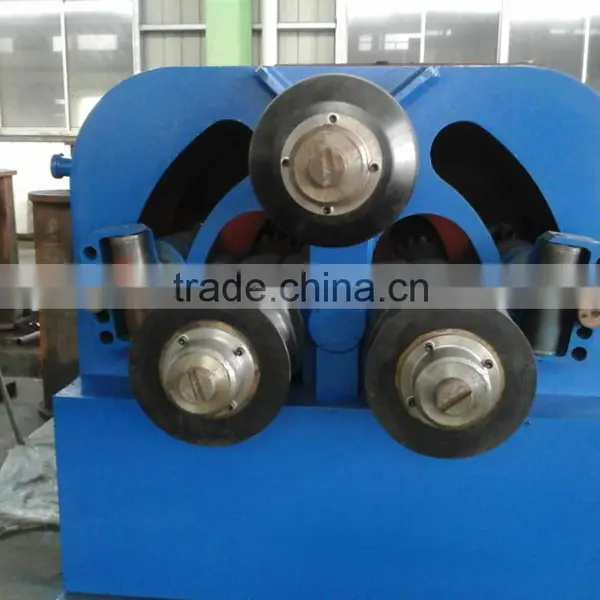

Three work roll are major pinch roll, two side roll can make arc vertical movement around fixed center of gyration, There are roll-lift device on the both sides of work roll which can assure the quality of asymmetry section bending profile. This machine is advanced profile equipment currently at home and abroad with advance structure and reliable operation. Advance structural general or special mold can be configured by the machine, this machine is with convenient operation, high efficiency and great popularity.

Half hydraulic and hydraulic bending machine are famous for its good quality and advanced technology. It is convenient to use

Profile bending machine is a new kind of bending equipment which is introduced from Italy

technology by our company, by changing different mold, this machine can bend various kind of

steel profile such as angel steel, channel steel, joist steel, flat steel, square steel and round steel.

This machine can complete circle-rolling and circle-checking procedures at one time which are widely used in oil industry, chemical industry,

hydropower, shipbuilding industry and machinery manufacture industry.

model	W24S-75 Section Bending Machine
Max. ant-bending section modulus of profile	45cm3
yield limit of profile	σs=250MPa
Angel steel internal	Max section	757510mm
	Minimum bending diameter	1200mm
	Minimum section	35353mm
	Minimum bending diameter	560mm
Angel steel external	Max section	10010010mm
	Minimum bending diameter	1100mm
	Minimum section	35353mm
	Minimum bending diameter	800mm
Channel steel external	Channel steel type	16mm
Channel steel external	Minimum bending diameter	1000mm
Channel steel internal	Channel steel type	16
Channel steel internal	Minimum bending diameter	1000mm
Flat steel vertical bending	Max section	180*25mm
Flat steel vertical bending	Minimum bending diameter	900mm
Flat steel plane-bending	Max section	90*20mm
	Minimum bending diameter	900mm

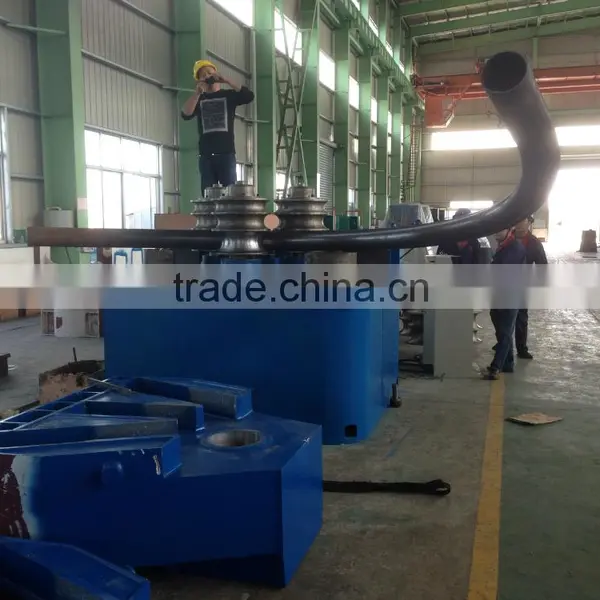

Steel pipe bending	Max section	Φ89*5mm
Steel pipe bending	Minimum bending diameter	700mm
Bending speed	4 m/min
Climb and Fall velocity of side roll	180-200 mm/min
Operating pressure of hydraulic system	16MPa

Contact Us

Nantong Teli Forming Machine Co., Ltd.: Contact namexiaomei Jiang; Phone0086-513-88349428; Addressxichang economic development area, haian jiangsu china Nantong,Jiangsu
