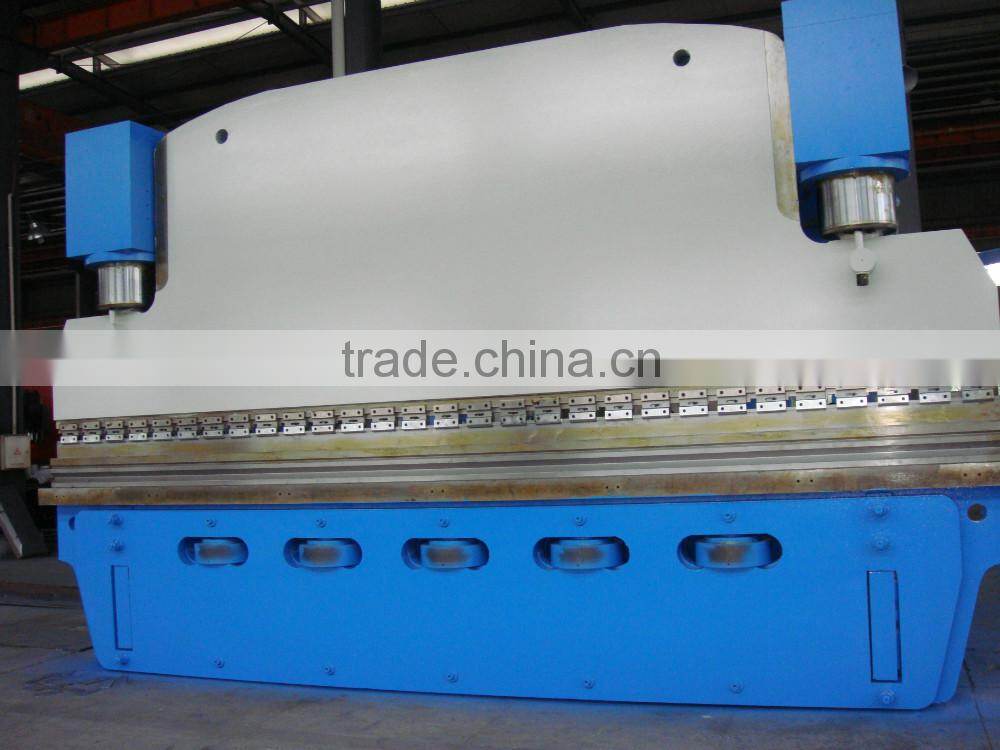

hydraulic press brake price
No | Name | Data | Unit | Remarks | |
1 | Nominal pressure | 2500 | KN |
| |
2 | Length of working table | 4100 | mm |
| |
3 | Plate strength | ≤450 | N/mm2 |
| |
4 | The distance of column | 3100 | mm |
| |
5 | Ram stroke | 250 | mm |
| |
6 | Max opening height | 515 | mm |
| |
7 | Depth of throat | 320 | mm |
| |
8 |
Ram speed | Free | 60 | mm |
|
Running | 8 | mm |
| ||
Return back | 70 | mm |
| ||
9 | Main | Type | Y200L2-6 B5 |
| |
Power | 22 | KW |
| ||
Speed | 970 | rpm |
| ||
10 | Max pressure of system | 26 | Mpa |
| |
11 | Axial pump | Type | 63MCY14-1B |
| |
Speed | 63 | L/min |
| ||
Pressure | 31.5 | Mpa |
| ||
12 | Out size | Length | 4200 | mm |
|
Width | 2300 | mm |
| ||
Height | 4200 | mm |
| ||
13 | Weight | 19000 | kg |
| |
3-1 All steel welded structure, vibrating treatment of ageing for removal of internal stress with high strength and good rigidity.
3-2 Electro-hydraulic synchronization system with high precision
3-3 Integrated hydraulic transmission system, large range of speed regulation to transmission of the sliding block, stable and reliable performance.
3-4 Rear stopper and the sliding block have electrical adjustment for their stroke with manual fine tuning and digital indication.
3-5 Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect upper mold is fitted with titling warp offset mechanism.
3-6 Standard 4+1 axes,ball screw and linear guider ,High efficiency AC servo motor.
3-7 Safe guide is optional.
