High Quality Used Hydraulic Iron Worker

High Quality Used Hydraulic Iron Worker thumbnail-1
High Quality Used Hydraulic Iron Worker photo-1
US$ 8,500 - 12,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Power Source:
Hydraulic
Contact Supplier Request Quote Chat Now
Nantong Teli Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Power Source Hydraulic
Place of Origin Jiangsu, China
Brand Name haiwei
Model Number Q35Y-20
Voltage 380V,220V,415V
Power(W) 5.5kw
Weight 2000kg
Certification ISO 9001
Warranty 2 years
After-sales Service Provided Engineers available to service machinery overseas

Specifications

used hydraulic iron worker
1,punch holes
2,cutting angle steel
3,channel steel,steel bar,H beam

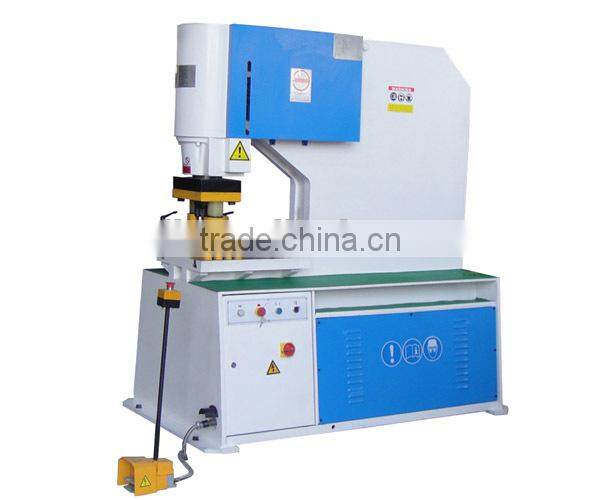

used hydraulic iron worker





high quality used hydraulic iron workerhigh quality used hydraulic iron workerhigh quality used hydraulic iron worker





They adopt hydraulic driving system and they are the latest iron workers in our country, Various metal plate, square bar, Round bar, angle, channel and joist can be cut, punched and notched on the machine. It is also equipped with a stop device for cutting.



Technical Data:

Model

Q35Y-16

Q35Y-20

Q35Y-25

Q35Y-30

Pressure(Ton)

55

75

110

140

Max. cutting thickness(mm)

16

20

25

30

Plate strength(N/mm2)

≤450

≤450

≤450

≤450

Cutting angle(degree)

7°

8°

8°

8°

Shearing size of one stroke(mm)

16*250
8*400

20*330
10*480

25*330
16*600

30*355
20*600

Ram stroke(mm)

80

80

80

80

Number of strokes(cpm)

8

8

6

6

Throat depth(mm)

300

355

400

600

Punching thickness(mm)

16

20

25

26

Max. Punching diameter(mm)

25

30

35

38

Power of main motor(kw)

4

5.5

7.5

11

Overall dimensions(L*W*H)mm

1640*730*1770

1640*800*1900

2355*960*2090

2680*1040*2300

Weight of machine(kg)

1600

2000

4800

6800



A Special order for the joist and channel moulds needed.



Profile

Round Bar

Square Bar

Equal Angle

T-Bar

H beam

Channel

90°Shearing

45°Shearing

90°Shearing

45°Shearing

Section View



Q35Y-16

45

40*40

125*125*12

70*70*8

120*120*12

60*60*8

126*74*5

126*53*5.5

Q35Y-20

50

50*50

140*140*12

70*70*10

140*140*12

70*70*10

160*86*6

160*60*6.5

Q35Y-25

60

50*50

160*160*14

80*80*7

160*160*14

80*80*10

200*102*9

200*75*9

Q35Y-30

65

55*55

180*180*16

80*80*10

180*180*16

80*80*10

280*124*10.5

280*86*11.5

Q35-16

45

40*40

125*125*12

100*100*10

125*125*12

100*100*10

180*94*6.5

180*68*7

QA34-25

65

55*55

150*150*18

110*110*14

150*150*18

110*110*14

300*126*9

300*85*7.5
