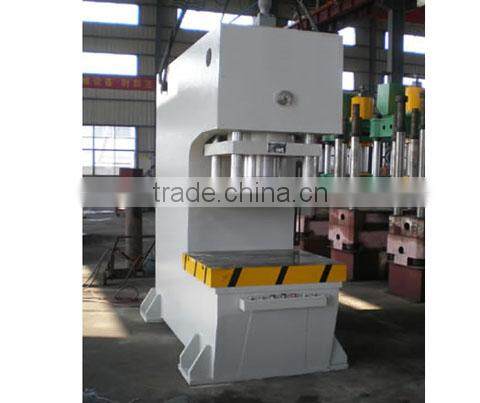

This machine is suitable for pressure processing of plastic matericals; it is used in fitting, bending, side bending and sheet metal drawing ect. It can be also used for correcting, pressing, grinding wheel modularizing, cold extrusion of metal parts, and plastic, sintered and insulating material compacting.
Technical data:
Technical data |
Unit |
YTL41-10B |
YTL41-16 |
YTL41-25B |
YTL41-40D |
YTL41-63D |
YTL41-100E |
YTL41-160D |
YTL41-250B |
||
Rated pressure |
KN |
100 |
160 |
250 |
400 |
630 |
1000 |
1600 |
2500 |
||
Max working pressure |
mm |
20 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
||
Max distance between slide & table |
Correct |
MPa |
450 |
450 |
430 |
510 |
550 |
500 |
650 |
560 |
|
Press & put |
mm |
630 |
630 |
630 |
710 |
800 |
800 |
1000 |
1000 |
||
Max stroke of slide |
Mm |
400 |
400 |
500 |
500 |
500 |
500 |
500 |
500 |
||
Max down speed of slide |
Mm |
50 |
40 |
35 |
40 |
30 |
24 |
20 |
20 |
||
Max return speed |
Mm/s |
80 |
100 |
85 |
80 |
70 |
50 |
80 |
70 |
||
Working speed |
Mm/s |
25 |
20 |
17 |
20 |
15 |
12 |
10 |
10 |
||
Throat depth |
Mm |
210 |
250 |
320 |
320 |
320 |
320 |
360 |
325 |
||
Working table size |
Correct |
mm |
1000*180 |
1000*180 |
1250*200 |
1250*200 |
1600*250 |
2000*300 |
2000*250 |
2500*600 |
|
Press & put |
Mm |
410*420 |
450*450 |
510*580 |
560*560 |
630*600 |
710*600 |
800*600 |
850*660 |
||
Diameter of cutting hole |
Mm |
140 |
160 |
180 |
200 |
200 |
200 |
200 |
150 |
||
Machine size |
length |
Mm |
655 |
735 |
775 |
1250 |
1600 |
2000 |
2000 |
1100 |
|
Width |
Mm |
1160 |
1355 |
1480 |
1660 |
1750 |
2000 |
2000 |
2000 |
||
Height |
mm |
2100 |
2160 |
2330 |
2377 |
2500 |
2650 |
2954 |
3350 |
||
Main motor |
Kw |
4 |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
15 |
18.5 |
||
Stamping buffer device
moving table
oil heating & cooling device
stroke sensor
industrial touched screen
floating guide and rolling racket for die changing
die illuminating device
tool quick clamp device
slide locking device
proportional pressure & speed adjusting device for slide
light curtain
ejcting device(hudraulic or mechanical)
PLC imported PLC
Power socket
die changing dolly
manipulator
imported seal
die
top located hydraulic system
die protecting device
