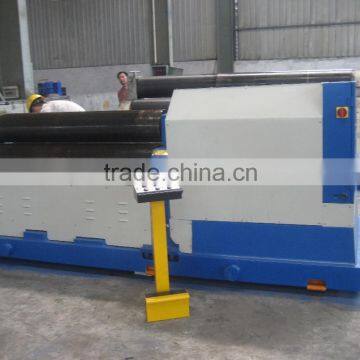

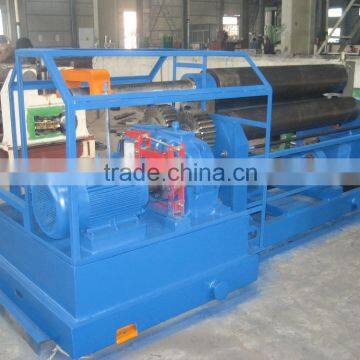

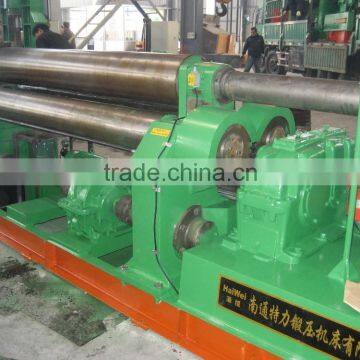

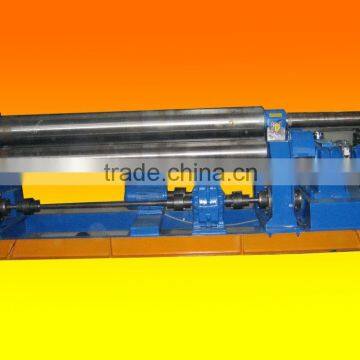

Help CenterUsed Steel Rolling Machine for Sale
Related Products
-
W11 Mechanical Asymmetrical Rolling MachineUS$ 12,000 - 20,000MOQ: 1 Set -
W11 Mechanical Three-roller Symmetrical Rolling MachineUS$ 12,000 - 20,000MOQ: 1 Set
-
W11 Mechanical 3-roller Symmetrical Plate Roll MachineUS$ 12,000 - 20,000MOQ: 1 Set
-
W11 Mechanical Plate Rolling MachineUS$ 12,000 - 20,000MOQ: 1 Set
-
W11 Series 3 Rollers Mechanical Rolling MachineUS$ 12,000 - 20,000MOQ: 1 Set
mechanical plate rolling machine, simple structure, easily operation, cheap price, max thickness as from 6-20mm
ⅠMachine usage range:
This equipment is three rolls machine, upper roller can adjust. It is used to bend different diameter of steel into circle sharp. And it is widely used in chemical industry, ships industry and so on.
II Main technical data:
Max thickness of plate |
12mm |
Max width of roll board |
3000mm |
Up roll diameter |
Φ280mm |
Down roll diameter |
Φ240mm |
Drive speed |
about 4.0m/min |
Main motor |
11kw |
Lifting motor |
5.5kw |
The distance of two down rolls |
360mm |
Min diameter of bending circle |
Φ500mm |
Max yield limit of sheet metal |
245Mpa |
III main structure and working principle :
3-1,this machine is upper roller adjust type, and upper roller in middle of two down rolls and drove by lead screw to move up/down and to bend the steel plate.
3-2 the equipment composed of working parts and drive system two parts. The working parts composed of right and left bearing plate , one upper roll, two down rolls (these three rolls material is 45# steel with heat treatment. ), lifting screw and worm wheel and other accessory parts. Down rolls drive upper rolls to move. Upper rolls can adjust up/down. Drive system composed of main motor, main speed reducer gear and other accessory parts.
3-3 down rolls were drove by main motor and main speed reducer gear, the spindle of main speed reducer drive two down rolls by one group gears, the direction adjusted by the main motor.
3-4 upper rolls lifted by accessory motor and vice speed reducer drive worm pole and worm where of right/left rolls bearing plate.
3-5 unloading device is used for bending circle type to remove the work piece. While unloading the upper rolls move to up limit position, the balance device on upper rolls ends hit upper rolls to remove the work piece.
IV Main parts:
4-1 working rolls china
4-2 main motor china
4-3 main electrical parts SUZHOU
4-4 main speed reducer Jiangsu
VI Payment terms:
30% T/T as advance, 70% T/T before delivery.
VII Delivery time
40 workdays.
