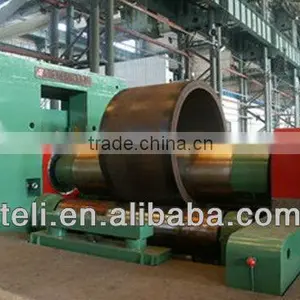

Maquinaria Rodante Plate Rolling Machine Design

Specifications

1,Japan hydraulic system,
2,NC control with touch screen,
3,pre-bending of high precision,rich bending shapes such as O,U
maquinaria rodante    plate rolling machine design                                 3 Roller Hydraulic Plate Rolling Machine

        More than 20years rolling machinery making experience

      The biggest plate rolling machine manufacture in China

Precision of the superior products

Unique crooked craft , the high-accuracy tip is curved in advance, the crooked angle after not having in succession, the crooked course is digital control.
Man-machine dialogue controls the high-efficient intelligence of interfaces to operate
Peculiar crooked craft software, the interactive window, the automatic compensation of the crooked course, operate singly, high-efficient and safe and convenient!

Abundant crooked form
Have rolls of form to make O type, U type, many sections of R ,etc. different forms.

Choice of many models According to the use or users' enquiry, count and show the model economily, TC numerical control model chooses.

3.The Main Structure:

This equipment should be composed of main structure, hydraulic system , electricity control system and cone device.

 3-1. The main structure

The main structure is composed of upper roller , down rollers and level motion device support rolls device , tuning device , balance device, lubricate device , left and right work frame and bottom plate.

1) The upper roller

upper rolls device composed of main cylinder, upper bearing pedestal, upper rolls, double self-aligning bearing .two cylinders provide the pressure for upper roll bending , main cylinder working pressure is 20 Mpa ,max pressure of upper roll multiply 0.8 times to compensate for pre-bending. Upper roll two ends fit with double self-aligning bearing to reduce the friction and motor power.

The material of upper roll is 42CrMo , heat treatment is HB220-280.  HRC 45-55

2) Down roll and level motion device.

The material of down roll is  42CrMo , heat treatment is HB220-280

 it composed of down of roll, down roll bearing pedestal, down roll input gear, down roll, glide bearing. Down bearing adopt SF-2 oil glide bearing.

Level motion motor supply the power, through the strap drive to CWU worm wheel and pole speed reducer. Upper roll level motion drove by worm wheel and pole to finish bending in dissymmetry form.

3) Support device

Composed of sloping block device, support device, support rolls bearing pedestal, support lifting device, support rolls can adjust up and down. The adjustment depend on plate speciation. The material of support is 45# , heat treatment is HB220-280, it made up in helix sharp to protect the surface.

4) Main drive device

It composed of motor, hard gear speed reducer, output gear, main motor can tuning in two direction and provide bending pitch of strand.

5)Overturn device

Composed of ram, bearing, tuning cylinder

6) Balance device

Composed of balance compact, screw

3-3. Hydraulic system

Composed of Y series motor, gear pump , valves , oil tank, pipe and so on.

Max pressure is 20 Mpa , testing pressure is 24 Mpa , pressure adjusted by overflow valve, system working pressure 0-19 MPa , normal pressure is 15Mpa . the valves adopted from Taiwan.

3-4. Electricity system

Composed of electrical box, operation table , manual button . the power is 380V50HZ adopted PLC control system code with longevity easily operate. Whole bending process can read from the indicator setting on the control box.

3-5. Digital display system

This machine adopts two sets of digital instrument and displacement sensor formed a reliable digital display and control system

parts Used:

Main Hydraulic Parts By YUKEN (Japan)

Main Electric Parts By SIEMENS (Germany)

Bearing By WAFANDIAN (China)

Forged Rolls By  NANGANG (China)

PLC By  OMRON (Japan)

Seals By VALQUA (Japan)

Here is the pictures for Indian customer who bought 100x3000

1:Machine inspction in our factory

2:Machine loading process

3:Visit customer workshop

4:Certificate From the this customer who has uesd our machine 100x3000 for 2years.
