Equipment Features

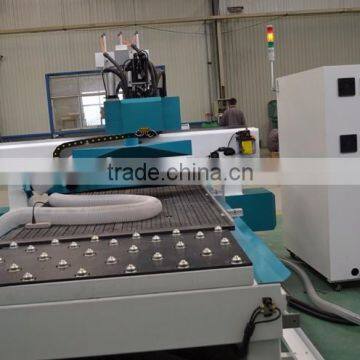

1, YS atc wood cnc router automatic furniture production line YS-1224 for furniture cabinet cutting drilling
production line Perfect function, automatic loading and unloading function, vertically drilling, slot, cutting, engraving
2, Saving time and labor, materials, replace traditional CAD draftman, splitting men, cutting men, only need 8 minutes to input size&design&split. Automatic layout optimization, improve material utilization
3, High quality, automatic design. automatic typesetting, auto labeling.no human intervention, minimizing error rate, ensure the quality of the order
Model | YS-1224 |
Working travel | 1200*2400*200mm |
Table structure | vacuum table |
Guide rail | All Taiwan HIWIN/PMI square guide rail 25 |
XY axis transmission | Helical rack&pinion transmission |
Z axis | Taiwan TBI ballscrew transmission |
Working precision | ±0.02mm |
Repositioning precision | ±0.03mm |
Max air move speed | 500000mm/min |
Max working speed | 150000mm/min |
Controlling system | Yishun Intelligent Cutting System |
Spindle power | 9kw air cooling ATC spindle |
Spindle rotating speed | 0-24000rpm |

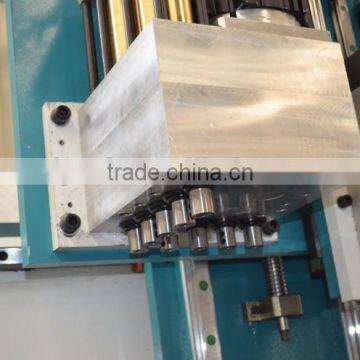

CNC boring head | 5+4 HSD vertical drilling unit |
Inverter | 7.5 Fulling inverter(Delta optional) |
Driving system | 750w Japan YASKAWA or panasonic servo motor with Shimpo reducer |
Command | G code |
Oiling system | Automatic |
Working voltage | AC 380v/3phase |
Function | Automatic loading and unloading device,automatic label function |
Dust collector | 2 units of double bags dust collector |
Vacuum pump | Double 7.5kw Air vacuum pump |
Control system | LNC control system from Taiwan |
Software | Qingdao Haixun 1010 (jifushen) |
