Help CenterNantong Teli Upper-roller Universal Plate Rolling Machine W11s-60*3000
Related Products
-
Sepcification for Sheet Rolling MachineUS$ 140,000 - 160,000MOQ: 1 Set -
Manual Sheet Metal Rolling MachineUS$ 140,000 - 160,000MOQ: 1 Set
-
Used Plate Rolling MachineUS$ 140,000 - 160,000MOQ: 1 Set
-
Types of Rolling Machine in MetalUS$ 60,000 - 70,000MOQ: 1 Set
-
Stainless Steel Pipe Rolling MachineUS$ 60,000 - 70,000MOQ: 1 Set
Specifications
1:Japanese design2:CNC/PLC control
3:Pre-bending Functions
4:High rolling percision ,
upper-roller universal plate rolling
1. Summarize:
This machine used to coil plate into different sharps such as cylindrical form, conic form and arc, it adopted Japan hydraulic technical.
Top roll can does vertical and level motion, up and down, parallel translation is display. This machine include pre-bending function.
3.The Main Structure:
This equipment should be composed of main structure, hydraulic system , electricity control system and cone device.
3-1. The main structure
The main structure is composed of upper roller , down rollers and level motion device support rolls device , tuning device , balance device, lubricate device , left and right work frame and bottom plate.
1) The upper roller
upper rolls device composed of main cylinder, upper bearing pedestal, upper rolls, double self-aligning bearing .two cylinders provide the pressure for upper roll bending , main cylinder working pressure is 20 Mpa ,max pressure of upper roll multiply 0.8 times to compensate for pre-bending. Upper roll two ends fit with double self-aligning bearing to reduce the friction and motor power. The material of upper roll is 42CrMo , heat treatment is HB220-280. HRC 45-55
2) Down roll and level motion device.
The material of down roll is 42CrMo , heat treatment is HB220-280.. it composed of down of roll, down roll bearing pedestal, down roll input gear, down roll, glide bearing. Down bearing adopt SF-2 oil glide bearing.
Level motion motor supply the power, through the strap drive to CWU worm wheel and pole speed reducer. Upper roll level motion drove by worm wheel and pole to finish bending in dissymmetry form.

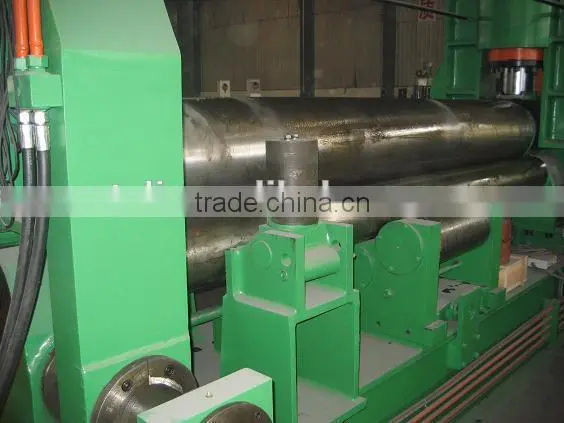

3) Support device
Composed of sloping block device, support device, support rolls bearing pedestal, support lifting device, support rolls can adjust up and down. The adjustment depend on plate speciation. The material of support is 45# , heat treatment is HB220-280, it made up in helix sharp to protect the surface.

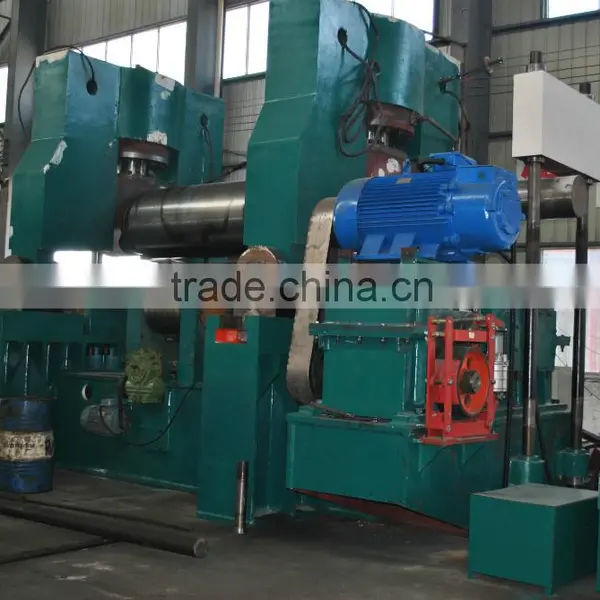

4) Main drive device
It composed of motor, hard gear speed reducer, output gear, main motor can tuning in two direction and provide bending pitch of strand.
5)Overturn device
Composed of ram, bearing, tuning cylinder
6) Balance device
Composed of balance compact, screw

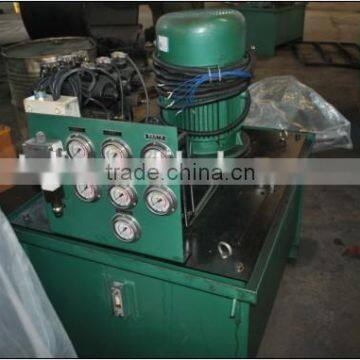

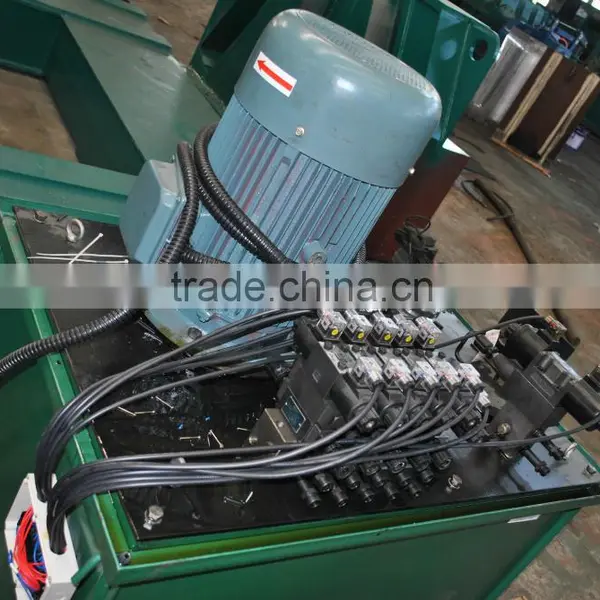

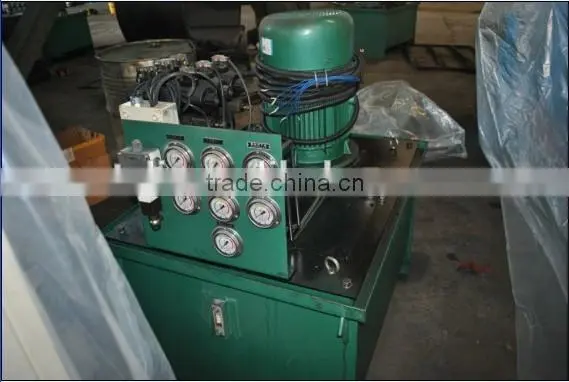

3-3. Hydraulic system
Composed of Y series motor, gear pump , valves , oil tank, pipe and so on.
Max pressure is 20 Mpa , testing pressure is 24 Mpa , pressure adjusted by overflow valve, system working pressure 0-19 MPa , normal pressure is 15Mpa . the valves adopted from Taiwan.

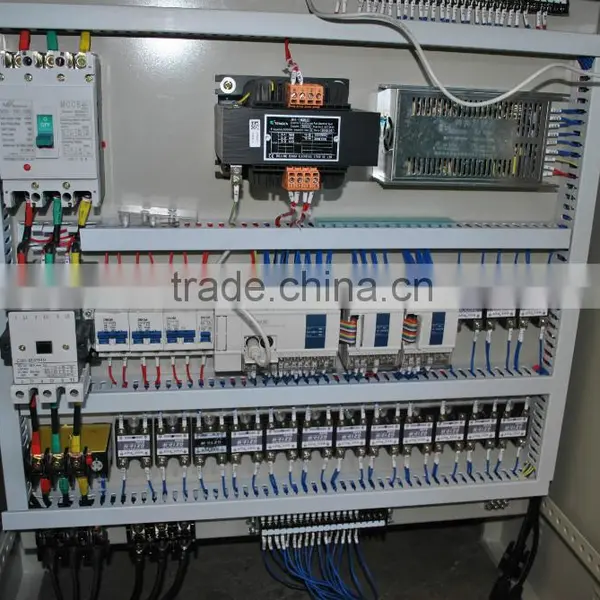

3-4. Electricity system
Composed of electrical box, operation table , manual button . the power is 380V50HZ adopted PLC control system code with longevity easily operate. Whole bending process can read from the indicator setting on the control box.
3-5. Digital display system
This machine adopts two sets of digital instrument and displacement sensor formed a reliable digital display and control system.

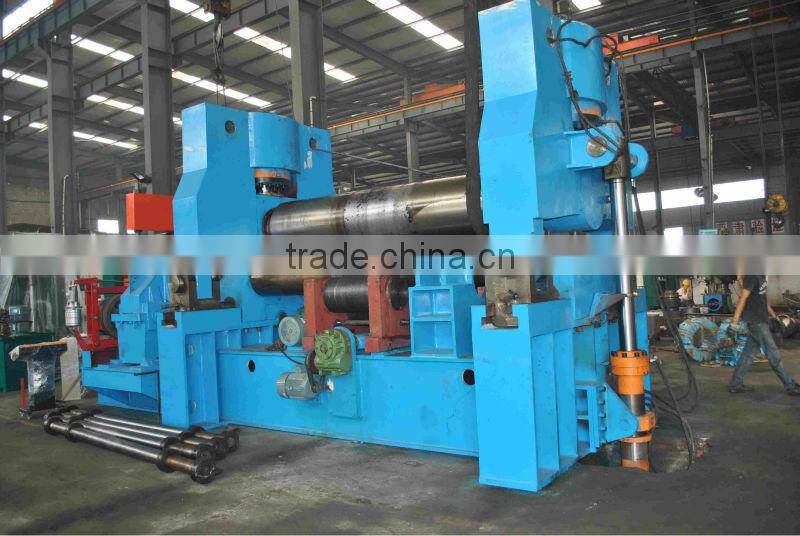

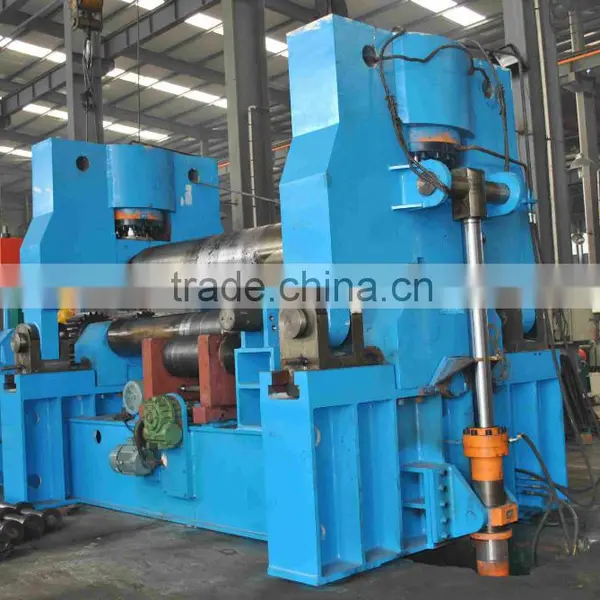

Here is the pictures for Indian customer who bought 100x3000
cone bending device

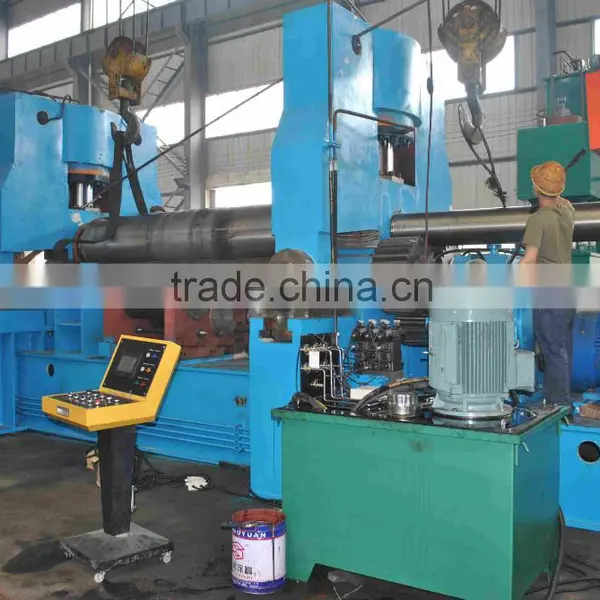

iron sheet rolling machine 2:Machine loading process
3:Visit customer workshop
4:Certificate From the this customer who has uesd our machine 100x3000 for 2years.
More than types machines export overseas!!
CUSTOMER FIRST!QUALITY FIRST!
