Specifications

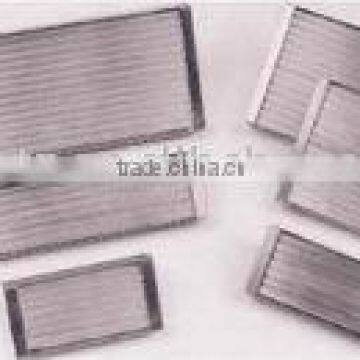

Radiation quartz electric heater, also known as quartz heater plate is heated in accordance with international advanced technolo
Product mix and trait
1.Radiation quartz electric heater, also known as quartz heater plate is heated in accordance with international advanced technology for vacuum adsorption (plastic) to develop the machine.
It is a multi-root quartz tube heat radiation plate new type of integrated electric heating products.
2.It uses metal and far-infrared radiation milky white quartz tube, ultra-high-quality insurance coefficient of nickel chromium alloy resistance wire, high-frequency combination of precision ceramic parts (based on the need to be built-in thermocouple)
Special advantages:
1.the high rate of radiation, radiation, high temperature, well integrated, high-intensity insulation, thermal stability, heat evenly, Electric conversion efficiency, fast heating, thermal inertia of small, clean, easy to install, and other characteristics
2.Embedded with the traditional ceramic tile heat (brick) General and the realization of direct natural excessive. The product is fully imported and the heater match, only the price of imports heater 1 / 4 or so, traditional heat Ceramic tiles only replacement products, imported equipment heater is a substitute for it.
Technical Parameter:
Voltage rating: 380V,220V,110V,55V(standard voltage: 220V)
Heating power: 300-1000W 325W,400W,500W,650W
Heating :within one minitue
Surface temperature: 100-460
ZXW 500-580
high temperature modification700-1100
Spectral region: 2.5-6um
Spectrum emission coefficient0.92wavelength 4-8um,11-25um
Interest-free model number of standard exterior size:
(special requirement customizing) safety pin (General imports of materials is not for stainless steel )
1.RE926-I 122±1mm×62±1mm×25mm
132±1mm×62±1mm×25mm
2.RE926-II: 120±1mm×120±1mm
3.RE926-III: 242±1mm×62±1mm×25mm
Bolt installation(Just to stainless-based materials)
1.RE926-I 118±1mm×60×25mm
122±1mm×62mm×25mm
2.RE926-II: 248mm×62mm×25mm
265mm×80mm×25mm
280mm×80mm×25mm
