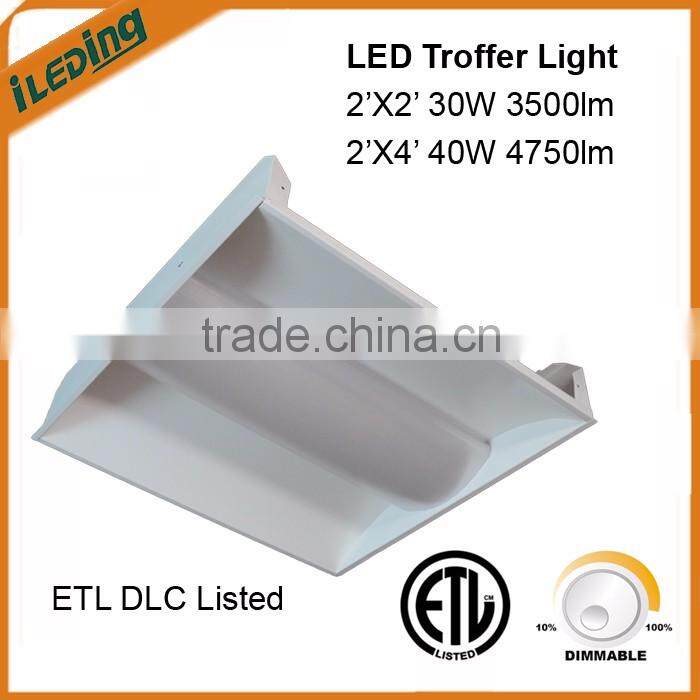

58W 7000lm Dimmable LED Troffer Housing With DLC Listed
- Shanghai China
- T/T
You May Like
-
ETL DLC Approval 5 Years Warranty 40W Dimmable LED 2X4 Troffer Retrofit
-
30W 3500lm 3500K 4000K 5000K Retrofit Kit Troffer LED 2X2
-
40W Panel Light Dimmable 2X4 LED Troffer 1200mm With DLC
-
58W 125lm/W110-277V Dimmable LED Troffer Retrofit With DLC
-
Dimmable 30W 40W 50W 125lm/W Retrofit Kit 2X4 LED Troffer
-
ETL Approval 40W Dimmable 4750lm LED Troffer Light
Product Details
| LED Light Source | Epistar | Warranty(Years) | 5 | |
| Input Voltage(V) | 110-277 | Lamp Power(W) | 58 | |
| Lamp Luminous Flux(lm) | 4750 | Lamp Luminous Efficiency(lm/w) | 125 | |
| Color Temperature(CCT) | Pure White | Working Temperature(℃) | -25, 45 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | IP44 | Certification | ETL, FCC, UL | |
| Place of Origin | Shanghai, China | Brand Name | Ileding | |
| Model Number | Troffer Housing |
Product Description

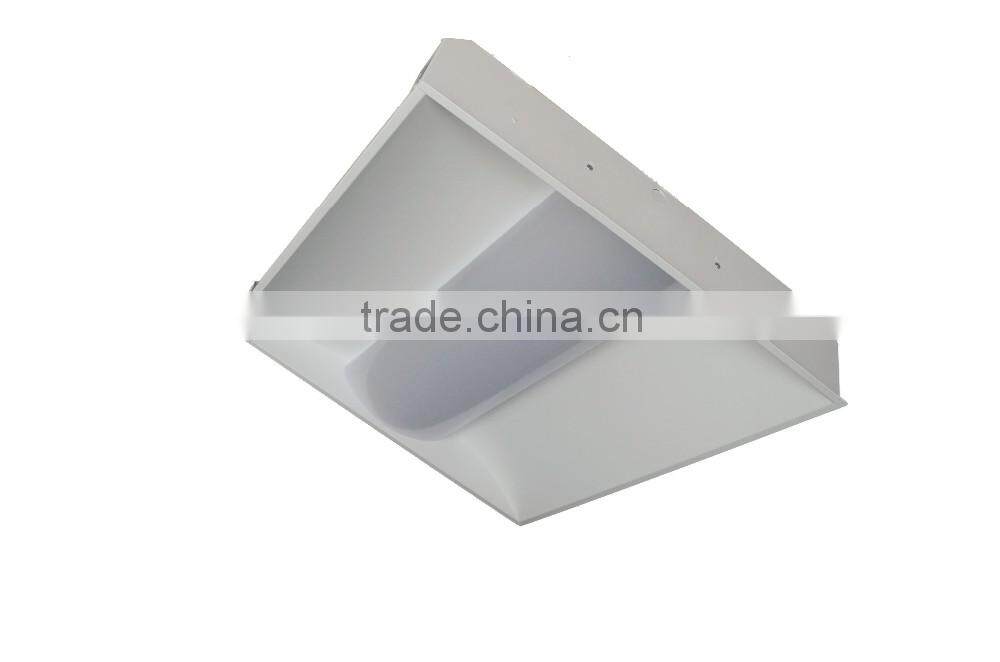

58W 7000lm Dimmable LED Troffer Housing with DLC Listed

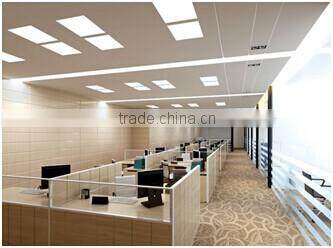

ILEDING’s LED Troffer Luminaires are LED replacements for fluorescent troffers in new or remodel construction. ILEDING’s modern design,uniform light distribution,high lumen output per watt delivers unprecedented value. These fixtures as ideal solutions for offices, schools, hospitals.retail, and other applications.s.
Feature
• Voltage:110-277V
• Lumen Efficiency:105Lm/w; 125Lm/w Luminaire
• Power Factor:up to 0.95
• Avail. Color temps: 3500, 4000, and 5000K.
• CRI (Ra):≥80
• LM-79 test data available
• Also available in 2’x2’, 2’x4’ Troffer
• Ambient Temperature:-25℃~45℃
• Environment: Indoor / Dry / IP40
• Dimming:0-10V standard
• 50,000hrs life
• Warranty: 5 years limited
| Fits Fixture | Model No. | Power | Lumen | Light Efficiency | Dimmable | Ra | CCT |
| 2’ x 2’ Troffer | RG-22TL30WDXXK | 30W | 3500 | ≥125 | Dimmable, (0-10V,PWM) | 80 | 3500K 4000K 5000K |
| 2’ x4’ Troffer | RG-24TL40WDXXK | 40W | 4750 | ≥125 | Dimmable, (0-10V,PWM) | ||
| 2’ x 4’ Troffer | RG-24TL58WDXXK | 58W | 7000 | ≥125 | Dimmable, (0-10V,PWM) | ||
| 2’ x 2’ Troffer | RG-22TL28WXXK | 28W | 3500 | ≥125 | non-dimming | ||
| 2’ x 4’ Troffer | RG-24TL40WXXK | 40W | 4750 | ≥125 | non-dimming |

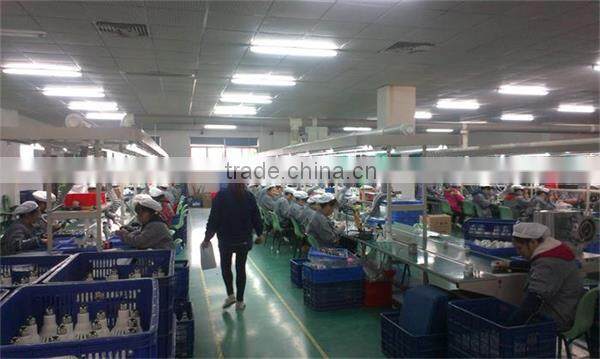

Company Profile
We supply home lighting, engineering lighting, electrical and other lighting fixtures.
Home lighting products includes:ceiling light,dining-room light,down light,spotlight,wall light,
mirror-front light,eye-protection light,T5 holder, compact fluorescent lamps etc;engineering
lighting products includes:light source,electrical parts,ceiling light,low voltage spotlight,high
power spotlight,LED troffer retrofit kits, IP65 LED vapor tight light,down light,lamp panel,
holder, metal halide lamp,etc. Our attention to the technical and quality control makes us
unique.
