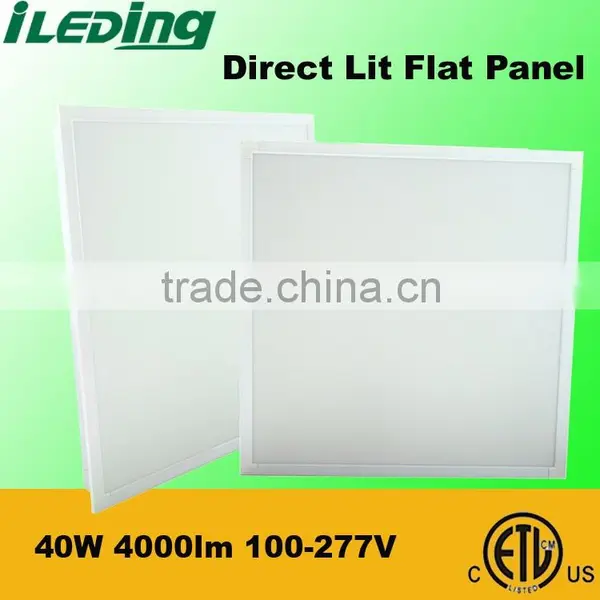

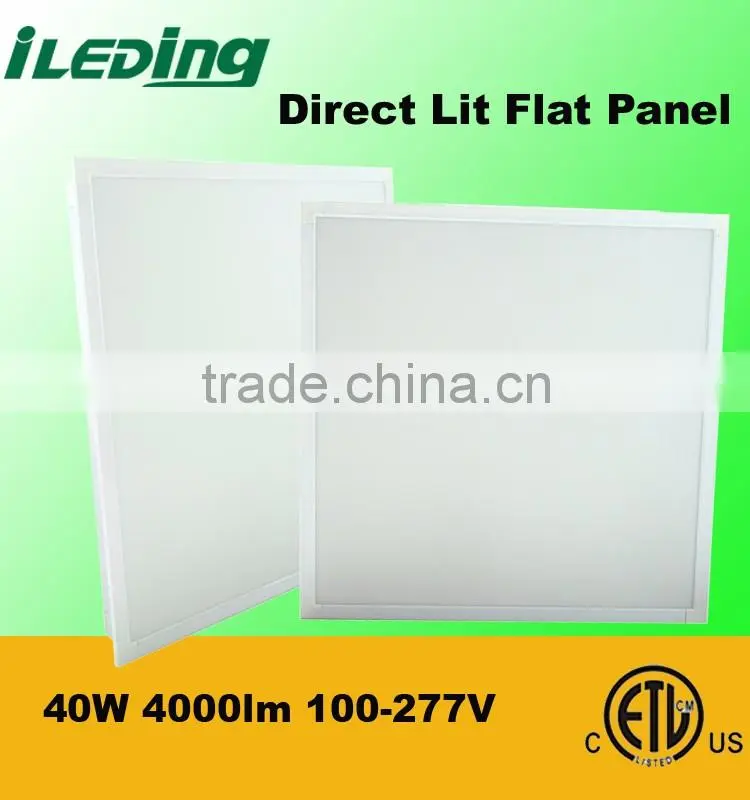

DLC Approval 100lm/W 40W 600X600 Surface Mounted LED Flat Panel
Typically used to replace 2’X2’ and 2’X4’ fluorescent fixtures, the Frame Edge Lit Flat Panel is designed to lay in drop ceilings in offices, schools, and healthcare applications. The flat panels are fully dimmable and are compatible with building controls, motion sensors, timers, and daylight harvesting systems.
The design of the panels produces an even, consistent shadowless light. The LEDs enable long life, high lumen maintenance, and high CRI, and are low maintenance and constructed without hazardous materials.
Features
• Standard dimming: 0-10V dimming
• Five year limited warranty
• CRI: >80
• Fits standard T-bar and narrow grid drop ceilings
• Available in both 2’X2’ and 2’X4’ sizes
• Standard white finish
• Features 1-10V simple dimming
• IC rated for direct insulation contact
Application
Frame Edge Lit Flat Panels are the ideal energy-efficient replacements for fluorescent fixtures in offices, schools, hospitality, healthcare, and other commercials and industrial applications that require slim installation depth.
| Rated Power | Model No. | Lumen | CCT | Voltage |
| 30W | IL-22PL30WXXK | 3000 | 3000K/ 4000K 5000K |
AC100V-277V |
| 36W | IL-22PL36WXXK | 3600 | ||
| 40W | IL-22PL40WXXK | 4000 | ||
| 50W | IL-22PL50WXXK | 5000 | ||
| 40W | IL-24PL40WXXK | 4000 | ||
| 50W | IL-24PL50WXXK | 5000 | ||
| 60W | IL-24PL60WXXK | 6000 | ||
| 30W | IL-14PL30WXXK | 3000 | ||
| 36W | IL-14PL36WXXK | 3600 | ||
| 40W | IL-14PL40WXXK | 4000 | ||
| 50W | IL-14PL50WXXK | 5000 |
| Package methods of high bay lighting | ||||||||
| 1. Neutral Package: each lamp will be packed in a white box with a sticker ( V, W, CCT etc ) | ||||||||
| 2. Gift box or Blister package. | ||||||||
| 1). First, we will provide the dyeline of relevant product's box for you to design the colorful box | ||||||||
| 2). We will produce the box according to your artwork after received your deposit |
Company Profile
We supply home lighting, engineering lighting, electrical and other lighting fixtures.
Home lighting products includes:ceiling light,dining-room light,down light,spotlight,wall light,
mirror-front light,eye-protection light,T5 holder, compact fluorescent lamps etc;engineering
lighting products includes:light source,electrical parts,ceiling light,low voltage spotlight,high
power spotlight,LED troffer retrofit kits, IP65 LED vapor tight light,down light,lamp panel,
holder, metal halide lamp,etc. Our attention to the technical and quality control makes us
unique.
