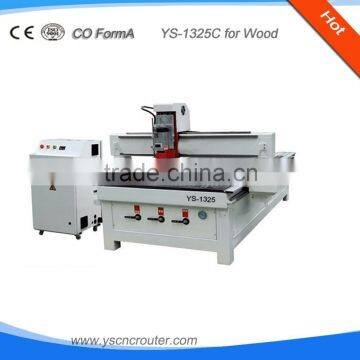

Professional good character cnc router encarving machine cnc router cnc router engraving machine with CE certificate
Functional Characteristics
1. HIWIN square orbit, double slippers, bearing heavy, working steadily, high precision, and long life time, import ball screw, high precision for cutting.
2. High speed stepper motor and drivers, and tow motors for Y axis. Max speed is 25M/MIN. With water cooling spindle highly upgrade the processing speed.
3.The optional equipment for spindle is Japan imported high power water cooling motor (Japan NSK bearing) high speed spindle, stable capability..
5. Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/Castmate/Ucancam etc.
Apply to industry and materials
Furniture industry: the cabinet door, wooden door, solid wood, plate, doors and Windows, tables and chairs. Decoration industry: screen, wave plates, large wall hanging, advertising board, logo production.
proformace index :
Model NO |
YS-1325A Wood CNC Router |
Table Size |
1440×3000mm |
X Y Z Traveling Area |
1300x2500*200mm |
Table Structure |
T-slot |
X Y Transmission |
Rack Gear |
Z transmission |
Germany Neef Ball Screws |
X Y Z Guide Rail |
TAIWAN HIWIN Square Rail |
Spindle Power |
3.0 kw Water Cooling Spindle |
Max Spindle Speed |
24000r/ min |
Max Traveling Speed |
35m/s |
Max Working Speed |
30m/s |
Processing Accuracy |
±0.025mm |
Reposition Accuracy |
≤0.025mm |
Working Voltage |
220/380V 50Hz |
Work-holding |
Clamps |
Processor |
Windows /100MHz |
Interface |
PCI |
Command |
G*.u00*.mmg*.plt |
Operation System |
Nc-studio |
Power(not include the spindle) |
500W |
Net weight /Gross Weight |
1000KGS /1100KGS |
Package Dimension |
3200*1840*1900mm |
working sample :
optional parts :
1-12 spindle
Step motor or Servo motor
Water cooling spindle or HSD spindle
Rotary axis with diameter from 100mm to 500mm
the machine parts :
our service :
♦ 24 hours technical support online.
♦ We offer detailed User Manual together with machine
♦ We offer machine operation video free
♦ We offer training in our factory free
♦ Engineers available to service machinery overseas
packing and shipping :
FAQ :
Perhaps in your mind will produce these questions, you are a pure trade enterprise or production processing enterprise?
Answer: We are an industry and trade enterprise, with import and export rights and production and trade companies.
what advantage of your machinethan other enterprises have the different?
Answer: We are the manufacturer, has eight years of experience, has a very professional team, all products are high quality, all for customer service.
company information :
Shandong Yishun CNC Machinery Co., Ltd. is the manufacture of CNC Router, Plasma Machine and Laser machinewith well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
Karry Liu
Skype :yscnc04
WhatsApp/Tel:+8613615316700
website :http://www.yscnc.en.china.cn
