Hot selling double head cnc router machining atc function with low pricedouble head cnc router machining atc function
Functional Characteristics
1. HIWIN square orbit, double slippers, bearing heavy, working steadily, high precision, and long life time, import ball screw, high precision for cutting.

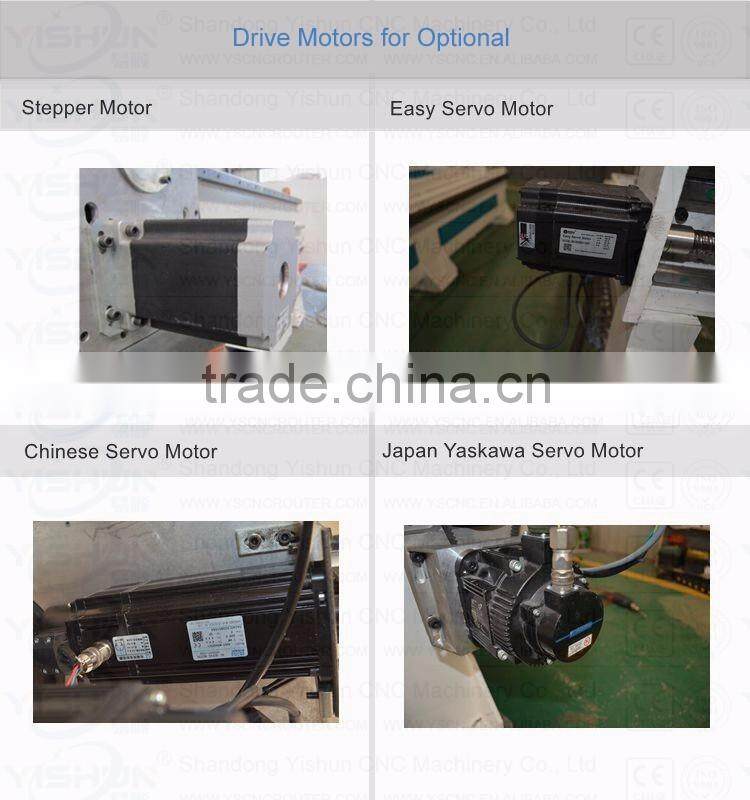

2. High speed stepper motor and drivers, and tow motors for Y axis. Max speed is 25M/MIN. With water cooling spindle highly upgrade the processing speed.
3.The optional equipment for spindle is Japan imported high power water cooling motor (Japan NSK bearing) high speed spindle, stable capability.
4. Unique intelligent budget principle, fully develops the potential of the motor and lead to high processing speed, the synchronization of curves and straight lines, smooth curves.
5. Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/Castmate/Ucancam etc.
Performance index
Model NO | YS-1325A Wood CNC Router |
Table Size | 1440×3000mm |
X Y Z Traveling Area | 1300x2500*200mm |
Table Structure | T-slot |
X Y Transmisson | Rack Gear |
Z transmission | Germany Neef Ball Screws |
X Y Z Guide Rail | TAIWAN HIWIN Square Rail |
Spindle Power | 3.0 kw Water Cooling Spindle |
Max Spindle Speed | 24000r/ min |
Max Traveling Speed | 35m/s |
Max Working Speed | 30m/s |
Processiong Accuracy | ±0.025mm |
Reposition Accuracy | ≤0.025mm |
Working Voltage | 220/380V 50Hz |
Work-holding | Clamps |
Processor | Windows /100MHz |
Interface | PCI |
Command | G*.u00*.mmg*.plt |
Operation System | Nc-studio |
Power(not include the spindle) | 500W |
Net weight /Gross Weight | 1000KGS /1100KGS |
Package Dimension | 3200*1840*1900mm |
Apply to industry and materials
Furniture industry: the cabinet door, wooden door, solid wood, plate, doors and Windows, tables and chairs. Decoration industry: screen, wave plates, large wall hanging, advertising board, logo production.
Q1: How to get the most suitable machine and best price
Please tell us:
1.the material you wanna handle
2.the Max size of these materials(length,width and thickness)
3.the work you wanna handle with this machine(Engraving ?Cutting ?Or others?)
Q2: Do you have the manual of machine.
Yes,we can provide manual,CD software and video to help you operate the machine expertly.
Q3: If we do not know how to use the machine,can you teach us?Yes ,of course. We can offer you free training, and engineers available to service machinery training overseas if you would like to offer them business expenditure.
Q4.How about your after-sales service?
We offer professional and timely after-sale 24 hours online service via phone,Skype or MSN.
Q5.How about your guarantee period?
2 years.
our service :
♦ 24 hours technical support online.
♦ We offer detailed User Manual together with machine
♦ We offer machine operation video free
♦ We offer training in our factory free
♦ Engineers available to service machinery overseas
company information :
Shandong Yishun CNC Machinery Co., Ltd. is the manufacture of CNC Router, Plasma Machine and Laser machinewith well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
Karry Liu
skype : yscnc04
whatsapp/tel :+8613615316700
QQ : 2219075976
Wechat/QQ:2219075976
If you have any question ,contact me .
