20-40hp mini tractors with front end loader
Main Technical Specifications | |||
Model | TY254 | ||
Type | 4×4 Wheeled Type | ||
| Length | 2768 | |
| Width | 1514 | |
| Height | 1365 | |
| Front Wheel | 1000/1200 | |
Dimensions | Tread | Rear Wheel | 1000-1300 Adjusted |
of Tractor | Wheel Base | 1512/1598 | |
(mm) |
| 266 | |
| Min. Ground Base | ||
Dry Mass(kg) | 1130 | ||
Engine | Model | 295 | |
Type | Vertical, 2-cylinder, Water Cooled and 4-stroke | ||
Rated Power(kw) | 18.4 | ||
Rated Rev.(r/min) | 2400/2500 | ||
Fuel | Diesel Oil | ||
Tire | Front Wheel | 6.00-12/6.00-16 | |
Rear Wheel | 8.30-24/9.50-24 | ||
Clutch | Dry-friction, Single Stage or Dry-friction, Two Stage | ||
Steering | Mechanical Type or Hydraulic Type | ||
Transmission Box | (3+1)×2 or (4+1)×2 or (4+1)×2×2(with Creeping Shift) | ||
| Rear three-point suspension O Class A or Class I | ||
Suspension Type | |||
PTO | Type and Rev.(r/min) | Non-independent Type 540 or Non-independent Type 540/1000, 540/720 or Semi-independent Type 540/1000,540/720 | |
Spline Size | I35 Rectangle Spline with 6 teeth(6×28.91×34.79×8.69) | ||

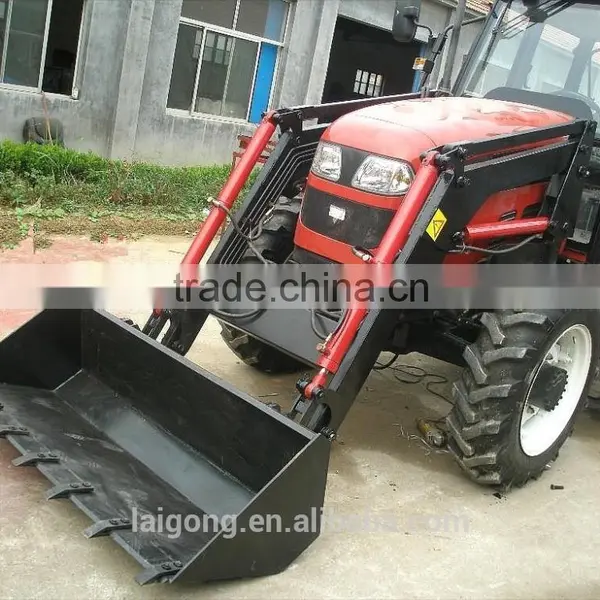

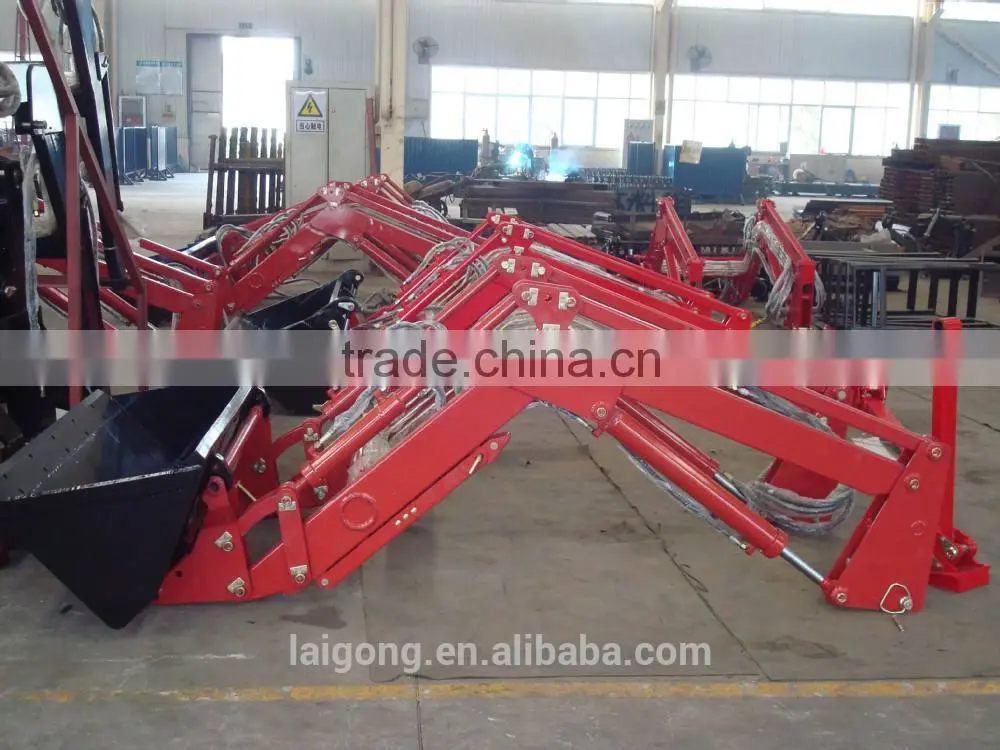

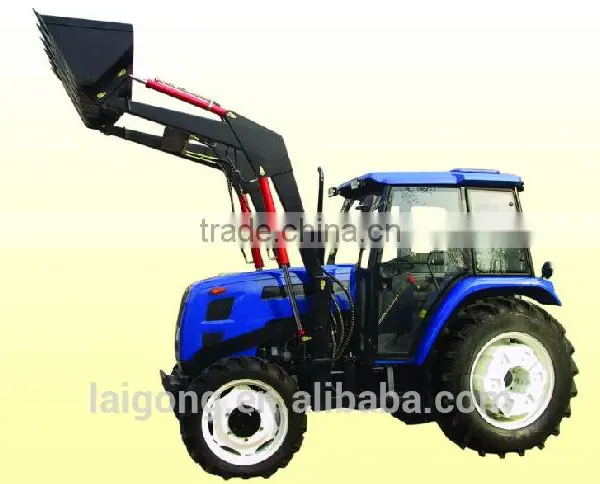

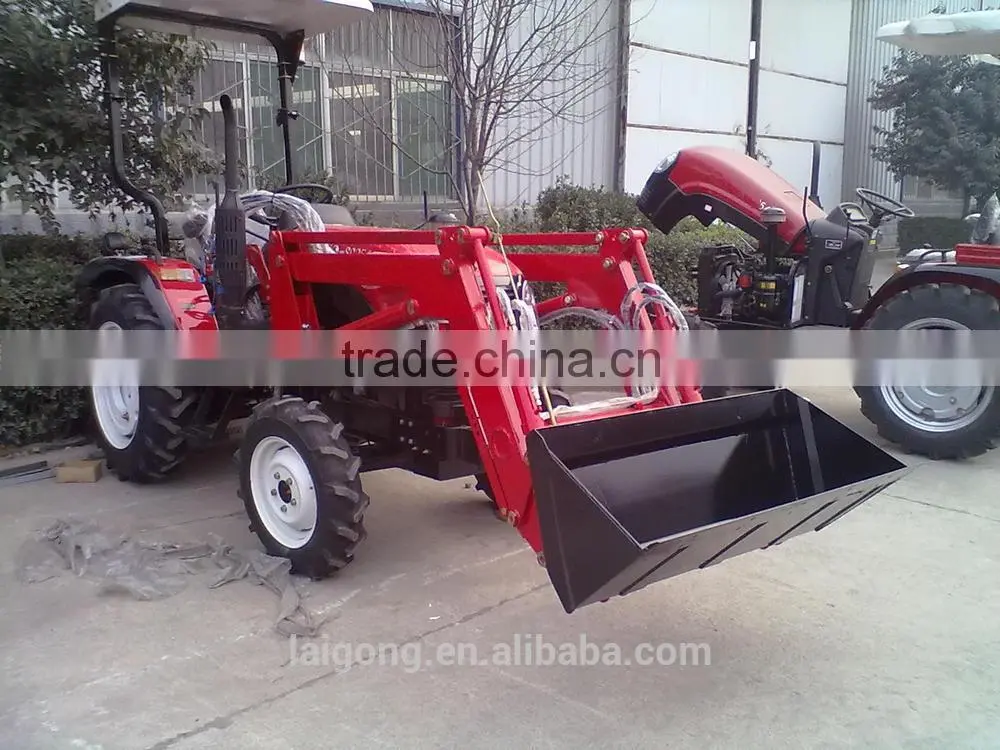

TZ03D front Loader for tractor20-40hp
1. used to scoop up loose materials, such as dirt, sand or gravel, from the ground and move to another place without pushing them across the ground;
2. Equip with various type of buckets and other implements ;
3. Euro Quick Hitch and Skid Steer quick- release frame(SSP) is optional, rapid assembly and disassembly;
4. easy processing and convenient;
5. smartest design engineers, experienced weld technicians, and brilliant research and development teams
6. sleek low-profile shape provides clearer sightlines and amazing visibility in all directions
7. OEM service is acceptable, products can be customized.
| Loader Model | TZ03D | ||
| Matching Tractor | HP | 20-40 | |
| Max.Lifting Height at Implement Pivot Pin | H | mm | 2550 |
| Dumpling Height | A | mm | 1840 |
| Overloading height | L | mm | 2370 |
| Dumpling Distance | W | mm | 500 |
| Ground Clearance at Arm Pivot Pin | B | mm | 1200 |
| Max.Tip in Angle | X | Degree° | 48 |
| Tip out Angle | Z | Degree° | 58 |
| Crowd angle at lowered lift arm | V | Degree° | 135 |
| Digging depth | S | mm | 100 |
| Lifting Force at Implement Pivot Pin | Q1 | kg | 2224 |
| Q2 | kg | 1474 | |
| Bucket Model(Standard) | 04DP125 | ||
| Bucket Width | mm | 1250 | |
| Bucket Capacity | m3 | 0.18 | |
| Rated Lifting Capacity | kg | 300 |
