Unika Multifunctional Core Drill UR21 F-series for Thin Steel Plates, Aluminium, Metallic Siding Board

Moriichi Sangyo Co., Ltd.
Unika Multifunctional Core Drill UR21 F-series for Thin Steel Plates, Aluminium, Metallic Siding Board thumbnail-1
Unika Multifunctional Core Drill UR21 F-series for Thin Steel Plates, Aluminium, Metallic Siding Board photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
UNIKA
Model Number:
UR21F-01
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Japan
Brand Name UNIKA
Model Number UR21F-01

Specifications

Core Drill UR21 F-series for Thin Steel Plates, Aluminium, Metallic Siding Board

Unika Multifunctional Core Drill UR21 F-series

Unika Multifunctional Core Drill UR21 F-series for Thin Steel Plates, Aluminium, Metallic Siding Board

  • Employing the unique double blade feature, with the inner-blade preceding the outer-blade, boring through material such as; Metallic siding, stainless/wood siding as well as Compound material (metallic siding + insulating material + plywood) at one go is possible.
  • Possible to bore through several layers of thin steel plates.



Matching drill: Electric drill/Percussion drill(rotating mode)



Uses:   Thin Steel Plates, Aluminium•Metallic Siding Board, 2×4's including nails, Timber, Plywood, PVC panel, FRP, Plasterboard, Stainless Steel






UR-F (Set)Body + Center Drill + Shank Assembly

Code   Diameter
(mm)		Effective
   Length (mm)    		   Center Drill
(code)
     ST-Shank           SDS-Shank
UR21-F025STUR21-F025SD25170URCD-H250
UR21-F029STUR21-F029SD29
UR21-F032STUR21-F032SD32
UR21-F035STUR21-F035SD35
UR21-F038STUR21-F038SD38
UR21-F040STUR21-F040SD40
UR21-F045STUR21-F045SD45
UR21-F050STUR21-F050SD50
UR21-F055STUR21-F055SD55

UR-F60STUR-F60SD601302CB-W200
UR-F65STUR-F65SD65
UR-F70STUR-F70SD70
UR-F75STUR-F75SD75
UR-F80STUR-F80SD80
UR-F85STUR-F85SD85
UR-F90STUR-F90SD90
UR-F95STUR-F95SD95
UR-F100STUR-F100SD100
UR-F105STUR-F105SD105
UR-F110STUR-F110SD110
UR-F115STUR-F115SD115
UR-F120STUR-F120SD120
UR-F130STUR-F130SD130
UR-F150STUR-F150SD150
UR-F155STUR-F155SD155
UR-F160STUR-F160SD160
UR-F170STUR-F170SD170



 Unika Multifunctional Core Drill UR21 F-series for Thin Steel Plates, Aluminium, Metallic Siding Board



Unika Multifunctional Core Drill UR21 F-series for Thin Steel Plates, Aluminium, Metallic Siding Board





Features of UR21

<Debris removal>

Unika Multifunctional Core Drill UR21 F-series for Thin Steel Plates, Aluminium, Metallic Siding Board

<Body replacement>

Unika Multifunctional Core Drill UR21 F-series for Thin Steel Plates, Aluminium, Metallic Siding Board

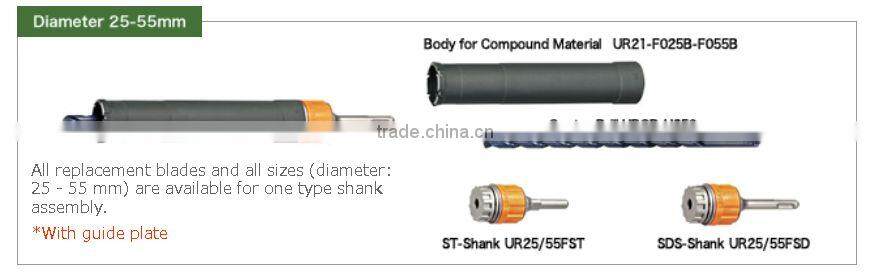

<Latest Core Drill Features  diameter 25-55mm>
Unika Multifunctional Core Drill UR21 F-series for Thin Steel Plates, Aluminium, Metallic Siding Board

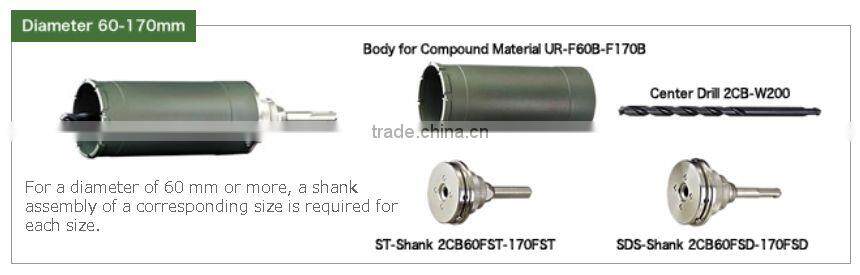

<Latest Core Drill Features  diameter 60-170mm>

 Unika Multifunctional Core Drill UR21 F-series for Thin Steel Plates, Aluminium, Metallic Siding Board









<Company Profile>



Unika Multifunctional Core Drill UR21 F-series for Thin Steel Plates, Aluminium, Metallic Siding Board



Moriichi Industrial Co., Ltd. is a machinery tool wholesaler located in the heart of

Japan's industrial tool industry, Itachibori, Osaka.

We have been operating for over 50 years. We supply industrial tools from Osaka

to over 500 distributors throughout Japan every day.

We would like to supply high-quality Japanese industrial tools not only domestically,

but also to the rest of the world, in order to contribute to manufacturing worldwide.



Unika Multifunctional Core Drill UR21 F-series for Thin Steel Plates, Aluminium, Metallic Siding Board





Our company serves as an agent of Sandvik and deals in a wide array of

industrial tools, particularly cutting tools.

We also handle manufacturing tools, conduction equipment, machine tools,

chemical compounds for industrial use, and many other products,

so please don't hesitate to contact us with inquiries.
