3040 cnc engraver yishun 1300*2500mm china cnc router with rotary axis 4 aixs
- 300 Set / Sets per Month
- Qingdao Port
- T/T L/C D/P D/A Credit Card PayPal
-
engraving cnc router,1325 woodworking cnc router 1300*2500*200
-
engraving and milling machine,1325 woodworking cnc router 1300*2500*200
-
engraver router,1325 woodworking cnc router 1300*2500*200
-
dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
-
cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
-
cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
| Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
| Brand Name: | Yishun | Model Number: | YS-1525-6-2R wood cnc router | Voltage: | 220V/380V |
| Power(W): | 1.5kw, 2.2kw, 3.0KW,4.5kw | Dimension(L*W*H): | 3200*1840*1900mm | Weight: | 1500kg |
| Certification: | ISO, CE, CO, FORM A | Warranty: | 2 Years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
3040 cnc engraver yishun 1300*2500mm china cnc router with rotary axis 4 aixs
Performance index
Model NO. | YS-1525-6-2R Wood CNC Router |
Table Size | 1740×3000mm |
X Y Z Traveling Area | 2500x2500*200mm |
Table Structure | T-slot |
X Y Transmisson | Rack Gear |
Z transmission | Germany Neef Ball Screws |
X Y Z Guide Rail | TAIWAN HIWIN Square Rail |

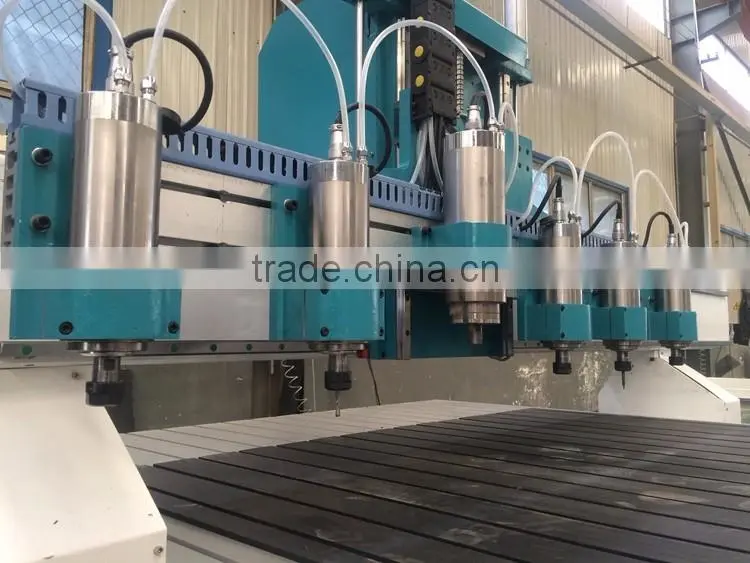

Spindle Power | 1.5KW, 2.2KW, 3.0 kw, 4.5kw, 5.5kw Water Cooling Spindle |
Max Spindle Speed | 24000r/ min |
Max Traveling Speed | 35m/s |
Max Working Speed | 30m/s |
Processing Accuracy | ±0.025mm |
Reposition Accuracy | ≤0.025mm |
Working Voltage | 220/380V 50Hz |
Work-holding | Clamps |
Processor | Windows /100MHz |
Interface | PCI |
Command | G*.u00*.mmg*.plt |

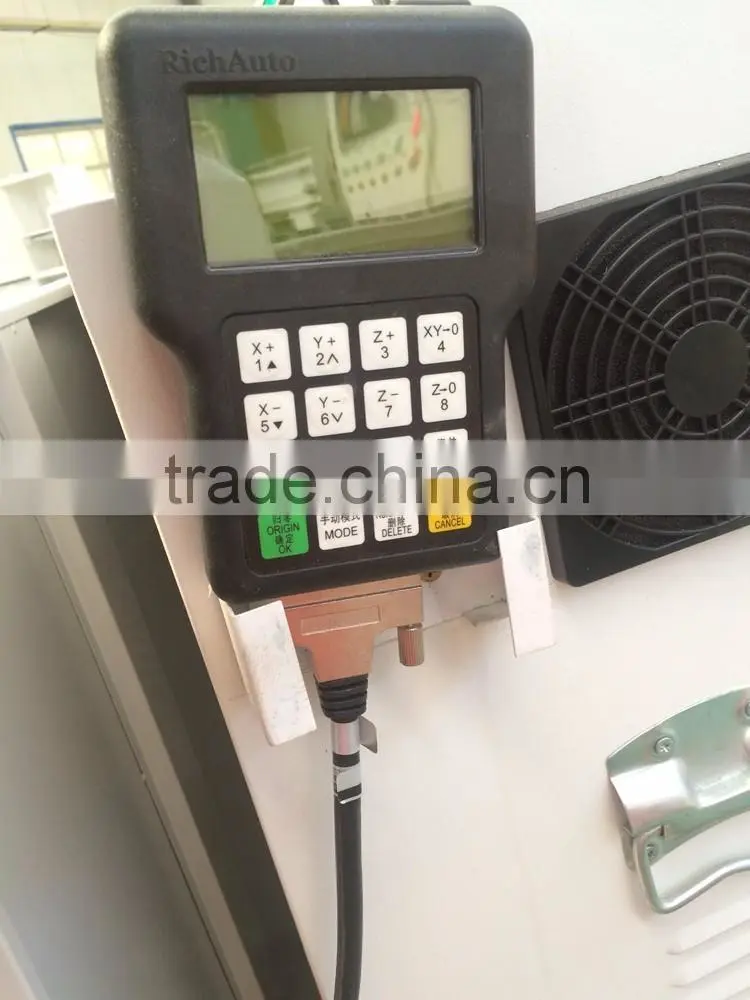

Operation System | Nc-studio, dsp, match3 |
Power(not include the spindle) | 500W |
Net weight /Gross Weight | 1300KGS /1500KGS |
Package Dimension | 3200*1840*1900mm |
Functional Characteristics
1. HIWIN square orbit, double slippers, bearing heavy, working steadily, high precision, and long life time, import ball screw, high precision for cutting.
2. High speed drive motor and drivers, and tow motors for Y axis. Max speed is 25M/MIN. With water cooling spindle highly upgrade the processing speed.
3.The optional equipment for spindle is Japan imported high power water cooling motor (Japan NSK bearing) high speed spindle, stable capability.
4. Unique intelligent budget principle, fully develops the potential of the motor and lead to high processing speed, the synchronization of curves and straight lines, smooth curves.
5. Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/Castmate/Ucancam etc.
Apply to industry and materials
Furniture industry: the cabinet door, wooden door, solid wood, plate, doors and Windows, tables and chairs. Decoration industry: screen, wave plates, large wall hanging, advertising board, logo production.
We have the following configuration for your choice:
Item | Option | ||||||||
Model | YS-1325 | YS-1530 | YS-2030 | YS-2040 | |||||
X Y Working Area | 1300*2500mm | 1500*3000mm | 2000*3000mm | 2000*4000mm | |||||
Operation System | Nc-studio | DSP | March 3 | Taiwan Syntec | |||||
Table Structure | T-slot | Vacuum Table | Combined T-slot and Vacuum Table | ||||||
Spindle Cooling Type | Water Cooling | Air Cooling | |||||||
Spindle Power | 0.8kw | 1.5kw | 2.2kw | 3.5 kw | 4.5kw | 6kw | 7.5kw | 9kw | |
Working Voltage | 220V | 380V | |||||||
Please send us inquiry, we will supply you professional advice!!
