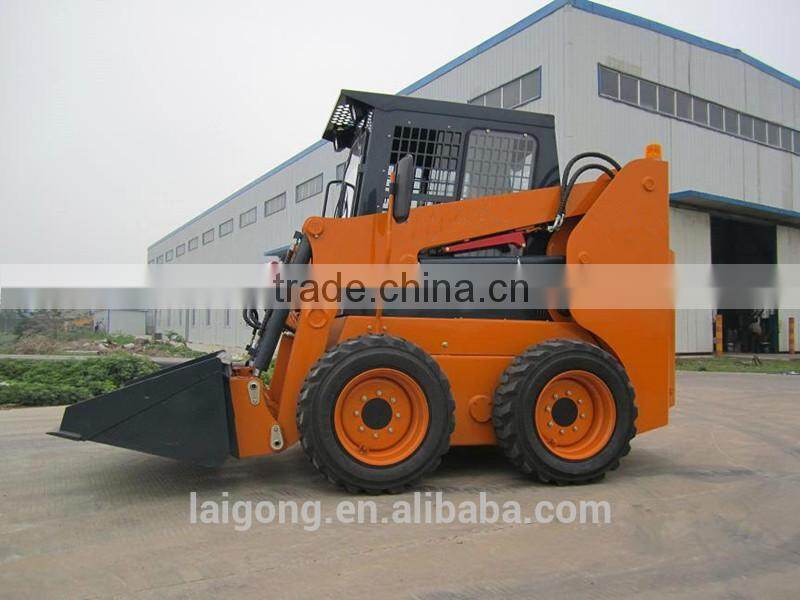

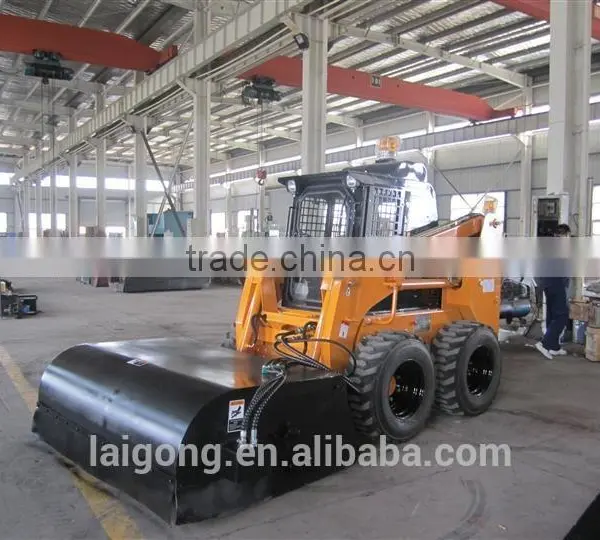

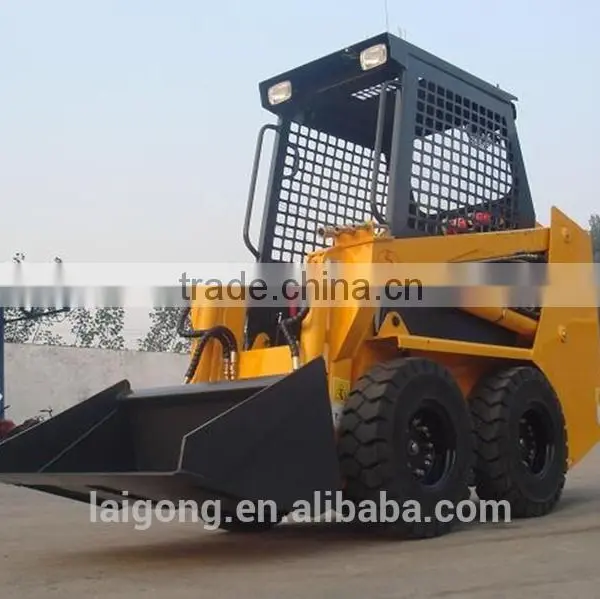

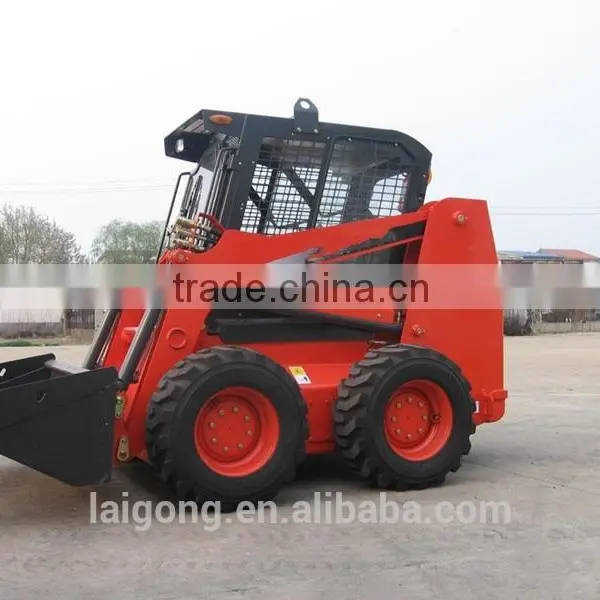

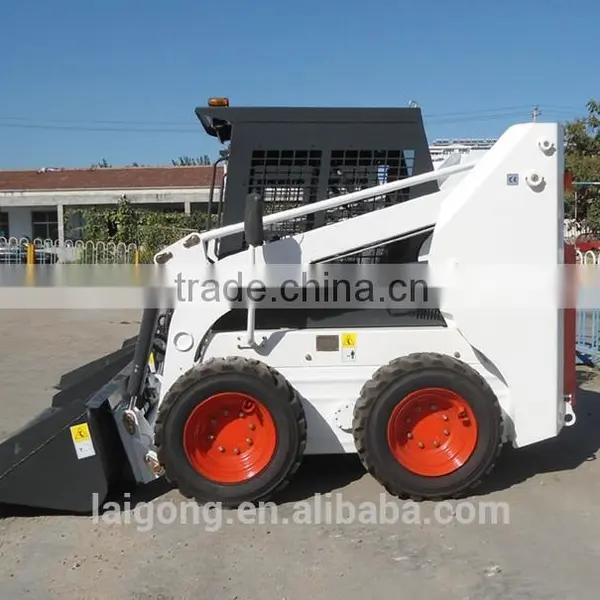

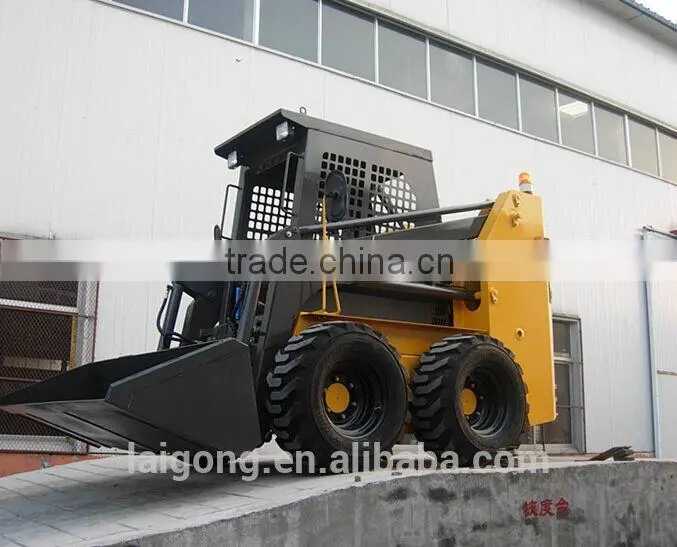

0.5m3 small mini skid steer loader with attachments
u Compact structure, suitable for narrow Space operation
u Open cabin with joystickcontrol system
u Double accelerograph control

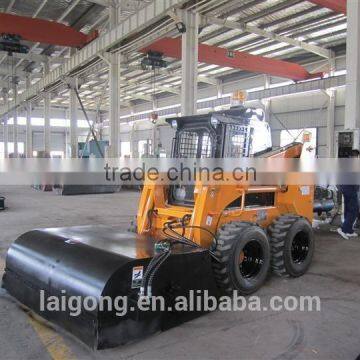

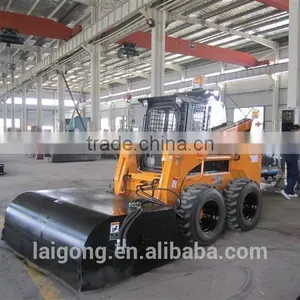

u Multi-function with a widerange of attachments
u Hydraulic brake
Rated Operating Capacity |
1000 |
Tipping load(Kg) |
2000 |
Bucket Capacity(m3) |
0.5 |
Lifting Force(Kg) |
2700 |
Hydraulic Pump Flow(L/min) |
100 |
Engine power(HP) |
80 |
Weight(Kg) |
3600 |
Max. Travel Speed(km/h) |
12 |
Grade ability(° ) |
20 |
Tire |
12- 16.5 |
Fuel/hyd. Oil capacity(L) |
70/70 |

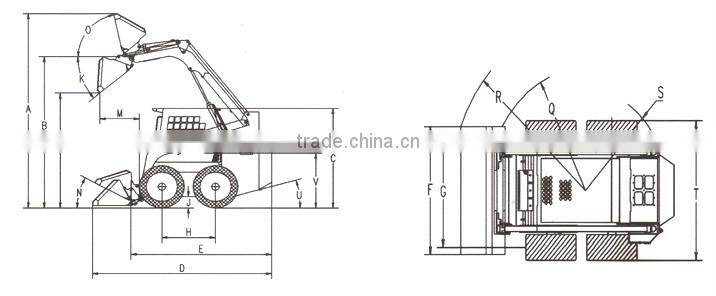

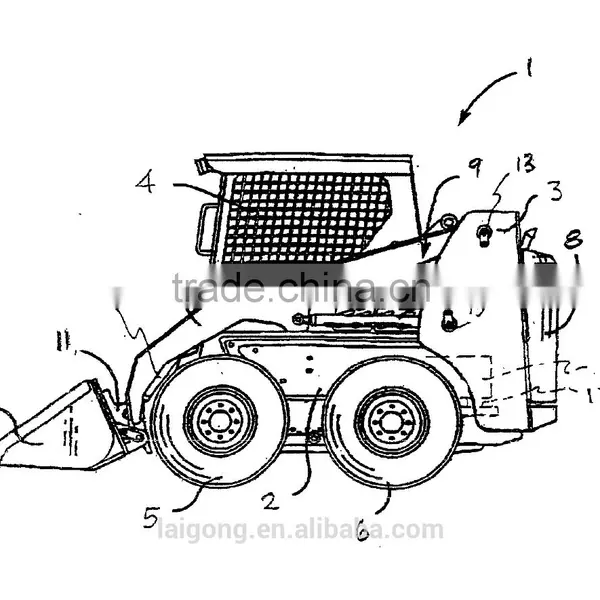

Dimensions
A. Height at Maximum Extension |
3690mm |
B. Hinge Pin Height |
2920mm |
C. Total Height |
2080mm |
D. Length with Bucket |
3450mm |
E. Length without Bucket |
2700mm |
F. Width with Bucket |
1880mm |
G. Track Width |
1500mm |
H. Wheelbase |
1020mm |
J. Ground Clearance |
200mm |
K. Dumping Angle ° |
40 |
L. Dumping Height |
2330mm |
M. Maximum Reach |
700mm |
We have exported to Russia, Maylasia, India, Uzbekistan,Japan, Danmark, Africa and Latin America.

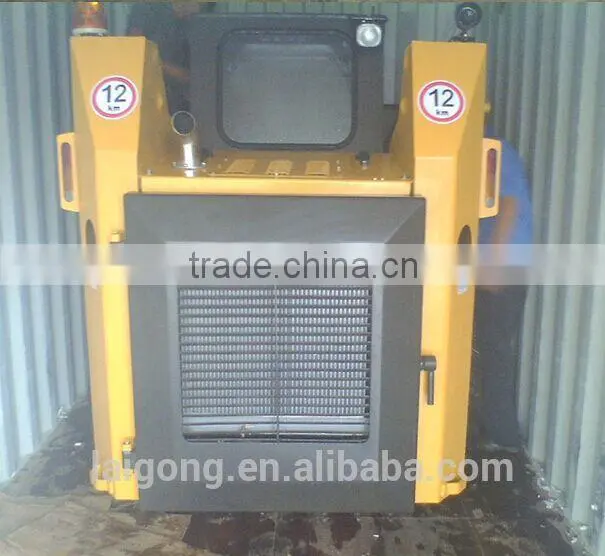

Some loading photos for your reference:

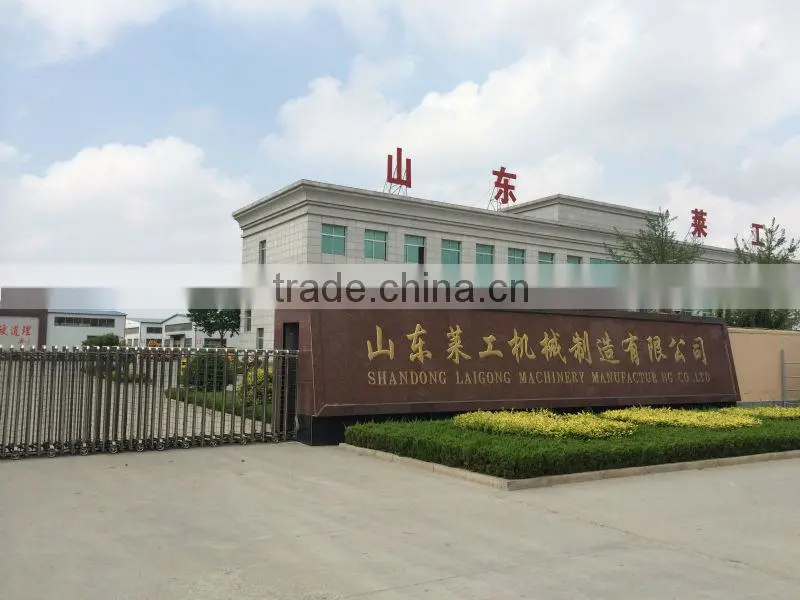

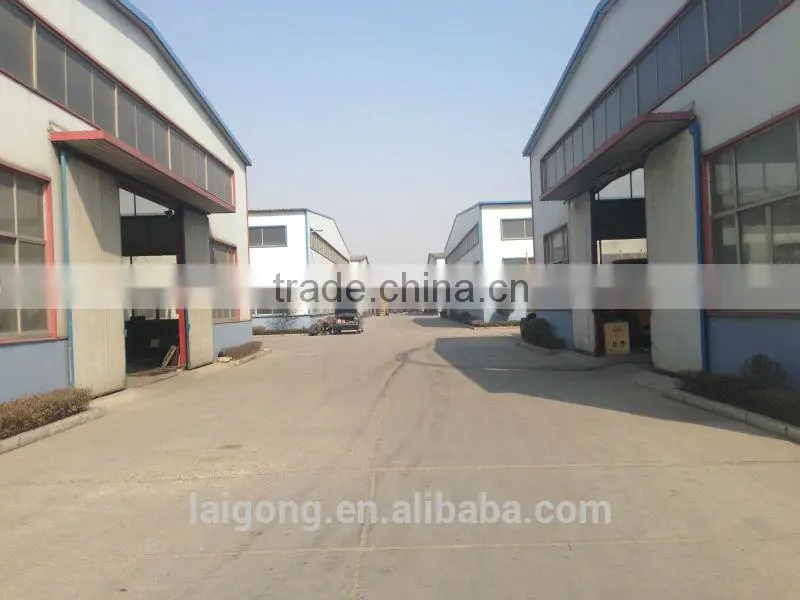

About our factory:
Our factory covers area of more than 100000m² with the building area of 35000m². At present it is the largest manufacturer of small construction machinery in China with annual output of loaders, forklifts and dump trucks more than 40000units. Mechanical gearbox of the dumpers, loaders is the company's patented products.
Other wheelloaders we supply:
small mini wheel loaders zl 04, zl 06, zl 08, zl 10, zl 12
front end wheel loader zl 15, zl 16, zl 18, zl 20, zl 25, zl 30, zl 50
If you want more details, please click the above model
