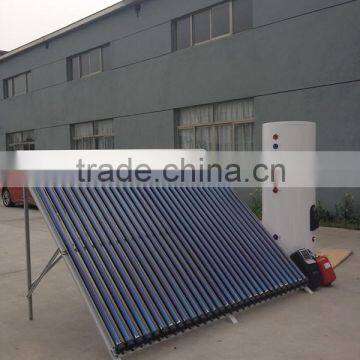

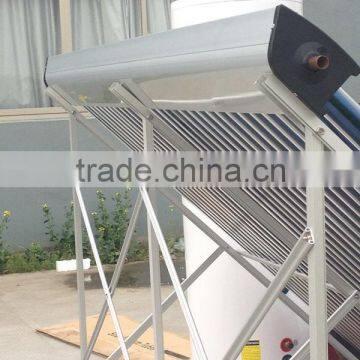

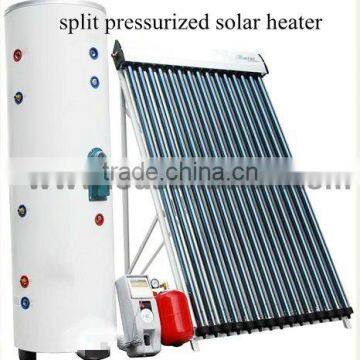

Help CenterSplit Pressured Vacuum Tube Solar Water Heater Systems
Related Products
-
Heat Pipe Solar Thermal CollectorUS$ 150 - 800MOQ: 10 Sets -
Split Pressurized Sunny Solar Water HeaterUS$ 150 - 800MOQ: 10 Sets
-
Split Pressurized Solar Water Heater,separate Solar Water Heater SystemUS$ 150 - 800MOQ: 10 Sets
-
High Efficient Split Pressurized Stainless Steel Solar Water System(Manufature)US$ 150 - 800MOQ: 10 Sets
-
High Efficient Split Pressurized Working Models Solar EnergyUS$ 150 - 800MOQ: 10 Sets
pressured solar solar water heater systems
Characteristic:
1. Collector separates with storage tank. The tank can be put in any place of house. And the collector can be put on the inclined roof or flat place.
2. Module design, arbitrary combination, harmony with the building perfectly.
3. Intelligent control and automatic operation.
4. Anti-freeze: No water inside the tubes when it works it can work as usual under -38C.
6. The system controller has the anti-freezing function is that the temperature circulation will operate while it reaches the fixed temperature.
7.Work at anytime and enjoyable.
Specifications:
1. Manifold (interior) material: red copper
2. Manifold (exterior) material: aluminum alloy
3. Tube dimensions: 58 x 1.800 mm / 47 x 1.500 mm
4. Vacuum tube coating material: AL-N-AL or AIN-SS-Cu
5. Insulation layer: rock wool
6. Pressure bearing: 6Bar=0.6MPa
7. Hail resistance: 25mm
8. The standards of vacuum tubes with heat pipe: 14, 16, 18, 20, 24, 30 tubes .
9.Water capacity: 150L, 200L, 250L, 300L, 500L
10.Daily efficiency: >= 55%(>=42% in winter)
11. Heat preservation: 72h to 80h
12. Electric heater: 1.5Kw to 3Kw
um tube solar water heater
Working principle:
split solar solar water heater systems principle:
1) The operation of the solar collector is very simple.
2) Solar absorption: solar radiation is absorbed by the solar tubes and converted into heat.
3) Solar heat transfer: heat pipes conduct the heat from within the solar tube up to the header pipe
4) Solar energy storage: water is circulated through the header, via intermittent pump cycling. Each time the water circulates through the header, the temperatures is raised by 5-10 C. Throughout the day, the water in the tank is gradually heated
