High quality popular solar water heater project

1.Solar collectors utilize the sun's free heat and do not have an operating cost.

2.Your existing pool pump circulates the water through the heater, usually located on the roof, and warms the pool.

3.The pump timer is set to operate during sunlight hours, usually 9am to 5pm.
4.An Automatic Control and Valve are sometimes used to regulate temperature, usually in northern climates.  Commercial pools and some larger residential pools may need a booster pump.

Non-pressurized Solar Project Benefits:
• Can extend swimming season
• up to 12 months depending on location*
• Ave. temp. rise up to 15-20º
• Have no operating costs
• No pollution, no fuel needed
• Usually last 20+ years
• Have a 10 Year warranty
• Quick and easy installation
• Minimal maintenance required

Features:

1.Be available in swimming pool, school, hotel, hospital , any other industrial or commercial .

2. Automatic water supply, good recycling for environmental protection.

3.Energy saving, no-pollution, no-harm

4.water heater system is controlled by microcomputer.

 Solar Project Series:

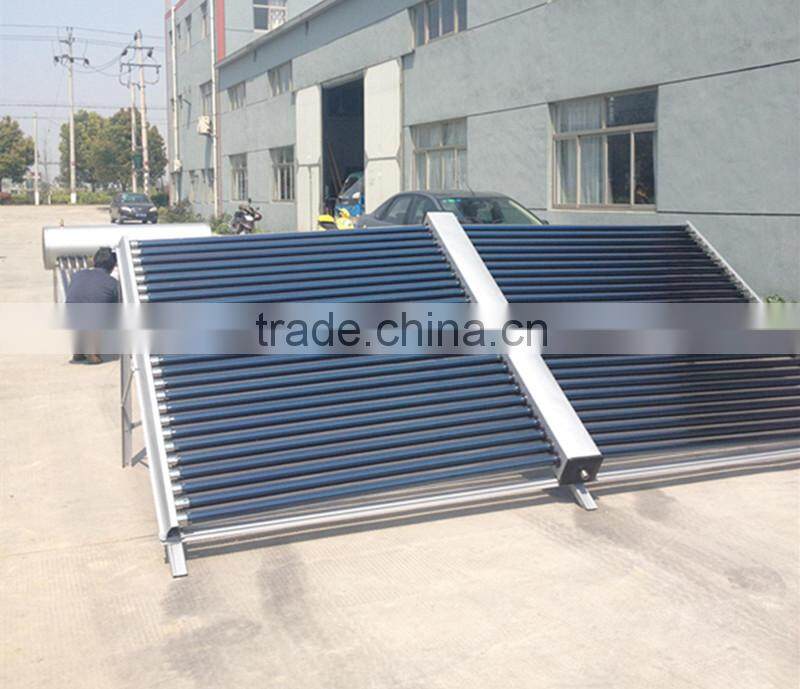

i. Vacuum Tube Non-Pressure Solar Collector

 ii. Item no.: OS-SCNV

 iii. Details:

1. Tube size: 47*1500mm, 58*1800mm.

2. Tube quantity: 20, 25, 30, 2×20, 2×25, 2×30 pieces.

3. Flow tube material: stainless steel.

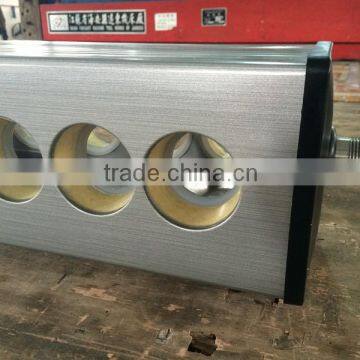

4. Manifold: outer shell--galvanized steel/stainless steel

5. Insulation layer: 3.5-4 cm polyurethane.

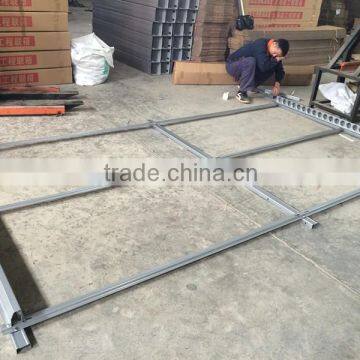

6. Stand: galvanized steel/stainless steel.

7. Low temperature resistance: more than -25°C.

8. Hail resistance: less than 25mm.

  iv. Vacuum Tube Non-Pressure Solar Collector

 v. Item no.: OS-SCNH

 vi. Details:

1. Tube size: 47*1500mm, 58*1800mm.

2. Tube quantity: 20, 25, 30, 2×20, 2×25, 2×30 pieces.

3. Flow tube material: stainless steel.

4. Manifold: outer shell--galvanized steel/stainless steel

5. Insulation layer: 3.5-4 cm polyurethane.

6. Stand: galvanized steel/stainless steel.

7. Low temperature resistance: more than -25°C.

8. Hail resistance: less than 25mm.

 Remark: OS meansOUSUN Solar

               SCNH means Solar Collector Non-Pressure(Horizontal)

vii. Heat Pipe Pressure Solar Collector

 viii. Item no.: OS-SCP

 ix. Details:

1. Tube size: 58*1800mm.

2. Tube quantity for single collector: 12, 15, 18, 20, 25, 30 pieces.

3. Flow tube material: copper.

4. Manifold outer shell: aluminum alloy.

5. Insulation layer: polyurethane/rockwool.

6. Stand: stainless steel/galvanized steel.

7. Working pressure: 0.7Mpa.

8. Low temperature resistance: more than -40°C.

9. Hail resistance: less than 25mm.

Remark: OS means OUSUN Solar

              SCP means Solar Collector Pressurized

We Design, Manufacture and deliver the sun’s unlimited and cheapest energy to your daily life.OU’SUN Solar Energy Technology Co., Ltd, With more than 10 years development and technology bring in, Products are acceptable and popular in foreigner country with serious quality control, on time delivery and good export service.
