solar pool water heater

Specifications

solar pool water heater:
1.For 5years warranty
2.2% free spare parts
3.Sample offer
4.OEM offer

 solar pool water heater



Characteristic:

This model works with high pressure, so it can be connected with city water directly. With the heat pipe in the vacuum tube, therefore no water in the tube, each tube can work alone, so the solar collector can work even one tube is broken.

1. Highly efficient absorber of high performance with daily average efficiency over 50%
2. Start up quickly, the water is heated rapidly by heat pipe which will transfer the heat energy into the tank
3. Withstand pressure of 6 bar, more comfortable to use
4. Simple structure, easy to assembly and install
5. Can be used all year even in the cold climate area
6. Long service life, can be used over 15 years



Specification:

1.Inner tank:SUS 304 2B food level stainless steel  thickness:1.2-1.5mm

2.Outer tank:Colored steel with painting/Stainless steel

3.Water Capacity:100L/120L/150L/200L/250L/300L/400L

4.Heat Preservation:55mm PU

5.heat pipe Vacuum tube:g47mm/1500mm  58mm/1800mm  70mm/2000mm

6.Tube quantity:12/15/18/20/24/30/36

7.Bracket:colored steel/stainless steel/aluminum alloy

8.Logo: Customer request

9. Color:Customer request

 uum tube solar water heater

 Working principle:

solar pool water heater also known as a whole unify syetem.Typically these systems will function by natural convection or heatpipes to transfer the heat energy from the collector to the tank,there will be no water going through the vacuum tubes,and if one tube broken, it will not affect the whole system, this system has a much better water pressure than the compact non-pressured one.

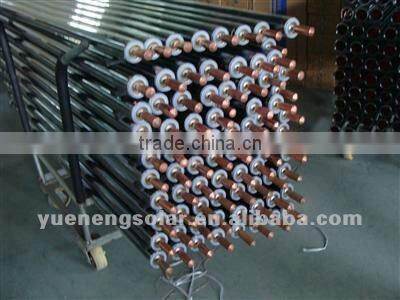

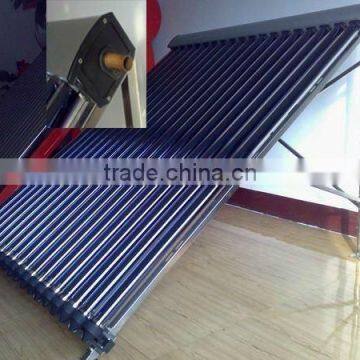

Product display:
