Help CenterCompact Non-pressured Solar System for Home
Related Products
-
Stainless Steel Vacuum Tube Solar TankUS$ 70 - 230MOQ: 10 Sets -
200L Unpressurized Solar GeyserUS$ 70 - 230MOQ: 10 Sets
-
Durable Non-pressurized Thermosyphon Diy Solar ProjectsUS$ 44.3 - 270.5MOQ: 1 Set
-
Hot Non-pressurized Freestanding How do Solar Water Heaters WorkUS$ 44.3 - 270.5MOQ: 1 Set
-
Sale Well Compact Non-pressurized Thermosyphon Solar Roof TilesUS$ 44.3 - 270.5MOQ: 1 Set
Specifications
solar system :1.For 5 -15years warranty!
2.For 2% free spare parts!
3.Sample offer!
4.OEM service!
water heater solar system
Water heater solar system Working principle:
This system uses the thermosiphon principle, Solar vacuum tube is pluged into the bottom of water tank,
The water is filled inside the solar vacuum tube, Solar vacuum tube transmit solar energy to heat energy,
The temperature of water inside solar vacuum tube is rising, As the thermosiphon principle, the hot water
rise up, and arrive in the water tank, the cold water inside the water tank go down the solar vacuum tube,
so the system runs by this circulation way until the water become very hot. The highest temperature of
water tank can be 95 degree Celsius, During this process, this system doesn't need any power, just
under the sunshine. It is a green product
Specification:
1. Water tank inner shell: 0.4~0.5mm SUS304-2B (food grade stainless steel).
2. Water tank outer shell: 0.4mm colored steel or 0.4 mm SUS304-2B.
3. Stand: galvanized steel with painting, or aluminium alloy, or stainless steel.
4. Water tank heat insulation layer: 50~60 mm polyurethane foam.
Descripition |
water heater solar system |
Material of out tank |
0.31-0.4mm thickness color steel/ fluorine carbon steel |
Material of inner tank |
Food grade 0.31-0.4mm thickness SUS304 stainless steel |
Tank insulating layer |
55mm 45kg/m³ high-density polyurethane foamed |
Inlet and outlet hole |
Male G 1/2, 3/4 |
Max pressure |
0.05 Mpa |
Solar collector tube |
3.3 Borosilicate glass with N/Al coating |
Thickness of glass tube |
1.6mm |
Vacuum tube tightness |
P≤0.005 Pa |
Absorption |
as=0.93-0.96(AM1.5) |
Emission ratio |
εh=0.04-0.06(80C±5C) |
Idle sunning property parameters |
Y=220~260m2.C/KW |
Average heat loss coefficient |
ULT=0.6~0.7W/(m2.C) |
Bracket: |
1.5mm thickness Galvanized Steel |
Structure of tank: |
4 holes for air vent,overflow,water inlet and outlet,electric heater |
Welding: |
Argon arc welding |
Fastening pieces: |
Made of stainless steel screw |
Absorber area |
1.686 m² |
Tube quantity |
24-30 tube 58*1800mm |
Tank capacity |
250L |
|
|

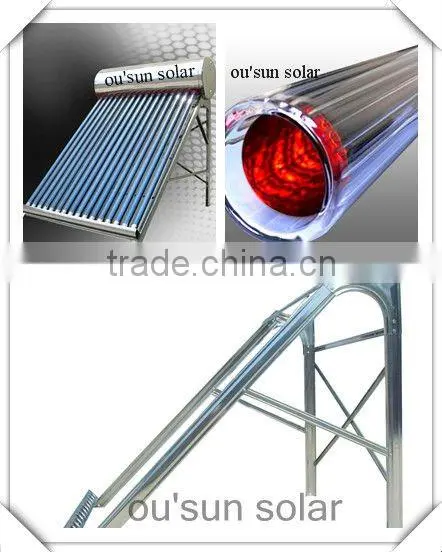

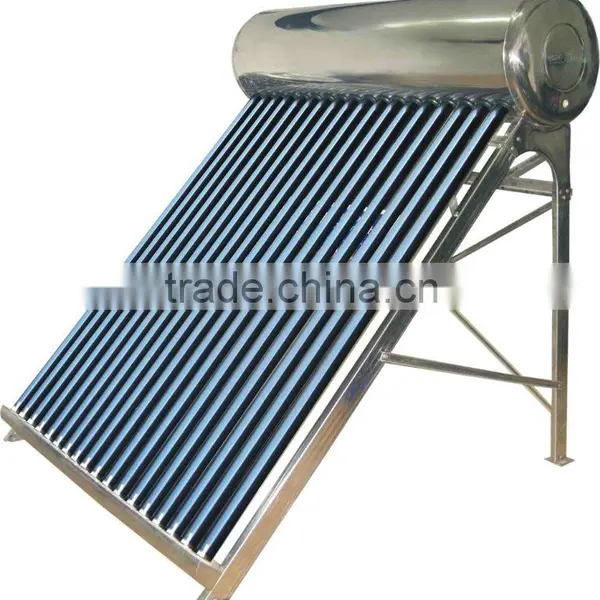

Product display:
