Specifications
Brazil Solar Water Heater1) Anytime hot water, Any temperature you want
2) 2% FREE SPARE PARTS
3) Sample offer
4) OEM

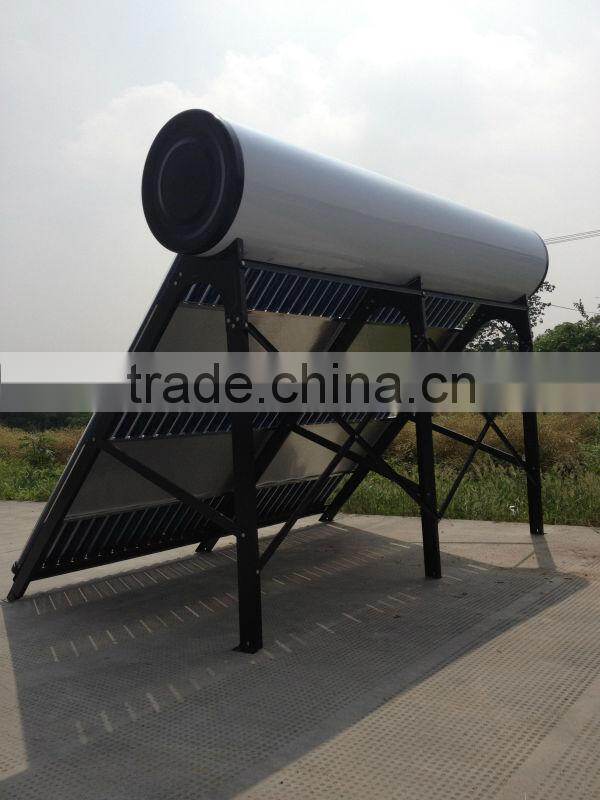

1. 25 Degree Copper Pipe Pressurized Brazil solar Hot water heater Characteristics:
-------------------------------------------------------------------------------------------------------------------------
This model works with high pressure, so it can be connected with city water directly. With the heat pipe in the vacuum tube, therefore no water in the tube, each tube can work alone, so the solar collector can work even one tube is broken.
- Highly efficient absorber of high performance with daily average efficiency over 50%
- Start up quickly, the water is heated rapidly by heat pipe which will transfer the heat energy into the tank
- Withstand pressure of 6 bar, more comfortable to use
- Simple structure, easy to assembly and install
- Can be used all year even in the cold climate area
- Long service life, can be used over 15 years
2. Working Principle:
---------------------------------------------------------------------------------------------------------
3. Scope of delivery:
---------------------------------------------------------------------------------------------------------

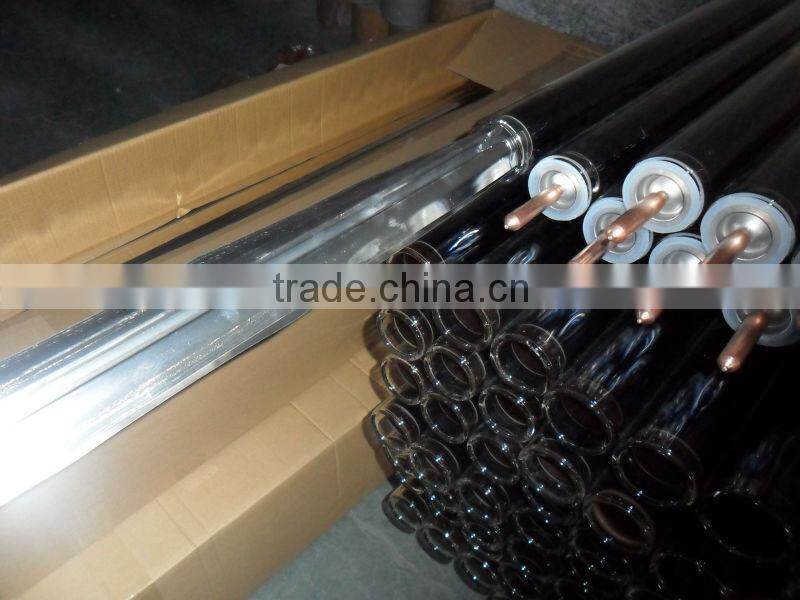

- Vacuum tubes
- Tank

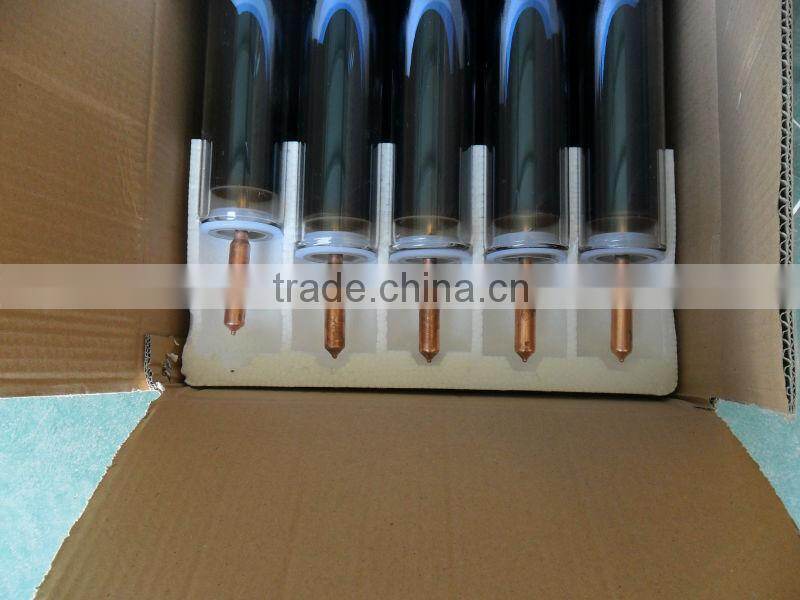

- Heat pipe
- Conducting strip

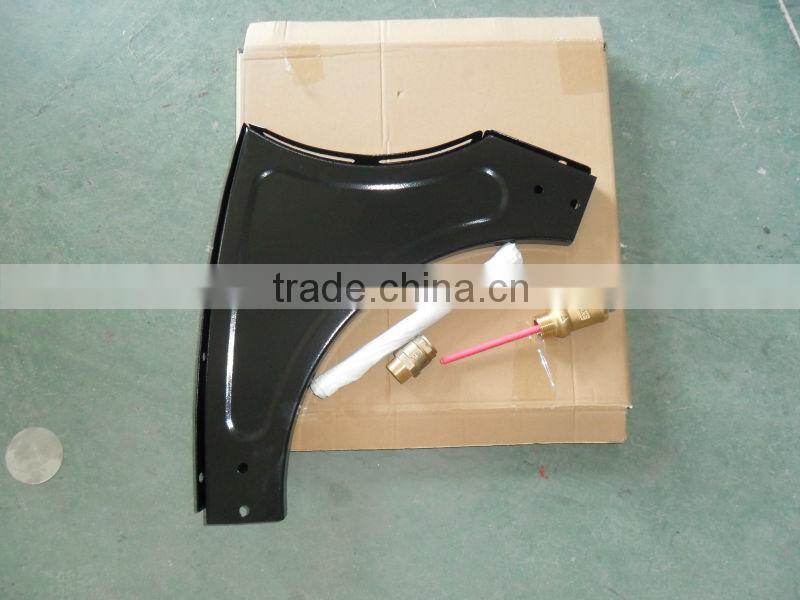

- Bracket
- T/P valve
- Anode
- Check valve

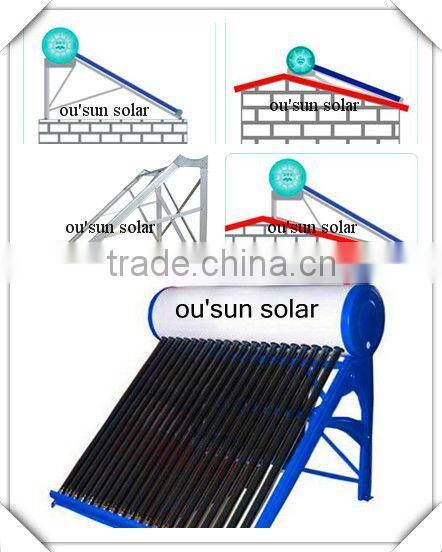

4. Installation types:
-----------------------------------------------------------------------------------------------
Pitched roof, flat roof
5. Specification:
--------------------------------

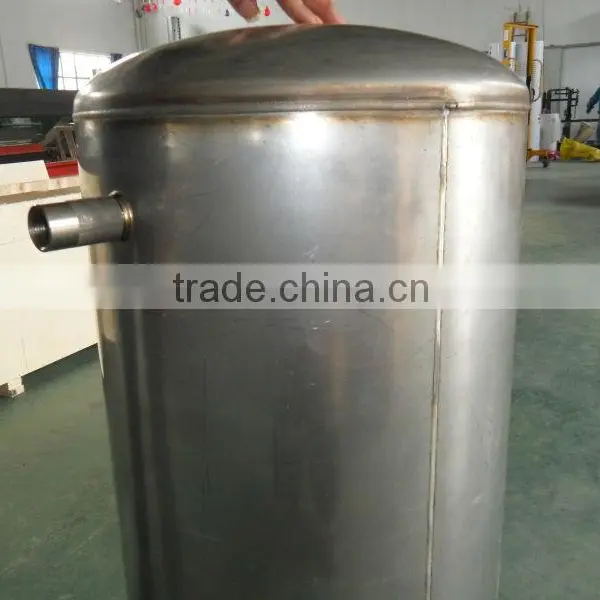

- Water tank inner shell: 1.0~2.0mm SUS304(316)-2B (food grade stainless steel).
- Water tank outer shell: 0.4mm colored steel or 0.4mm SUS304-2B .

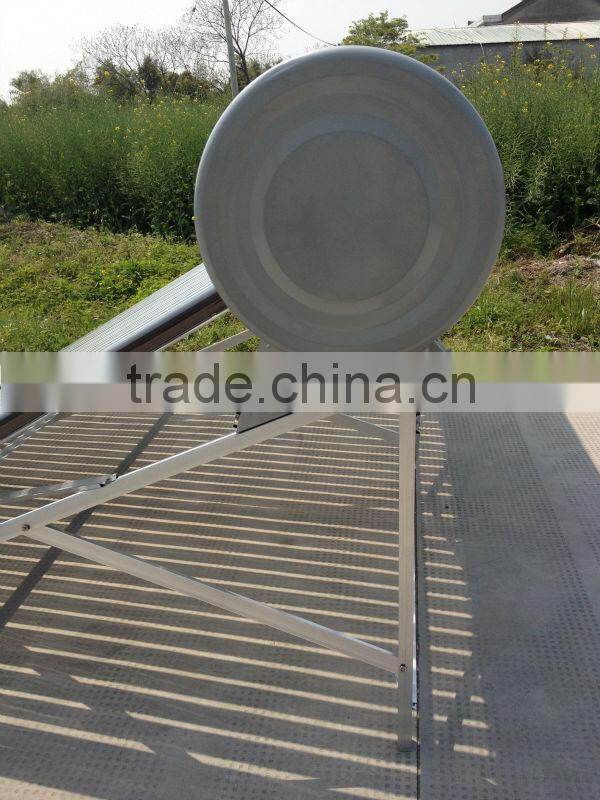

- Stand: galvanized steel with painting, or aluminium alloy, or stainless steel.
- Water tank heat insulation layer: 50~60 mm polyurethane foam.
- Stand angle: 15 degree, 20 degree, 25 degree, 30 degree, 38 degree, 45 degree for flat roof
Model |
All glass solar vacuum tube |
Water tank |
||||
Qty |
Diameter |
Length |
Inner Diameter |
Outer Diameter |
Capacity |
|
TYD-SHP58/1.8-12 |
12pcs |
58mm |
1800mm |
377mm |
470mm |
100 liter |
TYD-SHP58/1.8-18 |
18pcs |
58mm |
1800mm |
377mm |
470mm |
150liter |
TYD-SHP58/1.8-24 |
24pcs |
58mm |
1800mm |
450mm |
550mm |
200 liter |
TYD-SHP58/1.8-30 |
30pcs |
58mm |
1800mm |
450mm |
550mm |
250 liter |
TYD-SHP58/1.8-36 |
36pcs |
58mm |
1800mm |
450mm |
470mm |
300 liter |
TYD-SHP58/1.8-48 |
48pcs |
58mm |
1800mm |
450mm |
470mm |
400 liter |
TYD-SHP58/1.8-60 |
60pcs |
58mm |
1800mm |
365mm |
470mm |
500 liter |

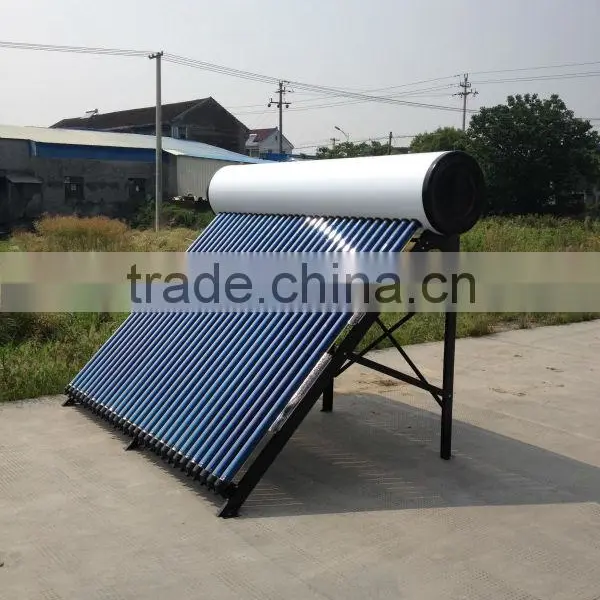

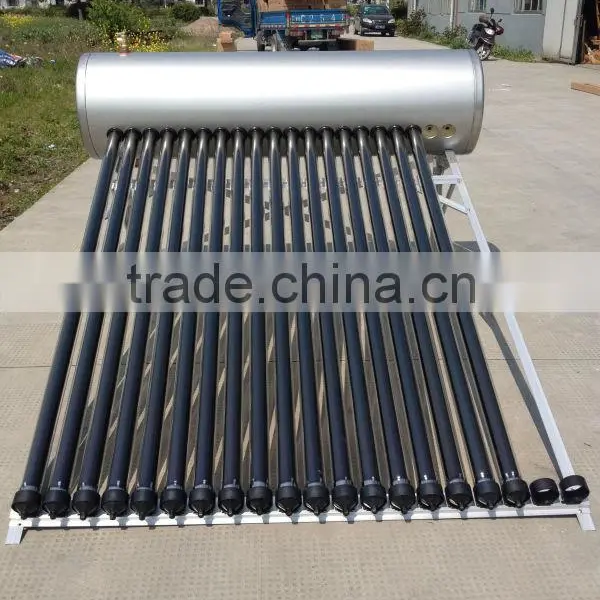

6. Product Model:
--------------------------------
Different Outer Tank Material is available. Different frame degree to match different place.
Production follow your request 100%.

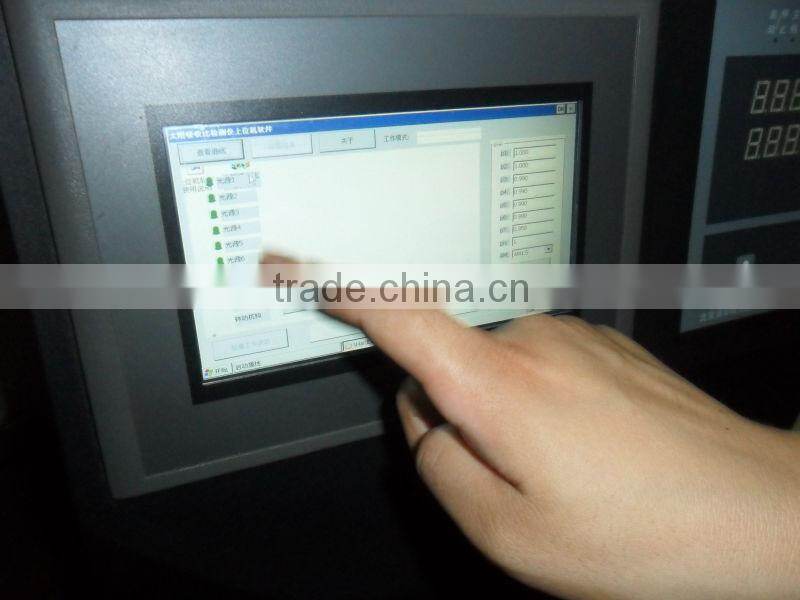

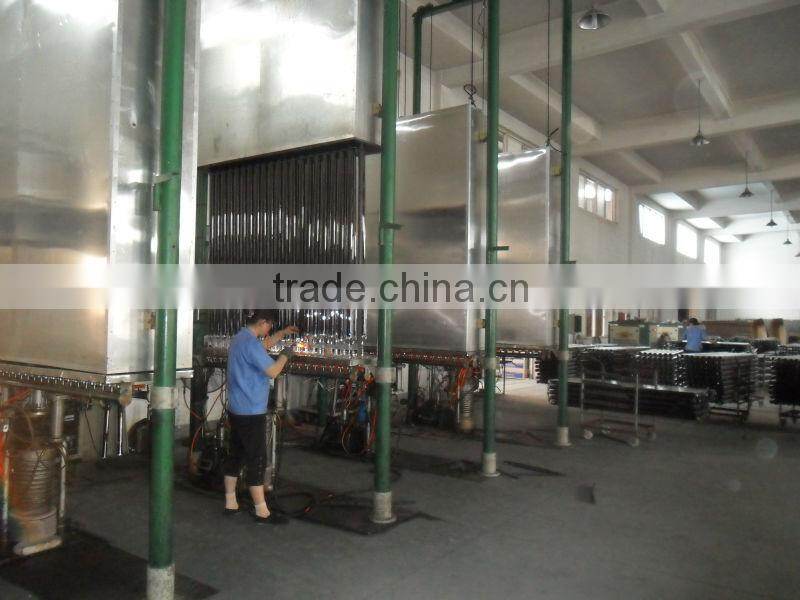

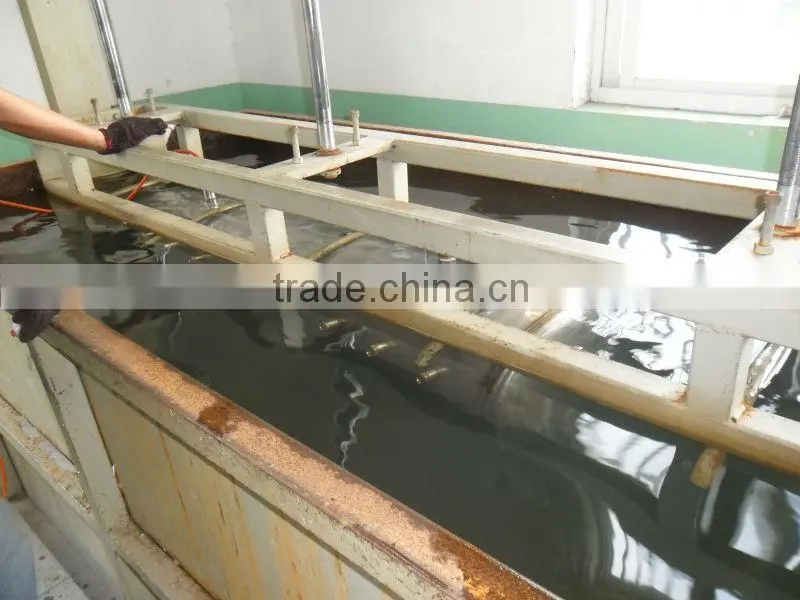

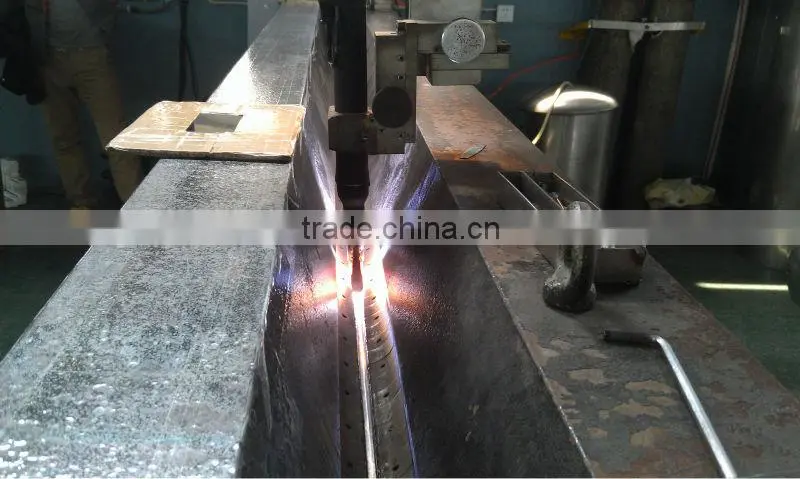

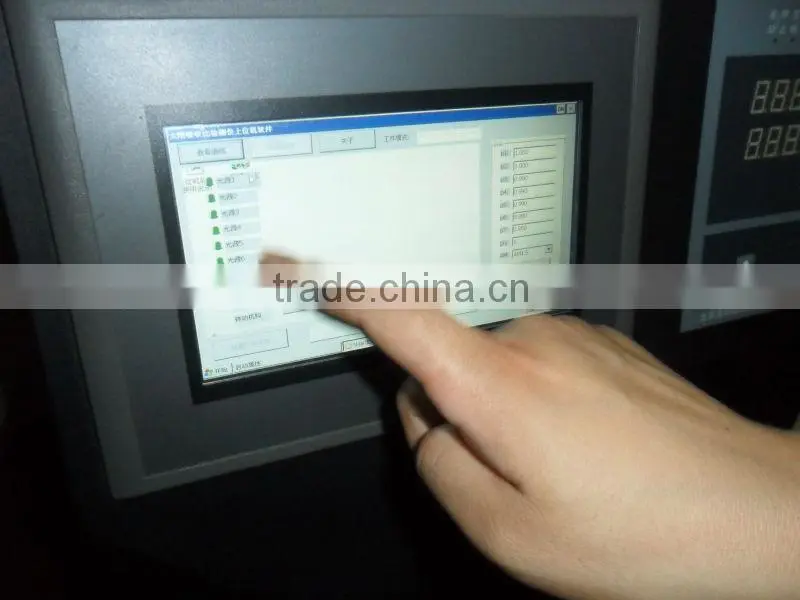

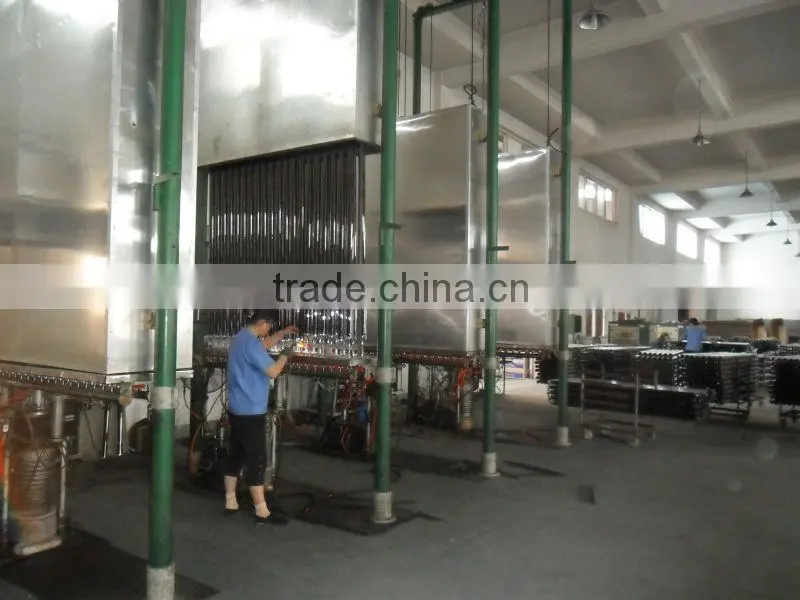

7. Workshop Show:
--------------------------------------------------------------------------
7-10 days one HQ.

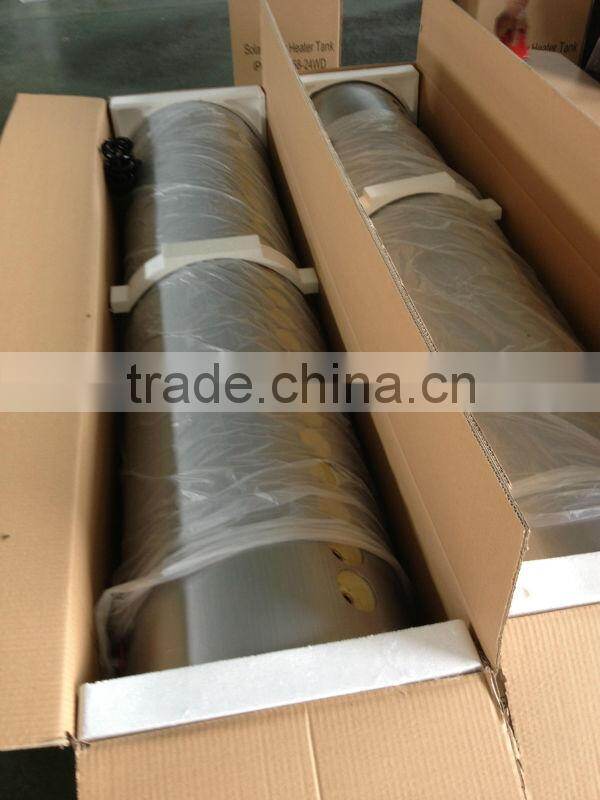

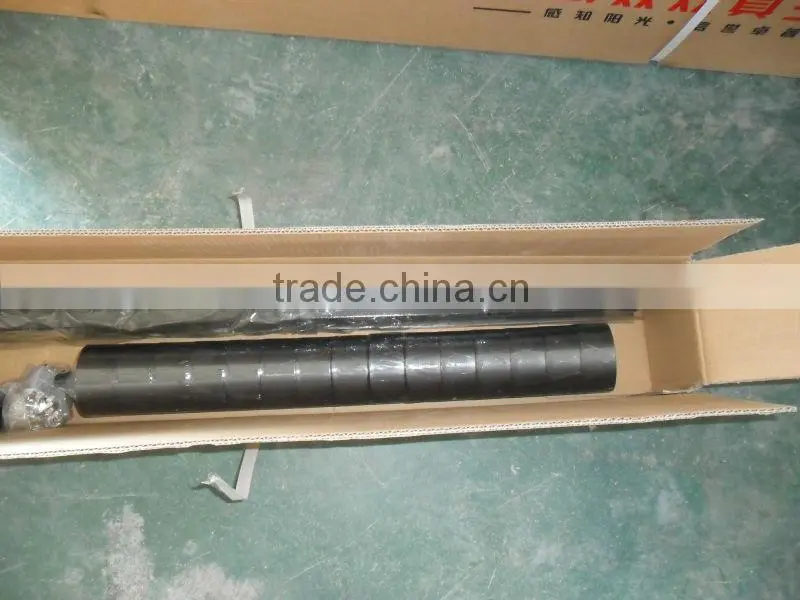

8. Packgae and Loading:
-------------------------------------------------------------------
Best quality of carton for container purchase, Wooden package for test purchase.
We are serious production company, and we are gratefully to meet you who is also serious.
Stable Quality, Attentive Service, Delivery Timely
Welcom to visit and join us, OUSUN Solar will be your best partner!
