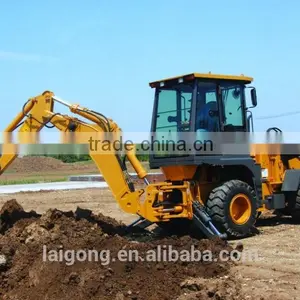

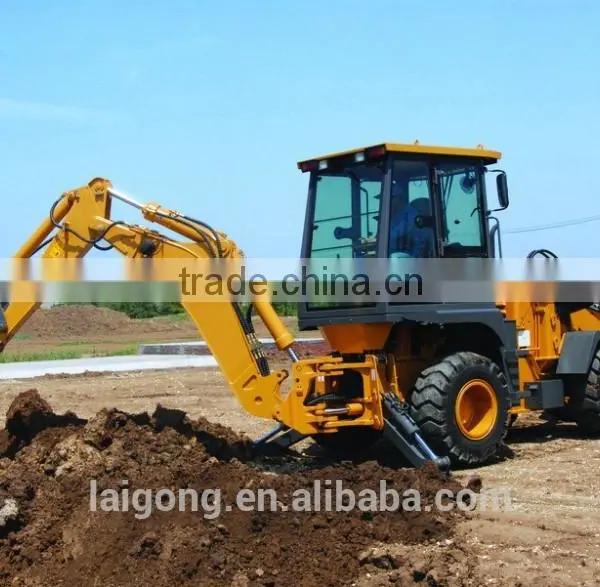

WZ30-25 type Compact four drive backactor loader

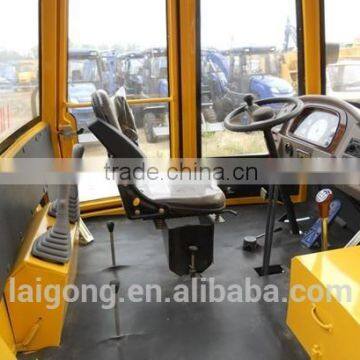

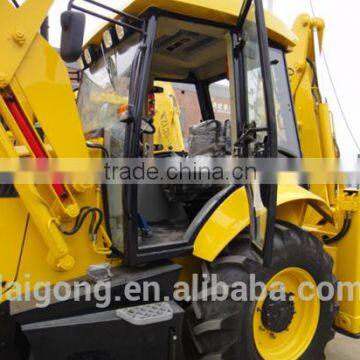

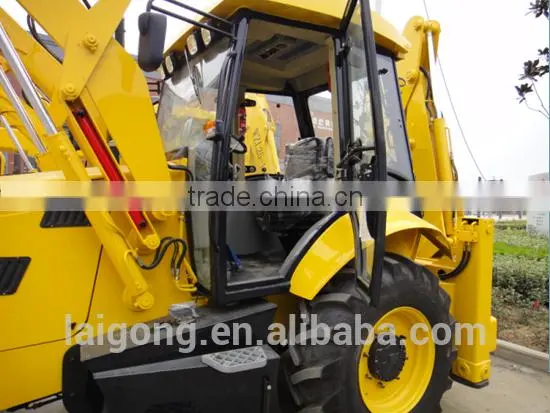

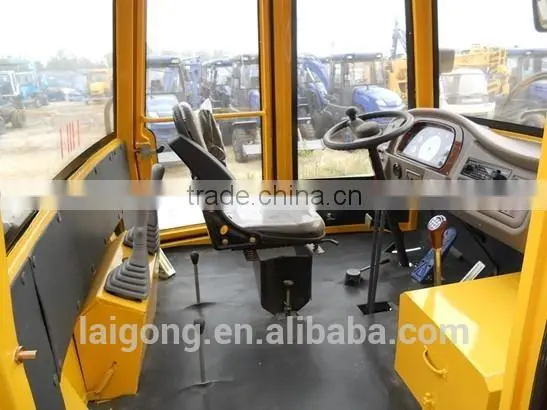

Cab: Cab can be replaced independently,Indoor with a strong air-conditioning system, during hot and cold environment,Comfortable working, multi-band car radio, mp3 players, car stereo allows you to work more enjoyable.Easy to operate the hydraulic tank, fuel tank, they are also independently replaceable, and are in low places,

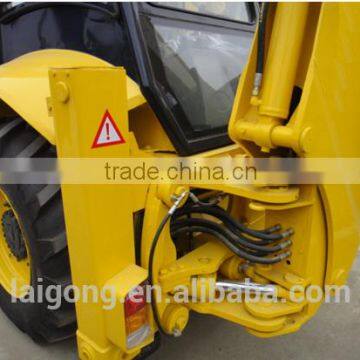

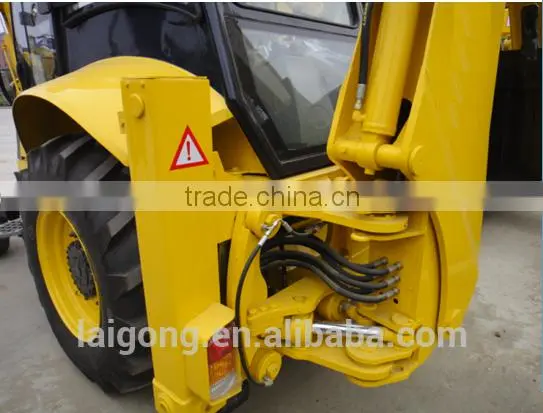

Whole frame: The machine adopts special backhoe loader frame, using the whole welded structure, high strength characteristics.H-leg straight leg, during mining, crushing, lifting heavy objects, the operator can feel the stability of H-type super straight legs, independent control of left and right legs can make the machine on slopes or rough terrain easily get on the horizontal position.
Working device: Load-side adopts a unique eight-bar linkage that automatically keep the bucket level when the loading arm lift bucket . According to need, you can also add some attachments, such as a multi-bucket, fork, log grappler and so on.
Travel System:Travel System adopts hydrostatic drive. Using German technology shift driven front axle.
Hydraulic System:Main pump adopts Germany Rexroth pump technology, Chinese wellknown enterprises produce the pump.
All excavators adopts open hydraulic system, with good micro performance, and make the operation much stabler,
Power system
It adopts Cummins engine is optional, B3.3T-C80, power is 60 kw.
Specification:
Weight |
7200 (kg) |
Overall dimensions (L*W*H) |
5600* 2200*2700 (mm) |
Bucket width |
700 (mm) |
Digging bucket capacity |
0.25 (m³) |
Wheel base |
2300 (mm) |
Mini. ground clearance |
250 (mm) |
Loading bucket capacity |
0.96 (m³) |
Max. dump height |
2600 (mm) |
Dump distance |
700 (mm) |
Max.dumping height |
2600 (mm) |
Dumping reach |
700 (mm) |
Any place unload degree |
45 (°) |
Max. raise force |
60 (kN) |
Mix. swing radius |
6000 (mm) |
Max. digging depth |
3500 (mm) |
Max. digging radius |
5600 (mm) |
Max. grade ablity |
20 (°) |
System pressure |
18Mpa |
Engine information |
|
Model |
Cummins B3.3T-C80 |
Rated power |
60 (KW) |
Rated speed |
2200 (r/min) |
|
|
Type specifiction |
|
Front tyre |
10-16.5 |
Rear tyre |
15-19.5 |
We have exported to Russia, Maylasia, India, Uzbekistan,Japan, Danmark, Africa and Latin America.
Some loading photos for your reference:
About our factory:
Our factory covers area of more than 100000m² with the building area of 35000m². At present it is the largest manufacturer of small construction machinery in China with annual output of loaders, forklifts and dump trucks more than 40000units. Mechanical gearbox of the dumpers, loaders is the company's patented products.
1. Question: Can we make it according to our request?
Answer: yes, the bucket, the tyres, discharge height...we can produce according to your situation.
2. Question: Can we visit the factory?
Answer: welcome, the nearest airport is Qingdao, we can get there to pick you up.
3. Question: How is the shipment?
Answer: usually it ships by sea to your destination seaport. one 40HQ quantity (1-3 units depends on the loader model) will be more economic than one 20FT container quantity( 1unit).
