Mini loader backhoe digging machine
A backhoe loader, also called a loader backhoe, digger in layman's terms, or colloquially shortened to backhoe within the industry, is a heavy equipment vehicle that consists of a tractor like unit fitted with a shovel/bucket on the front and a small backhoe on the back. Due to its (relatively) small size and versatility, backhoe loaders are very common in urban engineering and small construction projects (such as building a small house, fixing urban roads, etc.) as well as developing countries. This type of machine is similar to and derived from what is now known as a TLB (Tractor-Loader-Backhoe), which is to say, an agricultural tractor fitted with a front loader and rear backhoe attachment.
Specification:
Weight |
7200 (kg) |
Overall dimensions (L*W*H) |
5600* 2200*2700 (mm) |
Bucket width |
700 (mm) |
Digging bucket capacity |
0.25 (m³) |
Wheel base |
2300 (mm) |
Mini. ground clearance |
250 (mm) |
Loading bucket capacity |
0.96 (m³) |
Max. dump height |
2600 (mm) |
Dump distance |
700 (mm) |
Max.dumping height |
2600 (mm) |
Dumping reach |
700 (mm) |
Any place unload degree |
45 (°) |
Max. raise force |
60 (kN) |
Mix. swing radius |
6000 (mm) |
Max. digging depth |
3500 (mm) |
Max. digging radius |
5600 (mm) |
Max. grade ablity |
20 (°) |
System pressure |
18Mpa |
Engine information |
|
Model |
Cummins B3.3T-C80 |
Rated power |
60 (KW) |
Rated speed |
2200 (r/min) |
|
|
Type specifiction |
|
Front tyre |
10-16.5 |
Rear tyre |
15-19.5 |
We have exported to Russia, Maylasia, India, Uzbekistan,Japan, Danmark, Africa and Latin America.

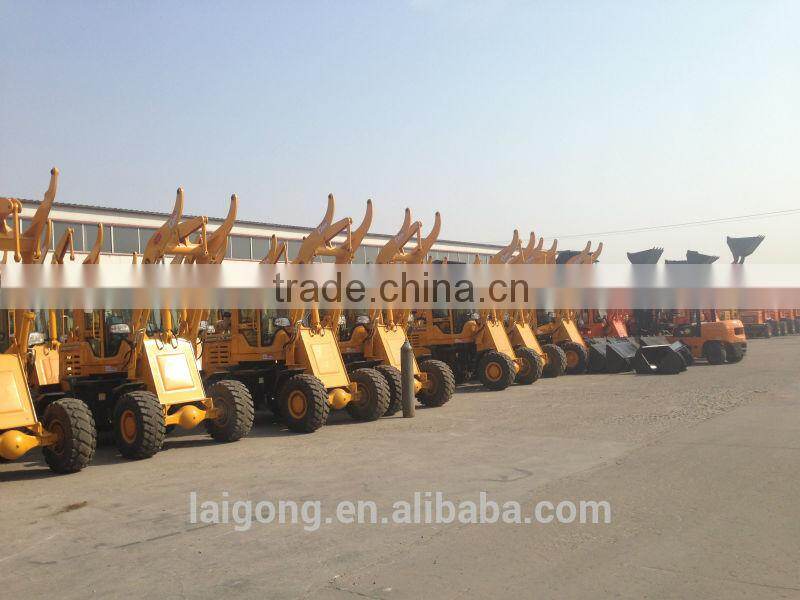

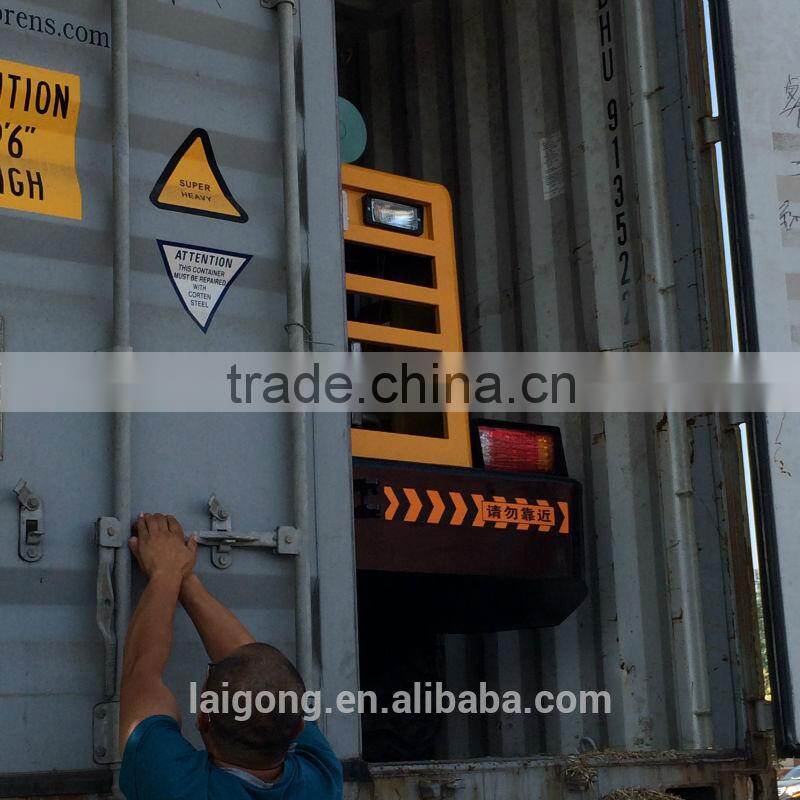

Some loading photos for your reference:

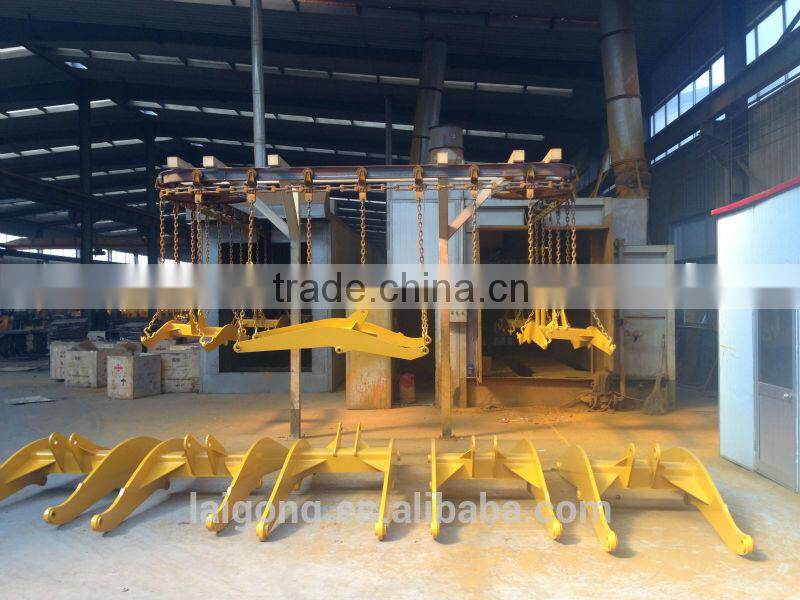

About our factory:
Our factory covers area of more than 100000m² with the building area of 35000m². At present it is the largest manufacturer of small construction machinery in China with annual output of loaders, forklifts and dump trucks more than 40000units. Mechanical gearbox of the dumpers, loaders is the company's patented products.
1. Question: Can we make it according to our request?
Answer: yes, the bucket, the tyres, discharge height...we can produce according to your situation.
2. Question: Can we visit the factory?
Answer: welcome, the nearest airport is Qingdao, we can get there to pick you up.
3. Question: How is the shipment?
Answer: usually it ships by sea to your destination seaport. one 40HQ quantity (1-3 units depends on the loader model) will be more economic than one 20FT container quantity( 1unit).
