Ball & Spring Indexing Plunger Ball plunger 6500 series

Specifications

-Ball plunger
- Black oxided steel or stainless steel body
-M3-M20
-slot and hex head are available

Ball plunger, spring plunger, ball spring plunger.

- Black oxided steel or stainless steel body
-M3-M20
-slot and hex head are available

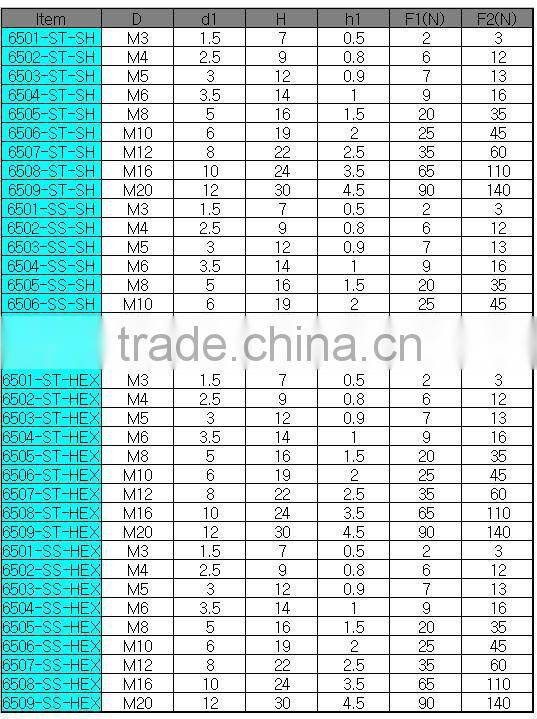

Technicall Information:



Material: Burnished and stainless steel.



Type: Slot head and Hexagonal head.



65XX-ST: Made by Black oxided steel



65XX-SS: Made by stainless steel



65XX-SH:  Slot head



65XX-HEX: Hexagonal head



All this series include:











Spring plungers are used in a wide range of applications for locating, positioning, indexing and positive locking. Index plungers are used in a variety of industries:

• Machine and fixture design.
• Sports equipment.
• Medical aides.
• Aerospace.
• Machine cabinets.

We supply spring loaded black oxided steel or stainless steel plunger body.Thread size from M3 to M20.





Except these standard products,We also supply customized sulotions or OEM according to your sample or drawings.





Hygoal Components manufactures a diverse range of custom plastic and metal products at extremely competitive costs - all from our facilities in Ningbo, China. Our teams have over a decade of manufacturing and supply chain management experience. From design concept, to sample creation, mass production and shipping. And we ensure your product arrives on spec, on time and on budget.

Our manufactures range including :









With the technical capability to rival all manufacturing facilities. We have the knowledge, experience and manufacturing capabilities to meet all of your requirement in  customized  solutions . For details of Hygoal's manufacturing procedure, please see our custom manufacturing overview page  or contact with us.





Hygoal's Custom Manufacturing procedure:







	Submit a technical drawing or post a sample » Use our enquiry form to send us a technical drawing of your product along with a description and the estimated quantity you require. If you do not have a technical drawing in most cases we can also reverse engineer from a sample.
	48hr quote from Hygoal sales team » We leverage the very latest technology and communications tools to unite our global teams. We understand the importance of fluid and responsive interactions between all aspects of the manufacturing process, from factory and quality control to shipping and distribution. Submit a technical drawing today and we'll quote in just 48 hours.
	High quality rapid tooling » Upon quote approval and receipt of your deposit payment, we begin fabrication of your tooling. When only a small number of parts are required, tooling can represent a large proportion of initial cost, but we are confident that our tooling costs will not be beaten. When a greater quantity of parts are produced the relative cost of tooling shrinks dramatically.
	Samples to your door in 35 - 40 days » The next step sees the first samples off the production line, and delivery to your door - but not before they've passed our meticulous quality control checks. We pride ourselves on getting the job done right the first time; we've worked successfully with countless companies whom require a manufacturing partner capable of keeping to close tolerances throughout production. If adjustments do need to be made, we'll perform them quickly and efficiently.
	Mass production in 4 weeks from sample approval » With injection moulding and die casting machines from 15 tonnes up to 3000 tonnes, you can be sure that we're ready for mass production. Our engineers are fastidious in their attention to detail; its imperative for both customer and manufacturer that the goods are on spec; you won't accept second rate products - we won't produce them.
	Packaged, labelled and shipped to your door in 10 weeks from sample approval » We understand our customers require much more than just first rate products, they need them securely packed and shipped to their destination on time. Our supply chain has been in successfull operation for over a decade, we'll even manage and monitor all customs, handling fees and insurance.
