M10-M20 With Lever Indexing Plunger 8400 Series

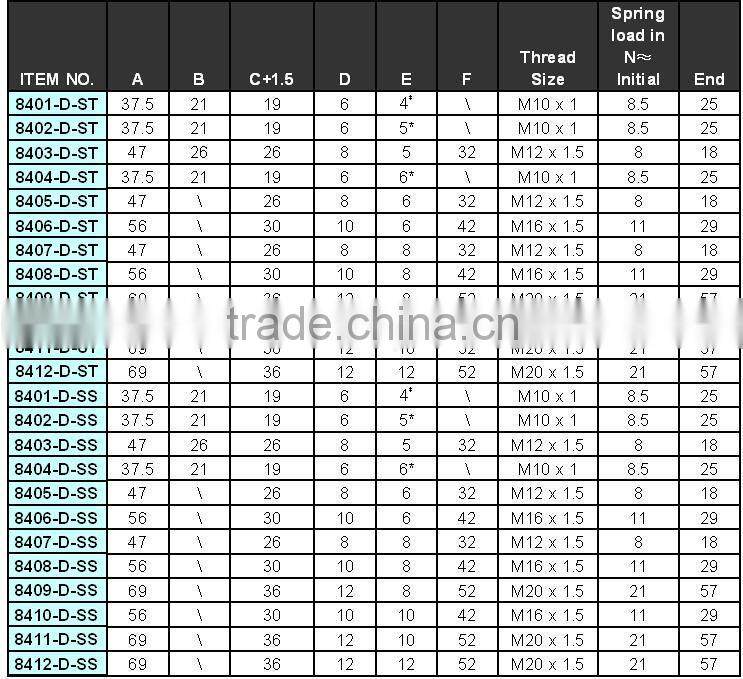

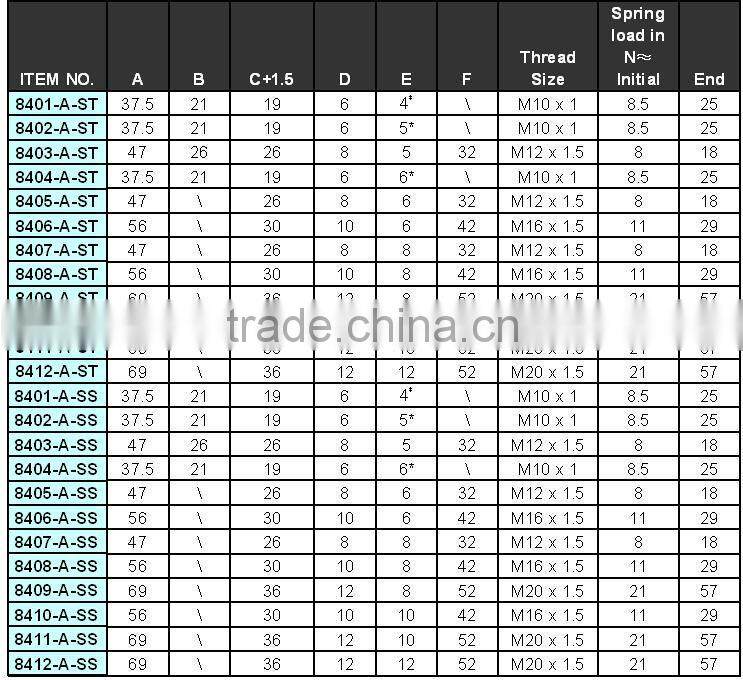

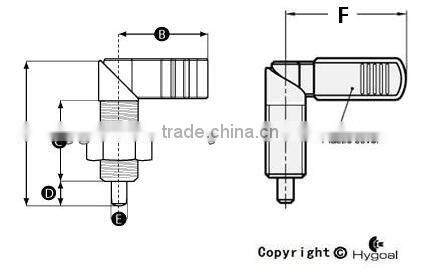

Specifications

Index plunger, Indexing plunger, knob plunger, spring plunger,pull ring plunger,lever indexing plunger

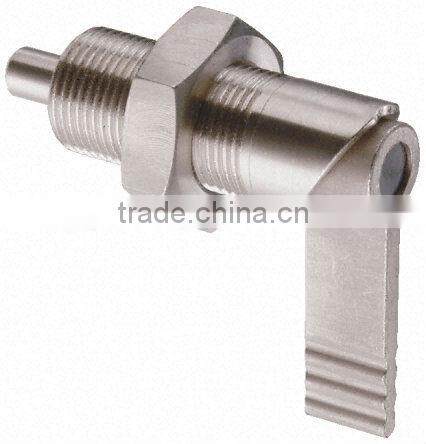

Hygoal 8400 series lever  indexing plunger with rest position are precisely mahined by CNC. there are Nickel plated and stainless steel 304 versions available,also there are locking nut at your choice.

the thread size from M10 to M20

-Fine turned and chemically Nickel plated or stainless steel body.

-M10-M20 thread are available
-with 90 degree locking rest position.

Index plungers are used in a wide range of applications for locating, positioning, indexing and positive locking. Index plungers are used in a variety of industries:

• Machine and fixture design.
• Sports equipment.
• Medical aides.
• Aerospace.
• Machine cabinets.

Technicall Information:

Threaded body: Fine turned and chemically Nickel plated or stainless steel 304.

Material:Hand Plastic cover ,Technopolymer (Polyamide PA) black, matt .

Plunger: Nickel plated or stainless steel

Applications: Lever indexing plunger are used when the plunger must be retracted quickly. By rotating the lifting lever by 180°, the plunger stops in the retracted position. The lever is kept in this position by a notch.

Type A: Without lock nut, without plastic cover.

Type B: Without lock nut, with plastic cover.

Type C: With lock nut, without plastic cover.

Type D: With lock nut, with plastic cover.

84XX-ST:Made by Nickel plated.

84XX-SS: Made by stainless steel 304.

All this series include:

Custom Manufacturing:

Except these standard products,We also supply customized sulotions or OEM according to your sample or drawings.
