Home > Industrial Equipment & Components > Valve > Ball Valve > Adjustable Hydraulic Pressure Switch

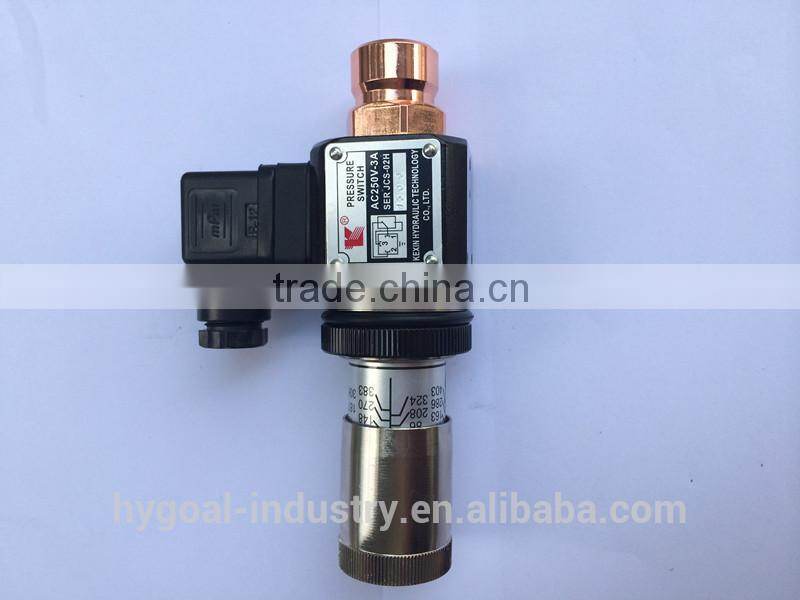

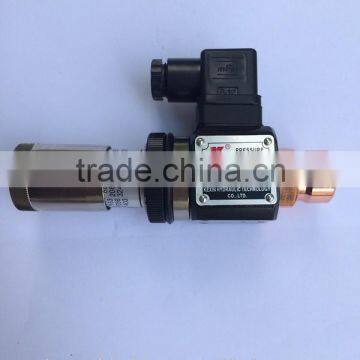

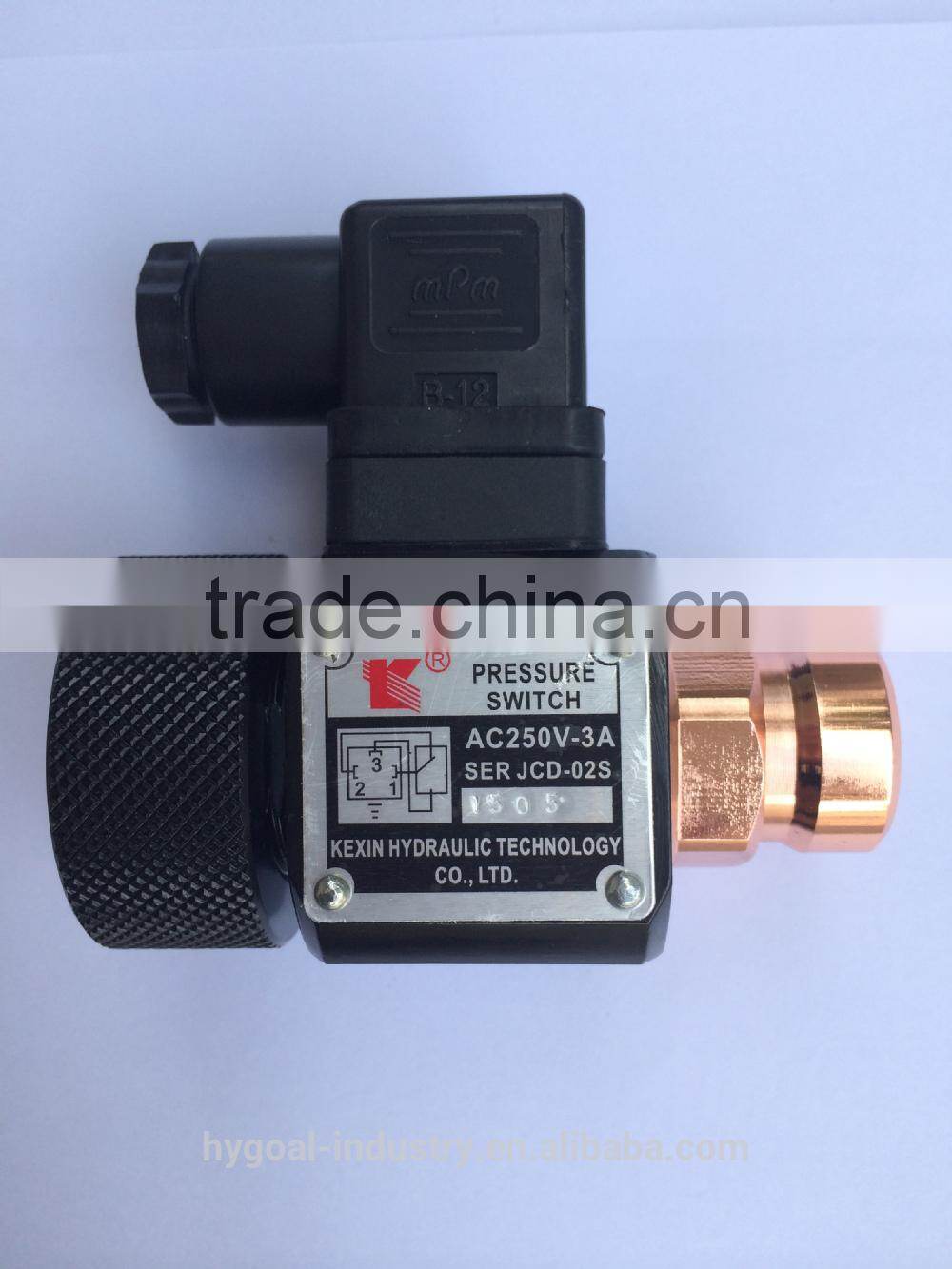

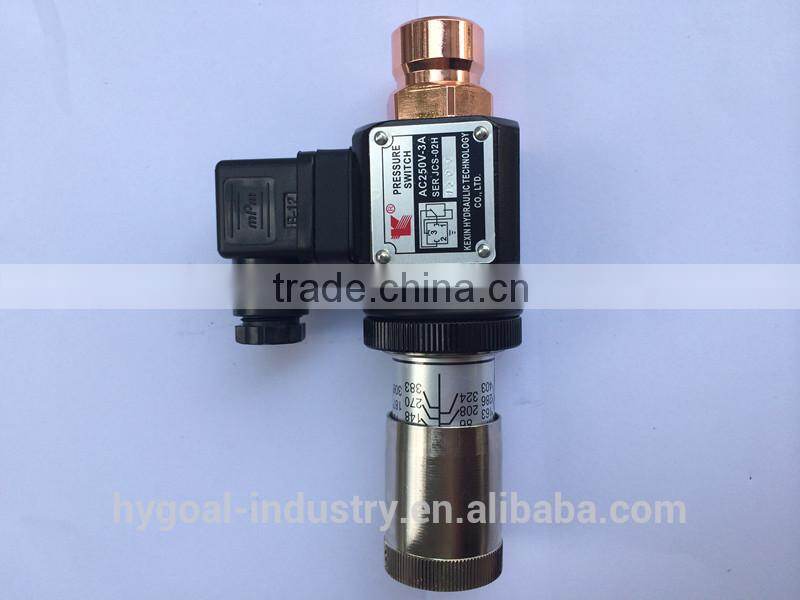

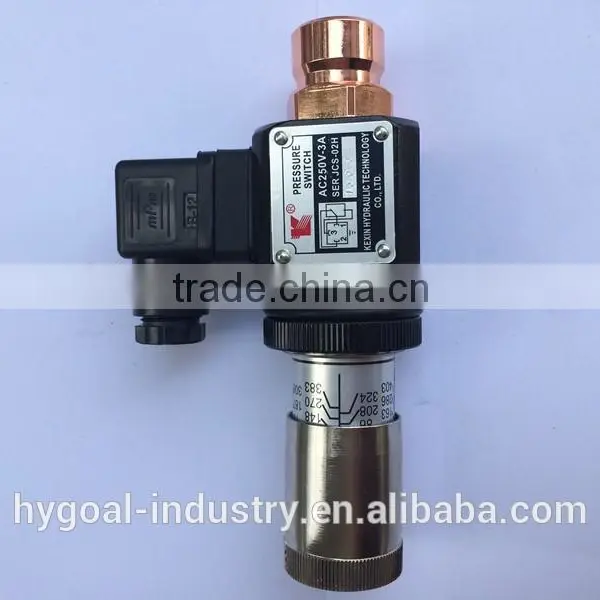

Adjustable Hydraulic Pressure Switch
US$ 18 - 25
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Check
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Most Popular Useful Throttle Check ValveUS$ 2 - 5MOQ: 5 Pieces -
Hot Sale,Excellent Quality Sanitary Ss Throttle Check ValveUS$ 2 - 5MOQ: 5 Pieces
-
Flow Power External Gear PumpUS$ 2 - 50MOQ: 50 Pieces
-
Hydraulic Lock / Balance ValveUS$ 1 - 40MOQ: 1000 Pieces
-
Hydraulic Pressure Balance ValveUS$ 1 - 40MOQ: 1000 Pieces
Standard or Nonstandard
Standard
Structure
Check
Pressure
Medium Pressure
Power
Hydraulic
Material
Casting
Temperature of Media
Low Temperature
Media
Oil
Port Size
Control
Place of Origin
Zhejiang, China
Model Number
JCS-02H
Brand Name
Kexin
Application
General
Electrohydraulic Pressure Switches are high performance devices that provide an electrical signal when sensed pressure rises above or falls below the selected setting.
The pressure switch is built-in microswitch, which interacts the pressure from the hydraulic system and delivers the electric signal to the solenoid directional valve or electromotor and make them change the direction, or warning ,even turn off the circuit, so as to make the system protection become true.
| Model | Pressure rate | Max pressure | Weight |
| JCS-02H | 50-350 kg/cm2 | 410 kg/cm2 | 1.0 Kg |
| JCS-02N | 30-210 kg/cm2 | 210 kg/cm2 | 1.0 Kg |
| JCS-02NL | 15-60 kg/cm2 | 70 kg/cm2 | 1.0 Kg |
| JCS-02NLL | 5-60 kg/cm2 | 70 kg/cm2 | 1.0 Kg |
| JCS-02S | 4-26 kg/cm2 | 70 kg/cm2 | 1.0 Kg |
| JCS-02N-1 | 30-210 kg/cm2 | 210 kg/cm2 | 1.0 Kg |
