Help CenterSquare Red 6 LED 30 Ton Outdoor LED Lighting Road Stud
Related Products
-
Driveway Resistance Compression>30ton Waterproof Aluminium ReflectorUS$ 1.3 - 13MOQ: 1000 Pieces -
Various Color Resist Compression>20ton Anti-corrasion Aluminum Markers With StudUS$ 1.3 - 13MOQ: 1000 Pieces
-
High Polished 100*100*20mm Anti-sun Aluminum Markers Without StudUS$ 1.3 - 13MOQ: 1000 Pieces
-
Road Safety PMMA Reflector 100*100*20mm Aluminum Reflective Road Stud Quality ChoiceUS$ 1.3 - 13MOQ: 1000 Pieces
-
Double/Single Side Sun-proof PMMA Reflector Cast Aluminium Road StudsUS$ 1.3 - 13MOQ: 1000 Pieces
1.Features
1.1 Environment Friendly:Using sunlight as light source, it has the characteristics of energy saving, environmental protection.
1.2 Long Lifespan:Work more than 3 years normally.
1.3 Long Working Time:It can work 100~200 hours after fully charged under the standard light source.
1.4 Temperature range: -20 ℃~+70℃.
1.5 Visibility:The intense brightness of the LED attract drivers’ attention easily at the distance of 500m.
2.Specifications
Name |
Solar Road Studs |
|
Material |
Cast Aluminum, Plastic, Glass |
|
Solar Panel |
Voltage |
2V/100-200mAH, 3.5V/78-120mAH and etc |
Material |
Monocrystalline silicon or polycrystalline silicon |
|
Battery |
Voltage |
1.2V/600-800mAH, 2.4V/600mAH, 2.4/650mAH |
Type |
NI-MH, Li-Po, Super-capacitor |
|
LED |
1/ 2/ 3 lights per side |
|
LED Color |
White, Red, Yellow, Green, Blue or customized |
|
Reflector Material |
PMMA, PS |
|
Working Model |
Flash (2Hz±20%) or steady(constant) |
|
Waterproof |
IP68 |
|
Visibility |
>500m |
|
Anti-compression |
20~30ton |
|

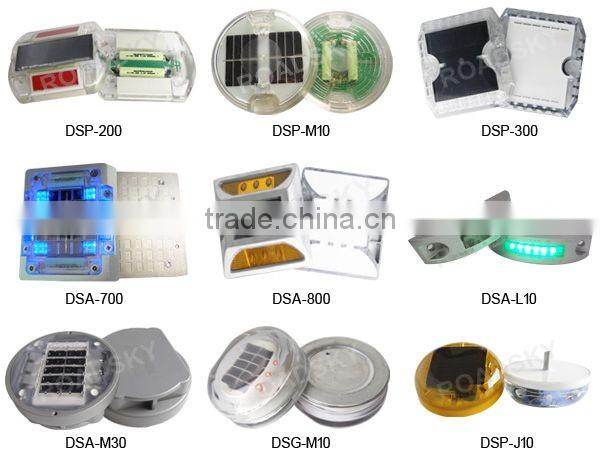

3.Different Models of Our Solar Road Stud
3.1 Aluminum Solar Road Stud
Single side or double sides or more sides are available upon request about the solar road studs, and the number of lights of all our solar road studs can be customized.

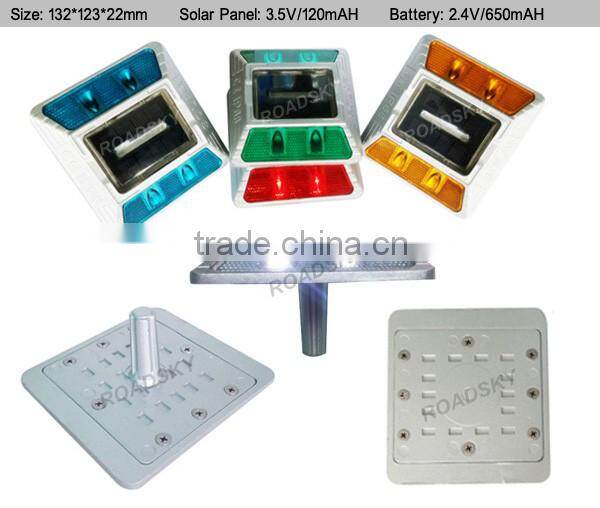

3.1.1 Model DSA-100 LED solar road stud
Size (L*W*H) : 132*123*22mm
Anchor: 51mm
Pressure resistance: 30ton

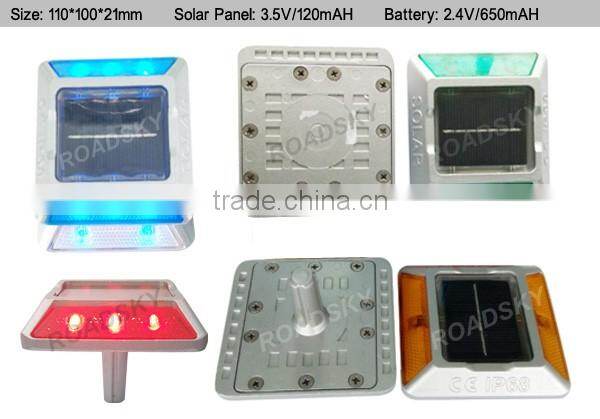

3.1.2 Model DSA-200 LED solar road stud
Size (L*W*H) :110*100*21mm
Anchor: 51mm
Pressure resistance: 20ton

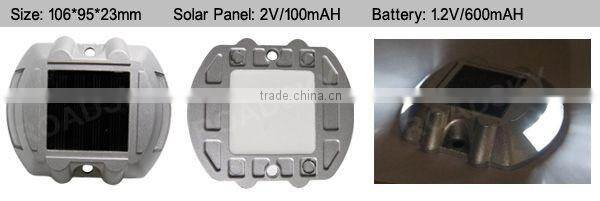

3.1.3 Model DSA-300 LED Solar Road Stud
Size (L*W*H) : 106*95*23mm
Pressure resistance: 20ton

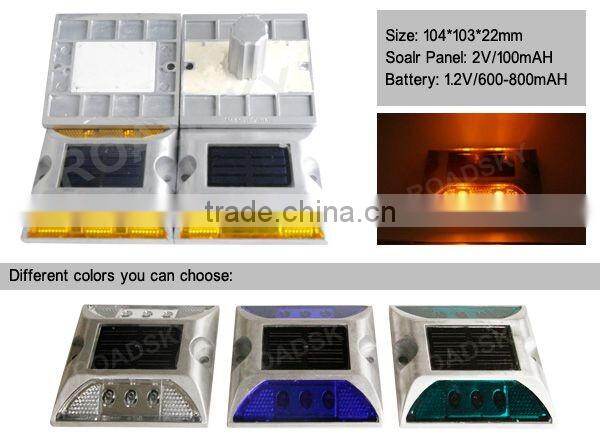

3.1.4 Model DSA-400 LED Solar Road Stud
Size (L*W*H) : 104*103*22mm
Anchor: 48mm
Pressure resistance: 20ton
3.1.5 Model DSA-500 LED Solar Road Stud
Size (L*W*H) : 115*110*23mm
Anchor: 51mm
Pressure resistance: 20ton

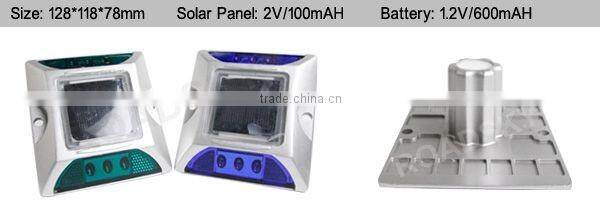

3.1.6 Model DSA-600 LED Solar Road Stud
Size (L*W*H) : 128*118*78mm
Anchor: 54mm
Pressure resistance: 20ton

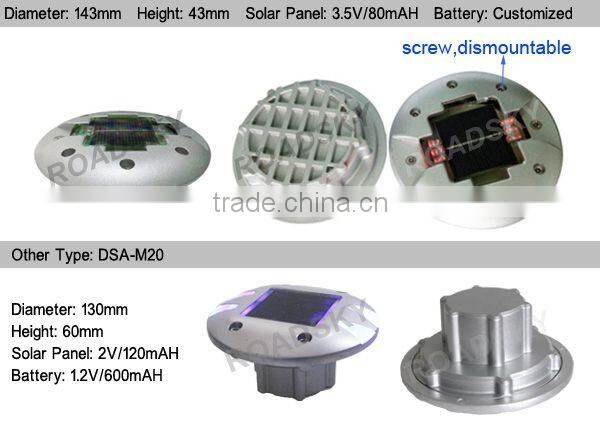

3.1.7 Model DSA-M10 Dismountable LED Solar Road Stud
Size: Diameter 143mm*Height 43mm
Pressure resistance: 30ton
3.2 Plastic Solar Road Stud

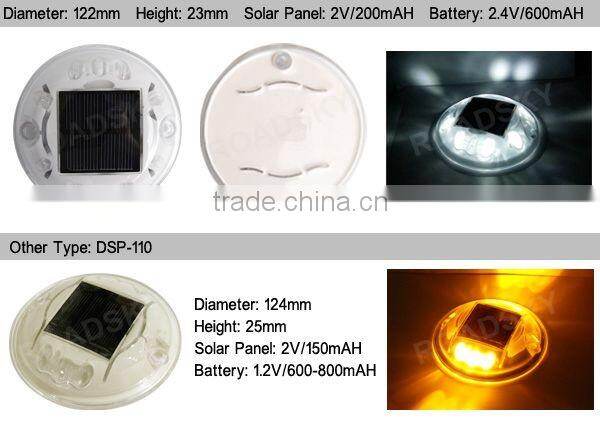

3.2.1 Model DSP-100 LED solar road stud
Size:Diameter 122mm*Height 23mm
Pressure Resistance: 20ton
4.Advantages

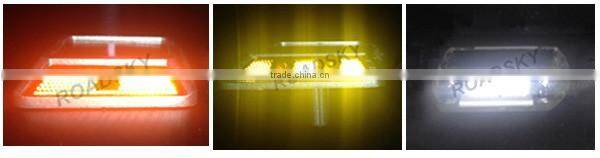

4.1 Reflectors
In addition to LED lights,our solar road studs can reflect light in the darkness

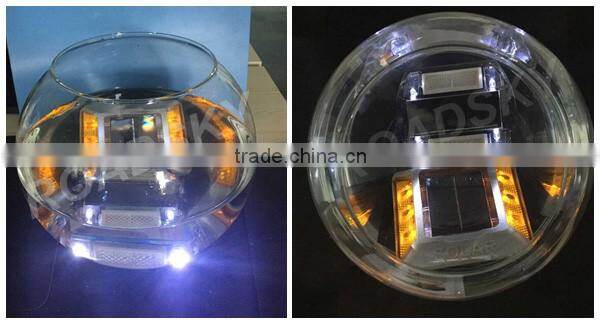

4.2 IP68 Waterproof
Good waterproof: Our LED solar road studs can work normally after 72 hours dipping in water.
5.Packaging & Shipping
6.Installation Notes
6.1 Before installing the solar road studs, please put barriers around the construction, especially on the traffic roads.
6.2 Before installing the solar road studs, please clean road with a brush, to make the surface of road smooth, clean and dry.
6.3 If the solar road stud has the anchor, please drill a hole which is 1cm deeper and 2mm wider than its anchor.
6.4 When you install the solar road stud, please put glue on the bottom evenly. Keep it in the right direction and press it into the road tightly.
6.5 On the highway, please install the solar road studs every 5 to 8 meters. On the ordinary roads, please install it every 3 to 5 meters.
6.6 After 2 hours of installation, you can check and fix solar road studs. After 4 hours of installation, the glue will dry completely.

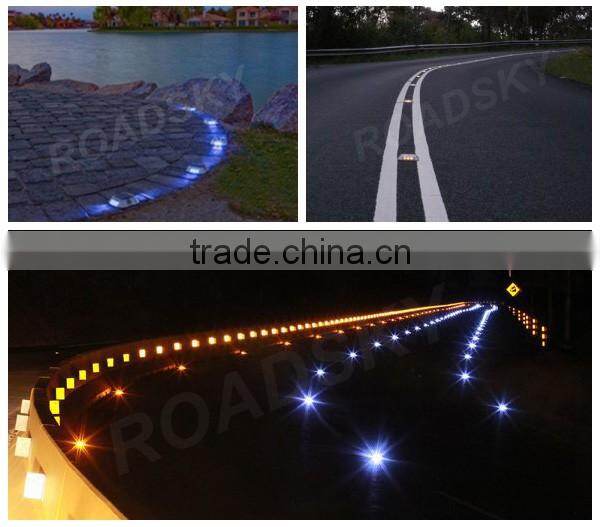

7.Our project
8.More Products
9.About us
NANJING ROADSKY TRAFFIC FACILITY CO., LTD is a reputable and reliable manufacturer specialized in Road Studs and other road safety products for many years.
Our Road Studs have been exported to Middle & South America, Middle East, East Europe, Southeast Asia, Africa and etc.
Our products include plastic road studs,aluminum road studs, cat eye glass road studs, road delineator and etc.
