35kV Power Transformer
- 0 per Month
- Chinese Main Port
- T/T
Product Details
Place of Origin: | China | Brand Name: | MEC | Model Number: | 35kV |
Usage: | Power | Phase: | Three | Coil Structure: | Toroidal |
Coil Number: | Other |
Product Description

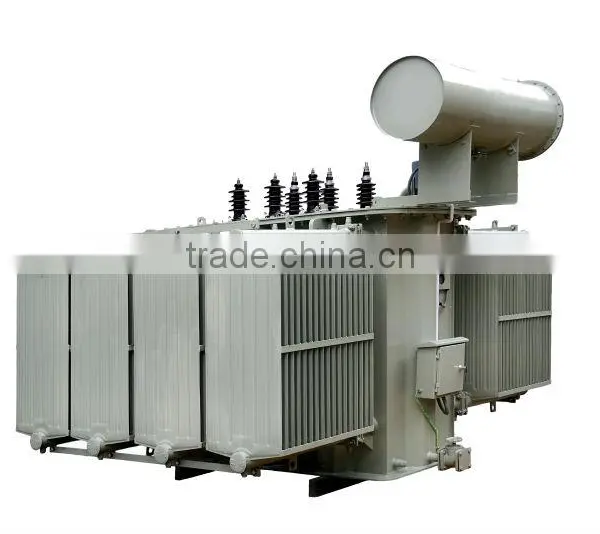

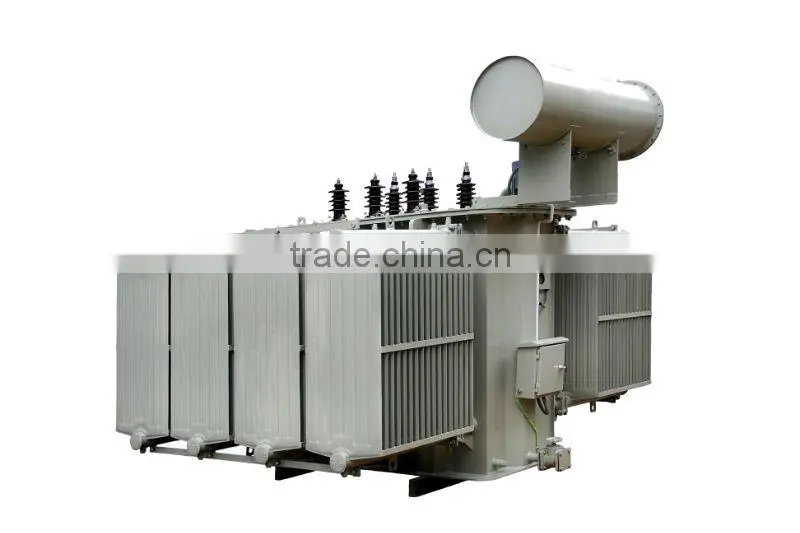

35kV Power Transformer
The 35kV power transformer is used in power plant, substation and large-scale industrial enterprises etc.
Our transformers are designed and manufactured with the latest technology. The transformers are conforming to IEC, ANSI, BS and other international standards.
We offer customized solutions for satisfying your special requirements.
Our advantages:
Quality Assurance
--From the very beginning, MEC ensures quality in every step to achieve the best quality.
Experience Sharing
--With more than 30 years’ experience in power industry, MEC brings you an optimized solution.
Global Service
--Wherever you are, MEC global network will support and provide you with value.
Quick Response
--In response to your needs without delay, MEC knows the value of your time.
Technical Parameters:
35KV POWER TRANSFORMER
Rated | Rated Voltage | Connection | Short-Circuit Impedance (%) | Losses (kW) |
| ||
HV | LV | No-load | Load | ||||
800 | 35±5% | 3.15 | Yd11 | 6.5 | 0.98 | 9.41 | 1.0 |
1000 | 1.15 | 11.54 | 1.0 | ||||
1250 | 1.41 | 13.94 | 0.9 | ||||
1600 | 1.7 | 16.67 | 0.8 | ||||
2000 | 2.18 | 18.38 | 0.7 | ||||
2500 | 2.56 | 19.67 | 0.6 | ||||
3150 | 7.0 | 3.04 | 23.09 | 0.56 | |||
4000 | 3.62 | 27.36 | 0.56 | ||||
5000 | 4.32 | 31.38 | 0.48 | ||||
6300 | 7.5 | 5.25 | 35.06 | 0.48 | |||
8000 | 35 | 3.15 | YNd11 | 7.2 | 38.48 | 0.42 | |
10000 | 8.7 | 45.32 | 0.42 | ||||
12500 | 8 | 10.08 | 53.87 | 0.4 | |||
16000 | 12.16 | 65.84 | 0.4 | ||||
20000 | 14.4 | 79.52 | 0.4 | ||||
25000 | 17.02 | 94.05 | 0.32 | ||||
31500 | 20.22 | 112.86 | 0.32 |
