Bearing Mounting
- 10 Unit / Units per Month
- Tianjin China
- T/T
- CF24 Stud Type Track Roller Bearing Bolt type needle roller bearing
- RNA 6900 NA 6900A series needle roller bearing with inner ring
- 15*22*12 15*22*12.5 power tools HK needle roller bearing
- Spinning machine bottom roller bearings LZ3224
- AXK0816TN needle roller thrust bearing
- CF20 track roller bearing with stud cam follower
Product Description
Product description:

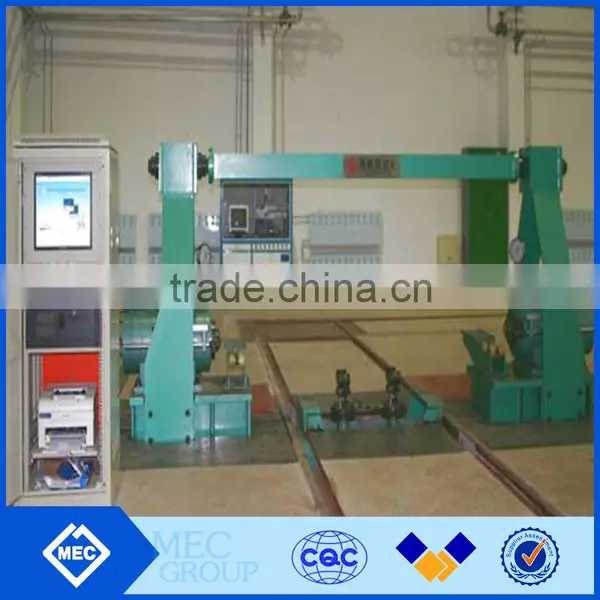

The bearing mounting is used to press bearings onto the wheelset of railway rolling stock.
- Two options of curve recording modes, one is time-pressure curve and the other is time-displacement curve.
- The hydraulic locking technology is adopted to guarantee non-moving of the wheelset during bearing mounting. And the height of lifter is adjustable for various types of wheelsets.
- Mounting performance shall be improved by using innovative technology such as two-end independent valve group and double pistons etc.
- Reasonable structure and advanced hydraulic technology have solved such problems as cracking and leaking etc. existing for traditional type press machine.
- The operation guide makes the bearing press machine much easier to be operated. The accurate rate of intellectually inflection point judging is 100%.
- The data collecting speed is high and accurate. The sensors can be automatically checked which shall reduce periodic checking procedure.
Main technical parameters:
1 | Mounting pressure: | 0 ~ 288.5 kN (0~29.4t) |
2 | Joint pressure: | 408.7 ~ 456.8 kN(41.7~46.6t) |
3 | Profile dimension of the machine: | 4500 ×770 ×1985mm |
4 | Weight of the machine: | 6500 kg Approx. |
5 | Dimension of control cabinet: | 1400 × 600 × 650mm |
6 | Weight of the hydraulic station: | 850 kg |
7 | Motor power of hydraulic station: | 11 kw |
8 | Total electrical power: | 13 kw |
