Specifications
ZW58-24kv /12kv Outdoor high voltage vacuun circuit breakeroutdoor fixed sealiing vacuum VCB
high performance
environmental.

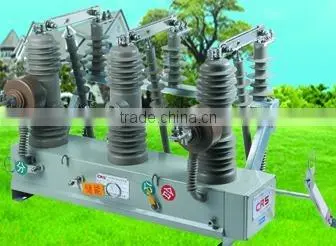

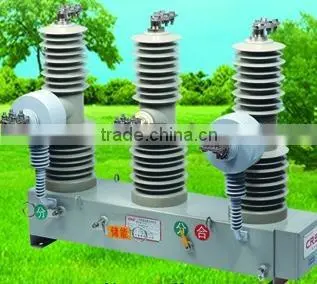

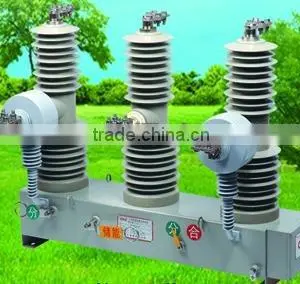

Outdoor high voltage vacuun circuit breaker 24kv&12kv
vacuum circuit breaker
Technical parameter:
Rated voltage: 24kv 12kv
Rated current : 1250A 630A 630A
Power frequency resisiting voltage: 50/65kv 42kv
Lightning impulse resisting voltage: 125kv 75kv
Rated short-circuit breaking current: 20ka 20/25ka
Rated short-circuit controlling current: 50ka 50/63ka
Rated machine stabling current (max): 20ka 50/63ka
4S heat-stabling current (max): 20ka 25ka
Times of rated short-circuit breaking current: 30times 30times
Mechanical life: 10000times 10000times
Automatic striking and grinding thickness: 2mm 2mm
Current seperated and rated: 5A 5A
Gross weight: 97kg 40~50kg
