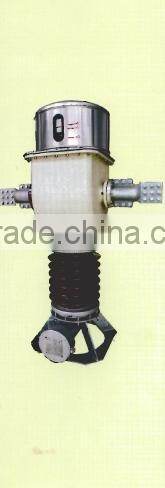

Current Transformer For Potection

Current Transformer For Potection thumbnail-1
Current Transformer For Potection photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LONGEM
Model Number:
LB5-66,LVB-35,LB6-110
Contact Supplier Request Quote Chat Now
Liaoning Mec Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name LONGEM
Model Number LB5-66,LVB-35,LB6-110
Usage Current
Phase Single
Coil Structure Toroidal
Coil Number Autotransformer

Specifications

Current tansformer
LB5-66,LVB-35,LB6-110
used for current ,electric energy measuring,
relay protection in electricity.

Current tansformerLB5-66,LVB-35,LB6-110 used for current ,electric energy measuring, and relay protection in  electricity system. it is oil paper insulated product, and composed by oil tank, active part, porcelain,oil conservator and bellows etc.





Purpose:



It is our outdoor, single phase and oil immersed top-head type current transformer, wihich is used for metering and relay protection of 35kv, 50 or 60HZ system.



Service Condition



Ambient temperature: -40~+40°C

Altitude: LVB(T)-35(W1,W2,W3) less than1000m

               LVB(T)-35GY(W1,W2,W3) less than 1000m

Environment Pollution Level: II, III, IV



System Condition



System Rated Voltage: 66kv

System Highest Voltage: 72.5kv

System Rated Frequency: 50Hz or 60 Hz

System Neutral Earthing Method: non-effectively earthed







Rated Voltage 66kv
Highest Voltage for Equipment 72.5kv
Rated Frequency 50 or 60HZ
Rated Transformation Ratio 2*25~2*1000/5 or 1A
Number of Secondary Windings 1~5
Accuracy of Measuring Winding 0.2,0.2S,0.5,0.5S
Accuracy of Protection Winding 5P or 10P
Rated Secondary Output 20~50VA
Accuracy Limite Factors 15,20,25,30
Instrument Security Factor <=5 or 10





Current Transformer For Potection
