chinese cheap small front end loader
cheap small tractor front end loader
Optional of ZL16 wheel loader:
Quick coupler, Pallet fork, wood grapple, 4 in 1 bucket
Grass cutter, grass grapple, pitchfork
Snow blower, snow blade, V snow blade, snow bucket
Dustpan bucket, mixing bucket, sand bucket, sweeper
Barrel clamp, bale clamp, grapple
Anti-roll cab, LED light, reverse image system
Features
1, The optimum on working device realized automatic bucket positioner and highefficiency because of time saving.
2, Transmission is designed and manufactured by our company, sturdy and durable, each gear matching ratio is reasonable, reduce the power consumption;
3, Load sensing full hydraulic steering, stable and reliable, Significant energy saving.
4, The bucket Hinge pin have dustproof apron, extended the service life of the pin shaft and lining sleeve.
cheap small tractor front end loader
Detail Specifications
Model |
ZL16 |
Overall Dimensions (mm) |
5140*1770*2630 |
Bucket width (mm) |
1750 |
Wheel base (mm) |
2070 |
Tread (mm) |
1340 |
Minimum ground clearance (mm) |
220 |
Total Quality (kg) |
3300 |
Rated Load (kg) |
1600 |
Rated Bucket Capacity (m3)(Paperback) |
0.4 |
Max.Dumping Height (mm) |
3200 |
Bucket lifting time (Paperback) (s) |
5 |
Total cycle time (Paperback) (s) |
9 |
Max.Speed(km/h) |
30 |
Engine Model |
ZH4100Q |
Rated Power(kw) |
44 |
Torque converter |
Mechanical fork shift |
Tire Type |
14/70-16 |
cheap small tractor front end loader

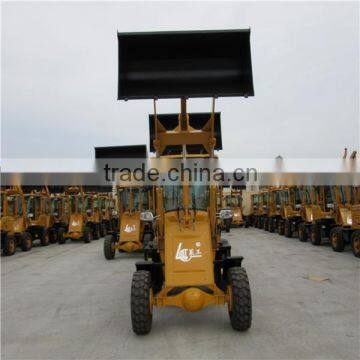

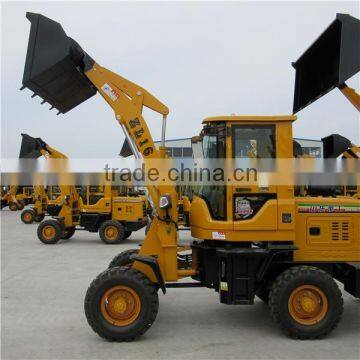

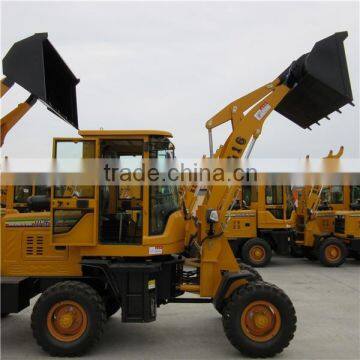

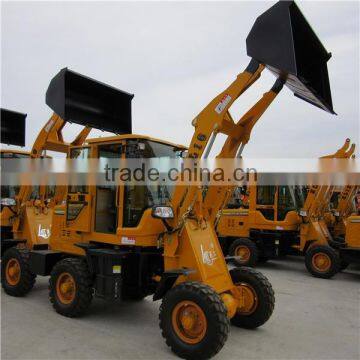

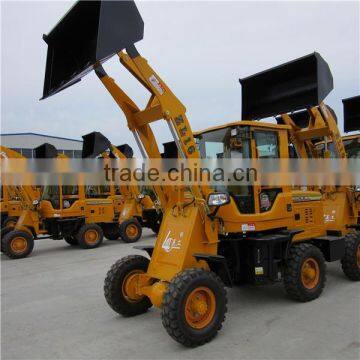

Detailed pictures
Tyres are engineering tires, tire cord fabric, bead, buffer layer, the tread of the four main parts.
strong load ability , adaptable to different environment, puncture resistant ability.
comfortable operating mechanism
The best possible products and best services provide!
LaiGong is making efforts to establish itself in more world market,
and to set up overseas organizations to better understand local needs
and provide more thorough and timely service.
Sales used wheel loader Zl16 approved GOST
1. Free technical support is provide;
2. Quality warranty 12 months we provide;
3. Engineers available to service machinery overseas;
Looking forward to cooperate with you!
