Packaging & Delivery
| Packaging Detail: | Injection Mold Tools with transparent plastic bag first,then place the bags into carton or according to your special request. |
| Delivery Detail: | 20-35 days or according to your special request. |
Specifications
Injection Mold Tools 1.ISO9001:2008 2.MOQ:1Sets for Plastic Injection Mold Design 3.Tolerance:+/-0.02mm 4.Cavity:1*4
Injection Mold Tools
Welcome to visit Yuyao Good plastic hardware co., ltd. | |
Details Description | |
Item Name |
Plastic Injection Mold Design |
Usage |
Household parts |
Core Business |

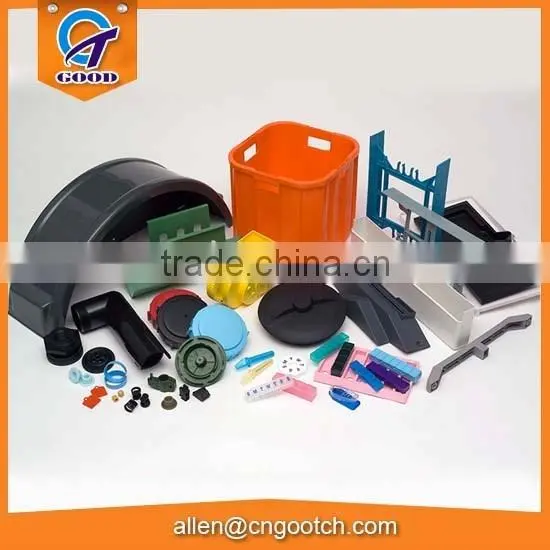

Plastic Injection mold ,Die casting ,Baby milk bottle and Plastic parts mass production. |
sManin Machine |
CNC, EDM, grinding machine, injection machine(from 80ton to 500ton) |
Maximum Part size |
2000mm*1500mm |
Maximum Part size |
1200mm*1200mm |
Mold build capability |
Upto to 20Ton |
Clamp forces |
30Ton~1,800Ton |
Certificate |
ISO9001:2008 |
Gate type |
Cold runner/YUDO, Moldmaster, Synventive, INCOE, Husky hot runner |
Feature |
With inner teeth |
Appearance finished |
EDM, High polish; Mirror polishing, Texture/Graining |
Mould Life |
300,000 shots,1,000,000 shots |
Hardness of steel |
18~56 HRC |
Package |
Wooden Box, Carton |
Delivery term |
FOB Xiamen |
Should you have any questions, pls do not hesitate to contact me. FREE SAMPLES will be sent for your evaluation! | |
| |
| |
| |
| |
| |
| |
Name |
Description |
Mould Material |
718,NAK80,45#,H13,LKM818H,YK30,etc |
Mould Base |
LKM,HASCO,etc |
Plastic material |
PP,PS,PE,PU,PA6,ABS,PMMA,POM,etc |
Cavity |
Sigle/Multi Cavity |
Runner Hot/Cold |
Hot/Cold |
Design Software |
UG,PROE,CAD,CAXA,etc |
Mould Life |
100,000-1,000,000 shots |
Delivery time |
25 days to 60 days |
Specification |
according to customer's request |
Main Technique Parameters of plastic injectino molding | |
Cavity/Core |
718H, P20, NAK80, 2316,2738,Din2344,H13 and available |
Product Material |
ABS, PC, PP, PVC, POM, PMMA, PS, PE, PET, Rubber, Silicone, PA, PBT, PEI, etc. |
Base |
LKM or by requested |
Structure |
Double color injection mould, Solid Mould, Insert Mould, Mould with Slide, Mould with Lifter |
Runner System |
Hot runner, Cold runner |
Cavity |
Single cavity, multi cavity by requested |
Finish |
Corrosion word, Mirror finish, Brushed |
Longevity |
0.5-1 million shots |
Mould standard |
HASCO, DME, MISUMI, or by requested etc. |
Software |
CAD, Pro-E, UG, etc |
Tolerance |
± 0.05mm |
Design Time |
3-7days |
Sample time |
3-7days |
Main Technique |
Milling, Grinding, EDM, Wire-cutting, Engraving, CNC, and 2.5 Dimension test, etc. |
Production time |
2-7 weeks, depends on mould structure |
Packing |
Wooden case, PE, or by requested |
Q. When can I get the price of the plastic Injection Mold Tools ?
A. We usually quote within 24 hours after we got your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
Q. How can I get the accurate price of the plastic injection molding?
A.There are some basic specs we need to know for price calculate, that are: 3D drawings in STP,IGS,X-T format are avaialble, Please suggest us your quantity too.
Q. Do you accept the OEM plastic injection molding?
A. OEM is welcome. We can custom the good according to your design.
Q. What is the shipping ?
A:By express(FedEx, UPS, DHL, TNT, EMS, etc...),By Air,by shipping.
Q. How do i pay for the order?
A.The common payments are T/T(Telegraphic Transfer),western union ,
Q. I have an idea for a new product, but don't know if it can be manufactured. Can you help?
A. Yes! We are always happy to work with potential customers to evaluate the technical feasibility of your idea or design and we can advise on materials, tooling and likely set-up costs.
Q. What are the advantages to having my parts manufactured locally?
A. Vertex can offer quick reaction times to any changes in specification, batch size or material. We can ship small or large quantities anywhere in Europe overnight to accommodate unforeseen changes in demand.
Q. My components have already been developed on CAD. Can you use the drawings?
A. Yes! DWG, DXF, IGES, Solidworks and Rhino files can all be used to generate quotes, models and mould tools - this can save time and money in producing your parts.
Q. Can I test my idea/component before committing to mould tool manufacture?
A. Yes, we can use CAD drawings to make models for design and functional evaluations.
Q. What type of plastic is best for my design/component?
A. Materials selection depends on the application of your design and the environment in which it will function. We will be happy to discuss the alternatives and suggest the best material.
Q. What type of mould tool do I need?
A. Mould tools can be either single impression (one part at a time) or multi-impression (2,4, 8 or 16 parts at a time). Single impression tools are generally used for small quantities, up to 10,000 parts per year whereas multi-impression tools are for larger quantities. We can look at your projected annual requirements and recommend which would be best for you.
Q.Ok, I've decided to go ahead with my project. How long will it take to get my parts?
A. It can take 3-8 weeks to have the mould tool manufactured depending on the part's complexity and the number of impressions (single or multi). After we have received final approval by you of the new tool, you can expect delivery of parts within 2-3 days.
