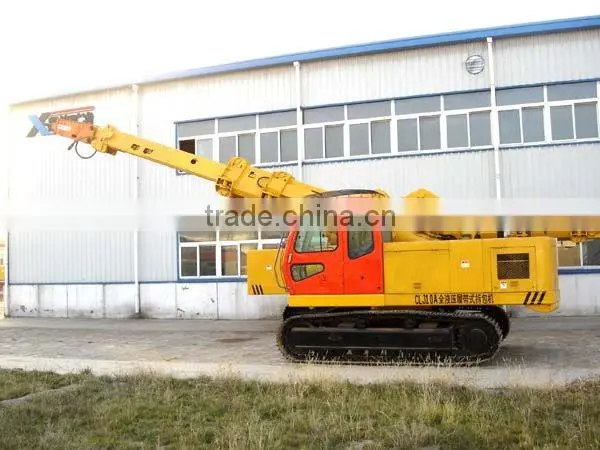

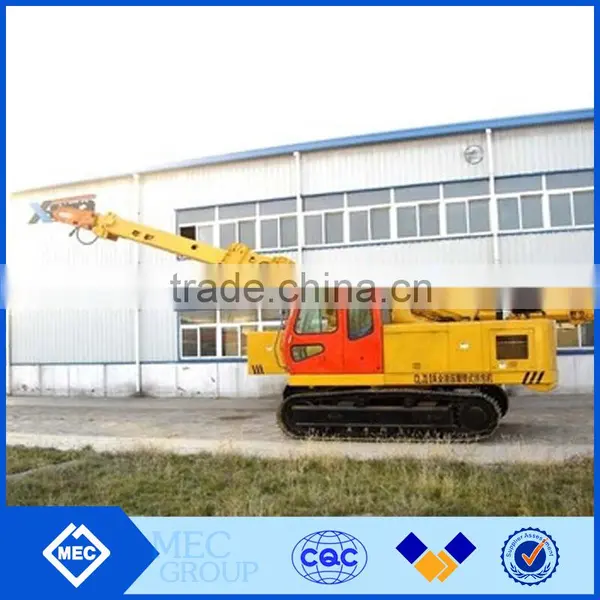

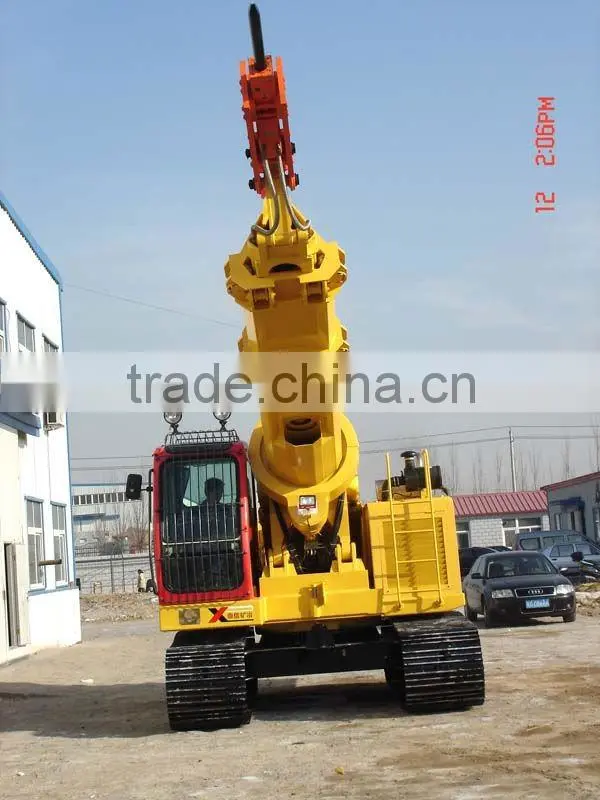

CLJ10A Demolition Furnace Machine is based on the needs of the metallurgical industry, combines the features of similar products at home and abroad, choose reliable quality components of imports or domestic, developed and achieved. Mainly applied to replace the steel making furnace of the steel mill or fireproof liner of huge steel bundle. With hydraulic hammer, single hook and reamer(reamer is not recommended for this model)etc., The machine could also be used for replacing fireproof liner or breath freely bricks, extending steel making furnace tapping exit. Besides it is also can be used for mining, crushing, removal for old facilities operation.
Specification
Measurement 7800*2800*3300(length*width*height)
Weight about 18t
Engine model 6BTA5.9-C175
Power/Rotate speed 128kw/2100rpm
Hydraulic hammer model MB80M(provided as demand)
Strike frequency 450~950 times/minutes
Hydraulic system type Double pumps with straight axle, constant power +Assist pump for heat scatter
Anticipative discharge method Direction changing valve with anticipative and electro magic
System pressure 28Mpa
Operating method Anticipative hydraulic control
Upper car turning speed 0~8rpm
Big arm turning speed 0~10rpm
Moving speed 0~3.0Km/h
Climbing limit 14°
Big arm turning limit Up 28° Down 55°
Main rolling arm turning limit ±360°
Upper car turning limit ±360°
Hydraulic hammer turning limit 0°-- -90°
Flexible arm journey 3000mm
Grounding ratio pressure ≤0.045Mpa
