Specifications

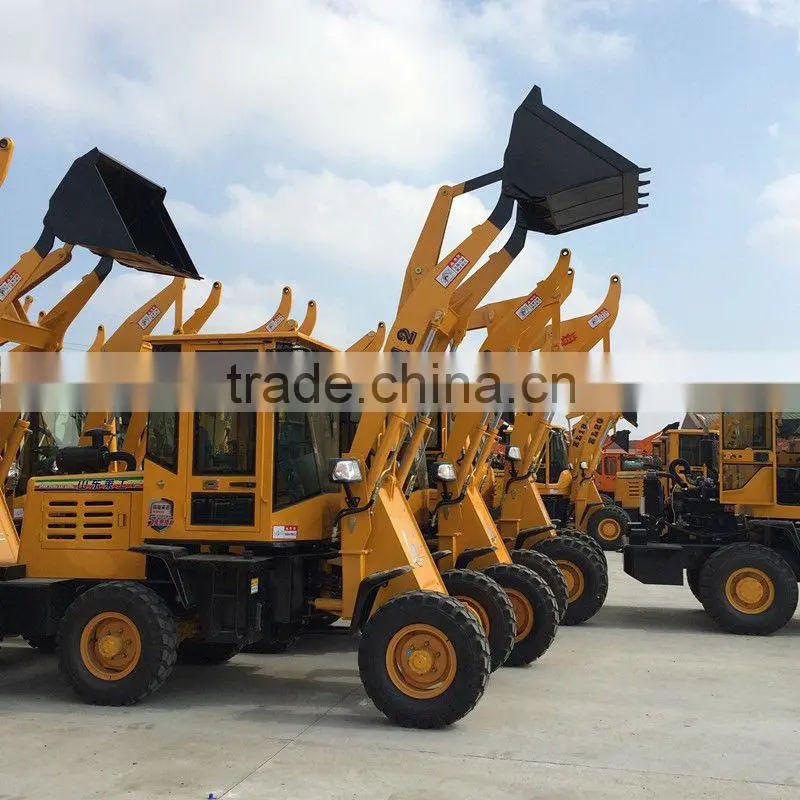

wheel loader 9161.Rated load weight: 1.2ton
2.Rated bucket capacity:0.3cube
3.Dimension5000*1620*2550
construction articulated wheel loader
1. Through computer optimization design has high automatic put it flat function, operation efficiency increased significantly;
2. Transmission of the company design manufacture, durable, each gear ratio reasonable matching, reduce the power consumption;
3. Load sensing hydraulic priority to, stable and reliable, energy conservation and significant;
4. The bucket pin shaft have rustproof apron, extended the pin shaft and the service life of the lining sleeve.
1. More information:
1. Versatile, reliable, excellent in small space;
2. reduce the power consumption;
3. Simple structure and reliable performance;
4. Can choose quick hitch, Make the change of different attachments easier;
5. luxury cabin, widening horizon; with adjustable seat, radio, and adjust independent panel, can choose heater, air-condition and so on;
6. Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
2. Parameter

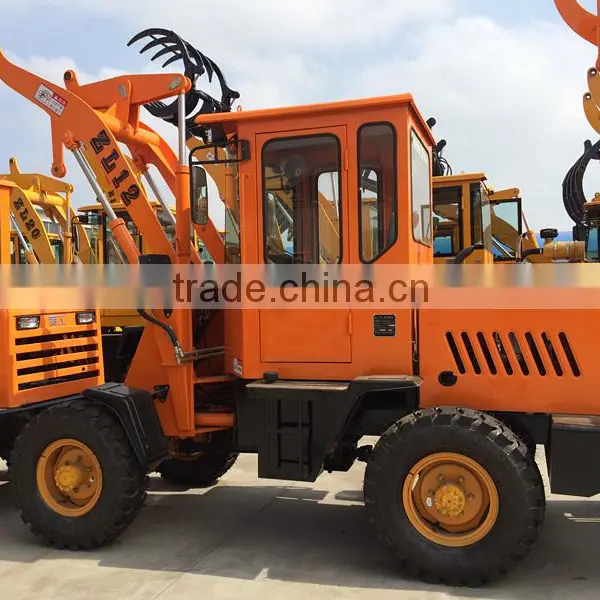

| Model: | ZL12 |
| Rated Loading Capacity | 1.2ton |
| Total operating weight(kg) | 3200 |
| Rated Bucket Capacity(m3) | 0.3m3 |
| Max.Gradeability | 30 |
| Dumping Height(mm) | 2900 |
| Dumping Reach(mm) | 820 |
| Total Cycle Time(s) | 9 |
| Overall Dimemsions(mm) | 5000x1620x2550 |
| maximum breakout force(KN) | 32 |
| Engine Model | 2102 |
| Rated Power(kw) | 26kw |
| Rated Speed(rpm) | 2400 |
| Gear box | Mechanical shift |
| Torque converter | Stick Shift |
| Gear Shift | 3F2R |
| Max.Speed(km/h) | 25 |
| Model of Axle | Isuzu Axle |
| Wheel Base(mm) | 2100 |
| System Working Pressure(Mpa) | 16 |
| Type Specification | 8.25-16 |
| Service Brake | Expansion-shoe Brake on 4 wheels |
| Optional | log grab,hay grab,bale grab,snow blade,barrel loader,pallet fork,bucket loader |
3.Application and the Usage of Wheel Loader
Loaders are used mainly for uploading materials into trucks, laying pipe, clearing rubble, and digging.Their deep bucket can usually store about 3-6 cubic meters of earth. The front loader's bucket capacity is much bigger than a bucket capacity of a backhoe loader. Loaders are not classified as earthmoving machinery, as their primary purpose is other than earthmoving.
4. Features and Performance of wheel loader in LaiGong
4.1 Easy to own
Low cost of ownership represents overall value for money. High bucket break out force results in increased productivity. Tried and tested components from Cummins, Kawasaki and ZF deliver reliable performance.
4.2 Easy to operate
Spacious and ergonomically designed cab ensures excellent operator comfort during long working hours 360-degree clear visibility, which is supported by a rear view camera, provides enhanced health and safety on busy job sites. Boom kick-out and return-to-carry feature ensures efficient loading.
4.3 Easy to maintain
Rugged construction and reinforced parts result in less damage and machine downtime. Easy maintenance access and dedicated European dealer support network ensure maximum uptime Powerful Stage IIIA and Stage IIIB-compliant engines deliver excellent fuel efficiency.
5. Detail Photos
For thr packaging and shipping, generally, the 20GP or the 40HQ container can be used for the ZL20 loader.
A 15-month long period of warranty and fully technical support can be provided by LaiGong Group for the pre-sale and after-sale.
LaiGong
Workshop
Factory
1.What engines could be available for the wheel loader?
A:Generally, Cummins, Weichai, and Quanchai can be applied for Beston Wheel loader.
2. What can be used for the terms of payment?
A:Usually, T/T and L/C would be taken.
3. How about the after-sale service.?
A:There is a long period as 15 months of warranty for Beston's clients, and fully technical support by engineers.
